Industrial Motherboards

Industrial Embedded Motherboard

Industrial Motherboards

Industrial Embedded Motherboard

1.8" SBC

Why 1.8” Single Board Computer? The 1.8” Single Board Computer (SBC) is a motherboard in an ultra-small and lightweight Pi size. DFI’s 1.8” SBC series is embedded with processors or APU in the x86 architecture to deliver robust power at a smaller footprint for Intelligent Edge Computing. 1.8” Single Board Computer in Edge AI In the upcoming IoT era, edge applications will be even more ubiquitous and complex. This trend requires the edge devices to be equipped with better computing performance while reducing the size. To fulfill the upcoming trend, DFI’s 1.8” SBC series is tailored to simultaneously making edge applications smaller and providing high performance for data computing and graphic processing. Industrial-grade 1.8” Single Board Computer DFI’s 1.8” SBC, featuring the x86 architecture at the Pi size, wins a name as “Industrial Pi”. Based on the industrial-grade Intel processors and AMD Ryzen APU, the Industrial Pi not only has the specification complying with industrial requirements, but also offers the product life cycle up to 15 years to ensure device operation and maintenance with seamless drivers, software, and BIOS update. 1.8” Single Board Computer for Industrial Applications The high-performance computing capability of DFI’s 1.8” SBC “Industrial Pi” is tailored for edge applications to be deployed in constraint spaces for long-term use, including: Industrial Automation: Robotic Arms/ Automatic Mobile Robot (AMR)/ Facial Recognition/ Object Detection Security: Surveillance, Traffic Flow Analysis Digital Signage

2.5" Pico-ITX

The Pico ITX, a type of single board computer (SBC) only measuring a size of 100 mm x 72 mm features compact and fanless designs usually targeted in space-limited embedded applications such as site management and IoT gateway. DFI provides Pico-ITX motherboards that support low power consumption and wide-temperature endurance for different kinds of industrial-grade embedded solutions such as factory automation and rugged conditions.

3.5" SBC

DFI’s 3.5" embedded SBC board (146 x 102 mm) is featured with rich I/O, and supports various internet connections. Extended operating temperature and wide input voltage range are industrial features that can meet most of industrial grade applications.

4" SBC

DFI’s 4" SBC board has a size of 165mm x 115mm. This proprietary form factor with rich I/O expansion capability and slim compact designs can serve the customer whose equipment is in a variety of critical applications.

PICMG 1.3

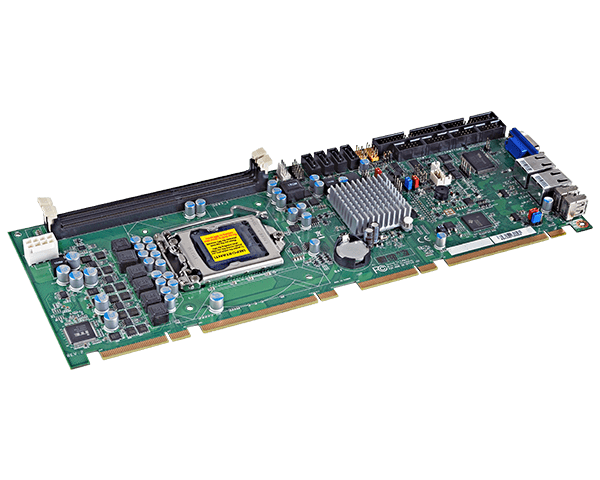

DFI's PICMG 1.3 boards are built with versatile I/O ports and plenty of backplanes to achieve flexibility and expansion capability. With comprehensive backplane and high performance boards, DFI can offer a great solution for expandable industrial application.

Mini-ITX

Advantages of Mini-ITX Motherboard The Mini ITX motherboard is currently a popular form factor in numerous industries for its small sized motherboard (170mm x 170mm) that provides PCIe x16 or MXM slots for GPU card expansion. The mini-ITX motherboards with the rich I/O ports and interfaces that can swiftly fulfill diverse applications required by a wide range of industries, further, this board supports diverse CPU platforms such as Intel, AMD, strikes a perfect balance of functionality and performance. Why DFI’s Mini-ITX Motherboard? DFI's embedded Mini-ITX motherboard has a small footprint (170mm x 170mm) and is designed with a variety of I/O connectors and flexible DC/ATX power input. For low power solutions, passive cooling is even available for users to enjoy an extended device lifespan. The compact and highly integrated Mini-ITX boards deliver high connectivity and scalability, and are always regarded as the ideal solution for AGV/AMR, KIOSK, digital signage, and gaming. What Makes DFI Mini-ITX Motherboard Stand Out? MXM Module Support: Leverage AI for Deep Learning The MXM module provides high-speed computing performance through a discrete GPU while reducing the size of the unit.  Featured Mini ITX Motherboards: CS181-H310 and CS181-Q370 Spectacular Clarity and Sensational Visuals with Four Displays With up to 4 DP++ independent outputs at 4K 60Hz, DFI’s Mini-ITX motherboard presents each detail exquisitely for high resolution applications like stadium boards, billboards, and other large digital signage applications. Featured Mini ITX Motherboards: RNO171 Multiple Specifications to Meet the Demand Faster  The comprehensive and diverse specifications of DFI’s ITX motherboards have been winning users' preference on solution integration. Developers can easily find a cost-effective board with specs corresponding to the target developing solution.

microATX

What Is a Micro ATX Motherboard? MicroATX motherboard referred to as mATX motherboard, is a type of industrial motherboard measuring up to 244mm x 244mm (9.6" × 9.6"). The Advantages of DFI’s Micro ATX Motherboards Compared to ATX motherboards, DFI’s MicroATX motherboards are supported with versatile CPU sockets including the latest Intel, and AMD processors, and diverse slots such as Wifi, and DDR4 are highly used for several industries from industrial automation and gaming which require high-performance computing and multi-tasking capabilities. In addition, the micro ATX motherboard is completed to be used for displaying high-resolution medical images efficiently, and sufficient ports/interfaces on the motherboard are a must to be able to connect with the required sensors and devices. DFI provides microATX boards series with several advantages as below: High-Performance Computing DFI’s completed product series with Intel 8th gen processors have the capability of delivering advanced 4K video experiences supported with a resolution higher than 1080p and high-quality UHD streaming media. It is suited for applications such as digital signage, digital security, and surveillance. It is able to be perfectly fitted into different applications. Cost-Efficiency It's worth thinking about whether or not you need all the extra features that come with a full-size ATX motherboard. Unless you're planning to load up on PCIe add-in cards, you'll likely find that a micro ATX motherboard will have everything you need to complete your build while also costing a good deal less than an ATX board. Versatile I/O Interfaces and Sockets Our product series with 8th gen processors adopt the newest technology USB Type-C and USB 3.1 Gen2 to benefit data transfer rates of up to 10 Gbps. It’s two times faster than USB 3.0. This enables rich I/Os and multiple expansions, making it an ideal solution for machine vision and industrial automation applications. Applications of DFI’s microATX Motherboards The high-performance computing compatibility of DFI’s micro-ATX motherboards can be applied in multiple industries that are suited ideally for cost-sensitive applications such as: Gaming DFI's micro ATX board series caters to the needs of demanding gamers in the market by offering high-performance computing. These boards come equipped with multiple 4K video outputs, various high-speed USB ports, and flexible digital input/output options that enable control of buttons, lights, switches, and other peripherals. With these advanced features, DFI's micro ATX motherboard series provides gamers with an exceptional computing experience. Medical DFI has developed a range of embedded products to fit the diverse requirements of medical equipment including point-of-care terminals, patient monitoring systems, medical imaging nursing carts, and portable diagnostic devices. Providing flexible, state-of-the-art embedded solutions for these devices is at the core of our business. Industrial Automation DFI’s complete embedded products are specially designed with industrial-grade components and 100% Japanese solid capacitors to ensure long product life cycles and are capable of working in wide temperature ranges under harsh factory conditions. As you develop solutions to reap the benefits of automated manufacturing, DFI is an ideal partner to address all of your embedded processing system requirements. Surveillance DFI's micro ATX products not only provide sufficient computing performance and PCIe slots to process large amounts of information in real-time, but it is also compatible with the legacy PCI slots to protect customers' past investments. It also provides riser cards that meet the mechanical space for customer needs, eliminating the cost of customizing brackets to ensure seamless 24/7 surveillance of facilities.

ATX

ATX Motherboard - The Backbone of High Performance Computing The ATX motherboards have been occupying the top place it was deployed in automation, especially for high performance computing-required solutions. Besides the robust processors, the abundant expansions for memory and GPU also help boost the quality and speed in graphics analysis, which is exactly what the applications with heavy workloads, like defect inspection, medical imaging, and smart diagnosis, are looking for. Features of DFI’s ATX Motherboards DFI’s ATX (measuring 305mm x 244mm) embedded motherboards feature a high computing capability, rich I/O connectivity, high integration, and great expandability for graphics cards, motion control cards, and memory. The robust processors and add-on powerful GPU make it an ideal solution for industrial automation and medical imaging, like machine vision, MRI, and CT imaging that require reliability & add-on-card expansibility. Application Types for DFI’s ATX Motherboards DFI’s Server-Grade ATX Motherboards for AOI & Medical Imaging Image quality and analysis are critical for AOI to precisely detect the defects of products in semiconductor fabrication plants; or for CT or MRI images with high clarity to help doctors diagnose accurately. DFI’s server-grade ATX motherboards are tailored for applications that require high precision with no errors.  Featured products: SO630 ICX610-C621A PR611-C621 DFI’s ATX Motherboards for Industrial Automation Equipped with robust scalability in data and graphics compute performance, ATX motherboard empowers a wide range of industrial automation solutions, such as material feeding, component production, and functional testing, and inspection for quality assurance to ensure both the productivity and quality of the production lines. Featured products: CMS630-W480E/Q470E CMS631-C246 Legacy Interfaces Support with DFI’s ATX Motherboards DFI’s ATX Motherboards with PCI Legacy Support The PCI interface was widely used in industrial equipment a couple of decades ago. To offer a cost-effective computer upgrade or repair plan in the equipment, DFI designs the ATX motherboards with the legacy PCI interface and makes the upgrade process faster and more seamlessly. Featured products: CMS631-Q470E/H420E SO630 DFI’s ATX Motherboards with ISA Support For legacy peripherals or devices with the ISA interface (eg. modem or sound card), DFI’s ATX motherboards also offer ISA slots to update or replace the end-of-life compute center at a cost-effective integration. DFI has also developed proprietary software, BIOS, and drivers to support the Windows 7 OS widely-used by ISA peripherals or devices. Featured products: CS620-H310

EATX

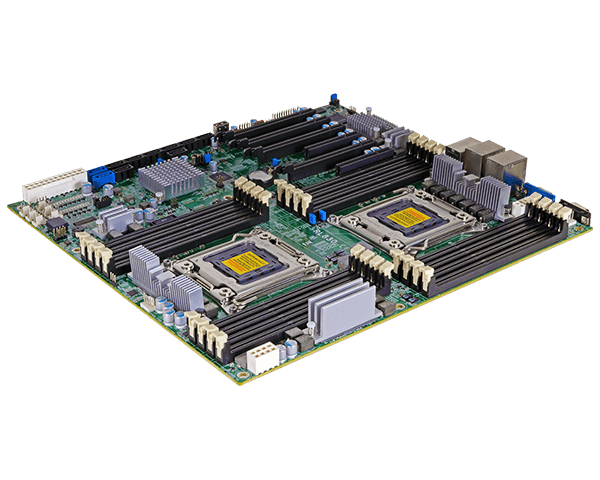

DFI’s extended ATX-motherboard (330mm x 305mm) is the industrial-grade server board that enables superior computing performance with high bandwidth interfaces built for embedded applications where highest-level performance is required.

Peripherals

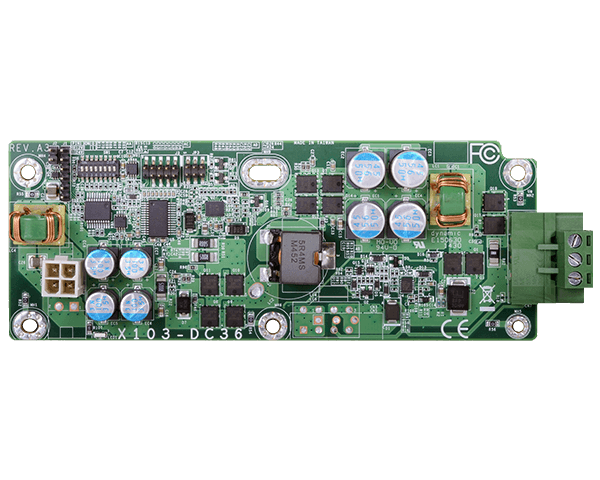

DFI provides industrial peripherals that include riser cards, DC/DC converters, and proprietary expansion modules to add availability, scalability, and flexibility to customers’ solutions. From standard to custom designed products that cover a wide selection of expansion modules, DC/DC converters, and multiple riser cards, it is able to satisfy a full range of industrial requirements.

Single Board Computer & Industrial Motherboards

Industrial Motherboards Drive Automation

Industrial Motherboards are specially designed to perform a specific function for the long term, usually belonging to part of a larger complete device. As the manufacturing process relies more on machine and robot assistance, industrial motherboards are powering more and more devices ubiquitously, not only for getting automatic but also to endow machines with learning capabilities to work smarter. Some of these applications are installed indoors, while others are deployed outdoors or even in motion, so besides reliable operation and long lifespan, industrial motherboards are usually required to have the ability to endure harsh environments, which is not possible for consumer-grade computers.

Why DFI’s Industrial Motherboards?

In industry 4.0, smart devices and equipment pursue not only stability and durability, but also innovation and quick service to concretize cutting-edge concepts.  DFI, as a reliable support for industrial automation, digital signage, healthcare, retail, and even military solutions, benefits our partners through:

100% In-house Design and Manufacturing

Guaranteed high quality and reliable products, professional technical support, and excellent global service.

Small Form Factor

Innovative small but powerful industrial motherboards for edge AI applications, eg. industrial Pi, AMD Ryzen™ Pi, industrial PoE Pi, downsized 2.5” computer vision motherboards, and auto warm-up AI vision motherboards.

Quick OEM/ODM Production

DFI’s reliable custom service with experience of over 40 years offers both complete OEM/ODM or deviation products with slight spec changes. This accelerates the process from design to production and manufactures products in high quality, customer-specific, and even in small quantity to supply and drive diverse innovative applications around the world.

DFI’s Industrial Motherboards for Industrial Automation, Smart City, Transportation, and Healthcare

DFI has a comprehensive product portfolio of industrial motherboards in a variety of form factors from the Pi-sized 1.8” SBC to the server-grade dual-processor EATX motherboards. By leveraging the compute engine in driving automatic solutions and spanning the following industries:

Industrial Automation:

Automatic Guided Vehicle (AGV), Automatic Mobile Robot (AMR), Overhead Hoist Transfer (OHT), industrial robots, Selective Compliance Assembly Robot Arm (SCARA), material handling system, food sorting system, Automatic Optical Inspection (AOI), machine vision, and digital signage

Smart City:

Facial recognition, last-mile-delivery robot, ATM system, parcel locker station, meeting room system, aircraft calculator, broadcasting system, digital signage, networking system, and building management system

Transportation:

Maritime monitoring, highway surveillance, airport digital signage, and AI workstation

Healthcare:

MRI, CT, surgical imaging, ultrasonic medical machine, disinfection robot, medical video recorder, patient monitor, X-ray imaging, medicine sorting, and drug barcode scanner

DFI’s Industrial Motherboards and Proprietary Expansion Modules

To fulfill diverse applications, DFI provides a wide range of expansion modules, from the latest M.2 interface to the Mini PCIe and LPC ones, to quickly integrate the required interfaces like LAN, COM, USB, SIM, SATA and M.2 on the industrial motherboards.

It is also noteworthy that the CAN Bus extension module for vehicle solutions and gaming I/O board for casino gaming solutions are also available for DFI to offer quick custom and value-added services across industries.

Expansion Modules: DFI's Peripherals
