EC700-BT｜Intel®｜Industrial Computers｜DFI

EC700-BT
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ultra Compact Fanless PC EC700-BT
  • Intel Atom® Processor E3800
  • 4GB/2GB DDR3L ECC onboard
  • 1x 2.5" SATA drive bay
  • Supports Wi-Fi, 3G/4G, and GPRS application
  • Error Correcting Code (ECC) delivers a high level of data integrity, reliability, and system uptime
  • 15-Year CPU Life Cycle Support Until Q1' 28 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Low Power Consumption
Wide-temp: -20~60°C
Wide Voltage: 9~36V DC-in
Compact Size
ECC Memory
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KC Certification
CCC Certification
UL-US Certification
BIS Certificaiton
EC700-BT Embedded Solution Powered by:
BT253

BT253

BT253 4" SBC

4" SBC, Intel Atom® Processor E3800, 2GB/4GB DDR3L, 3 Mini PCIe, 1 VGA, 1 LVDS, 1 HDMI

EC700-BT Related Tags

#BIS Certification#Intel#Mini PCIe#Compact Size#Windows#Linux#HDMI#DVI-I#VGA#DDR3L#Low Power Consumption#RoHS Certification#UL Certification#CE Certification#FCC Certification#KC Certification#CCC Certification#UL-US Certification#AGV#SCARA
EC700-BT Fanless Embedded System
EC700-BT Fanless Embedded System
EC700-BT Fanless Embedded System

Related Products:

Select All - Clear
System
Processor
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel Atom® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Intel Atom® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W
22nm Process Technology
Memory
4GB/2GB ECC Memory Onboard (-E45/-E25)
4GB/2GB non-ECC Memory Onboard (-J19/-N28)
Single Channel DDR3L1333MHz (-E45/-J19/-N28)
Single Channel DDR3L1066MHz (-E25)
Graphics
Controller
Intel® HD Graphics
Display
1 x VGA + 1 x HDMI or
1 x DVI-I
HDMI, DVI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Dual Displays
1 VGA + 1 HDMI
1 DVI-I
Storage
External/Internal
1 x 2.5"" SATA 2.0 Drive Bay
4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS)
1 x Full-size Mini PCIe (SATA)
1 x Half-size Mini PCIe (PCIe/USB/LPC)
1 x SIM
1 x microSD (available upon request)
Ethernet
Controller
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
Indicators
1 x HDD LED
1 x Status LED

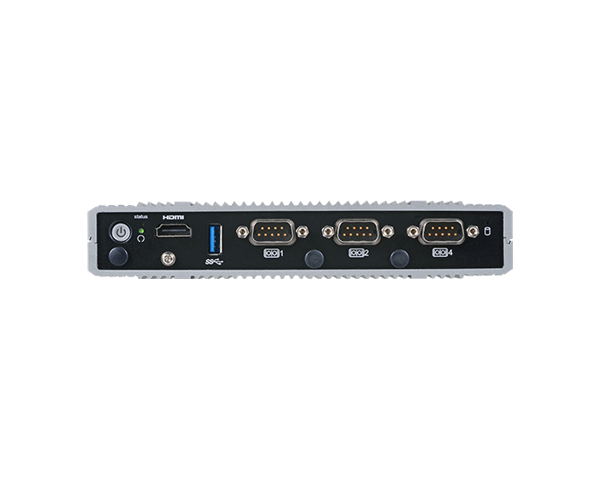

Front I/O
Serial
3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
USB
1 x USB 3.0 (type A)
Display
1 x HDMI
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
3 x Wi-Fi Module Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS232/422/485 (DB-9)
USB
4 x USB 2.0 (type A)
Display
1 x VGA (DB-15) or 1 x DVI-I
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~36V
Connector
DC Jack
OS Support
OS Support
Windows 7, WES 7, Windows 8, WES 8, Windows 8.1
Linux (Distribution available upon request)
Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
Operating Temperature
E3845/E3825: -20°C~60°C (SSD/mSATA), 0°C~50°C (HDD)
J1900/N2807: 0°C~60°C (SSD/mSATA), 0°C~50°C (HDD)
Storage Temperature
-20°C~85°C
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA/DIN Rail mount
Dimensions (W x H x D)
180mm x 33mm x 121.2mm (W x H x D)
Weight
800 g
Standards and Certifications
Shock
Half Sine Wave 15G, 11ms, 3 Shock Per Axis (SSD/mSATA)
Half Sine Wave 3G, 11ms, 3 Shock Per Axis (HDD)
Vibration
IEC68-2-64 (3G) (SSD/mSATA)
IEC68-2-64 (1G) (HDD)
Certifications
CE, FCC Class B, RoHS, UL, CCC, KC, BIS
Packing List
Packing List
1 EC700-BT system unit
Mounting screws for SATA drive
Mounting screws for Mini PCIe module
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC700-BT4051-E454     Part Number :
     750-EC7000-700G     Description :
    Fanless, Intel Atom E3845, 2 LAN, 1 HDMI, 1 VGA, 4 COM, 5 USB, 4GB DDR3L onboard, TPM, RoHS
  • Model Name :
    EC700-BT4051-J194     Part Number :
     750-EC7000-D00G     Description :
    Fanless, Intel Celeron J1900, 2 LAN, 1 HDMI, 1 VGA, 4 COM, 5 USB, 4GB DDR3L onboard, TPM, RoHS
  • Model Name :
    EC700-BT4051-N282     Part Number :
     750-EC7000-C00G     Description :
    Fanless, Intel Celeron N2807, 2 LAN, 1 HDMI, 1 VGA, 4 COM, 5 USB, 2GB DDR3L onboard, no TPM support, RoHS
  • Model Name :
    EC700-BT4051-E252     Part Number :
     750-EC7000-A00G     Description :
    Fanless, Intel Atom E3825, 2 LAN, 1 HDMI, 1 VGA, 4 COM, 5 USB, 2GB DDR3L onboard, TPM, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    500GB HDD     Part Number :
     785-H25500G     Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    320GB HDD     Part Number :
     785-H25320G     Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    1TB SSD     Part Number :
     785-S251TBG     Description :
    2.5" SATA SSD, 1TB MLC, RoHS
  • Item Name :
    512GB SSD     Part Number :
     785-S25512G     Description :
    2.5" SATA SSD, 512GB MLC, RoHS
  • Item Name :
    256GB SSD     Part Number :
     785-S25256G     Description :
    2.5" SATA SSD, 256GB MLC, RoHS
  • Item Name :
    128GB SSD     Part Number :
     785-S25128G     Description :
    2.5" SATA SSD, 128GB MLC, RoHS
  • Item Name :
    64GB SSD     Part Number :
     785-S25064G     Description :
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    480GB SSD     Part Number :
     635-604802-100G     Description :
    2.5" Intel SSD SC2BW480H601, 480GB, RoHS
  • Item Name :
    128GB mSATA     Part Number :
     785-MS128GMF     Description :
    mSATA Card, 128GB MLC, RoHS
  • Item Name :
    64GB mSATA     Part Number :
     785-MS64GMF     Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA     Part Number :
     785-MS32GMF     Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA     Part Number :
     785-MS16GMF     Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA     Part Number :
     785-MS08GMF     Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    4GB mSATA     Part Number :
     785-MS04GMF     Description :
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G     Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    3G + GPS     Part Number :
     612-110040-600G     Description :
    3G + GPS Kit, RoHS
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    60W Power Adapter     Part Number :
     671-106012-000G
    671-106013-000G
    671-106011-000G     Description :
    60W, 12V/5A, Level 6, RoHS
    60W, 12V/5A (-30 to 70°C), Level 6, RoHS
    60W, 19V/3.15A, Level 6, RoHS
  • Item Name :
    Wall Mount     Part Number :
     761-EC8000-000G     Description :
    EC700/800 Wall Mount Kit, RoHS
  • Item Name :
    VESA Mount     Part Number :
     761-EC7000-100G     Description :
    EC700 VESA Mount Kit, RoHS
  • Item Name :
    DIN Rail Mount     Part Number :
     761-EC8000-200G     Description :
    EC700/800 DIN Rail Mount Kit, RoHS
  • Item Name :
    DC Cord     Part Number :
     A81-004031-007G     Description :
    UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
