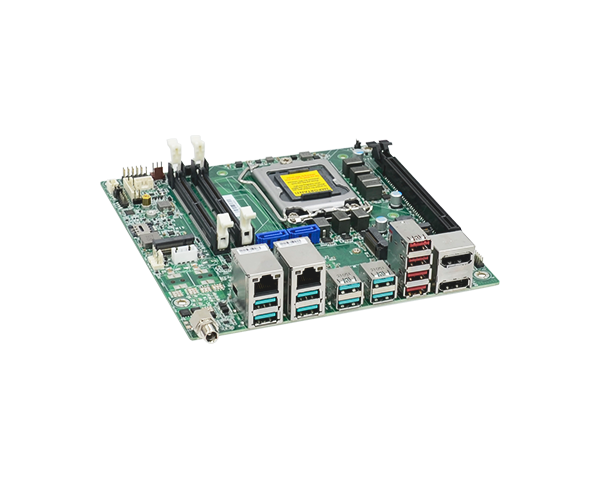

CMS171/CMS173｜Intel®｜工业级主机板｜友通资讯 DFI

10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 65W
Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W (ECC support on W480E SKU only)
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on W480E SKU only)
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Not support on W480E SKU)

Intel® W480E/Q470E Chipset

Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2933MHz (ECC supported by W480E only)

AMI SPI 256Mbit

Intel® UHD Graphics 630 (only Pentium G5400/Celeron G4900 support 610 )

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

2 x DP++
DP: resolution up to 4096 x 2106 @ 60Hz

2 x DP++

1 x PCIe x16 (Gen 3) (x8 signal)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) for WiFi6
1 x M.2 2280 M key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support) for SSD
1 x M.2 3042/3052 B key (PCIe/USB3.0) for 4G LTE/5G with SIM holder

Realtek ALC888

1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
1 x Intel® I211AT PCIe (10/100/1000Mbps)

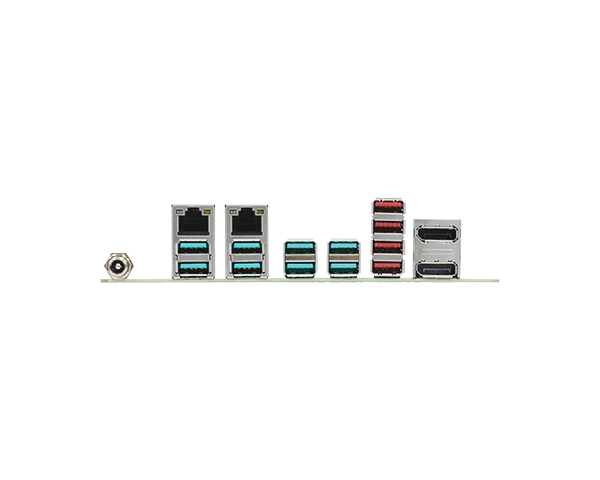

2 x GbE (RJ-45)

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

8 x USB 3.2 Gen2
4 x USB 3.2

2 x DP++

1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)

1 x Front Audio Header

2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
RAID 0/1

1 x 8-bit DIO

1 x LPC

1 x SMBus

System Reset, Programmable via Software from 1 to 255 Seconds

Infineon TPM1.2/2.0 (optional)

Single 12V +/-10% DC (CMS171)
Wide Range 15~36V (CMS173)

DC-in Jack

TBD

CR2032 Coin Cell

Windows 10 IoT Enterprise LTSC 2019 RS5

Ubuntu 20.04

Operating: -5 to 65°C
Storage: -40 to 85°C

Operating: 5 to 90% RH Storage: 5 to 90% RH

TBD

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD

1 CMS171/CMS173 motherboard
1 Serial ATA data cable w/lock (Length: 500mm) 332-553001-005G
1 Serial ATA power Y cable (Length: 300mm, 1 x SATA POWER 15P*2 TO 4P HSG) A81-002044-016G
1 COM port cable (Length: 250mm, 1 x COM port) A81-015011-001G
