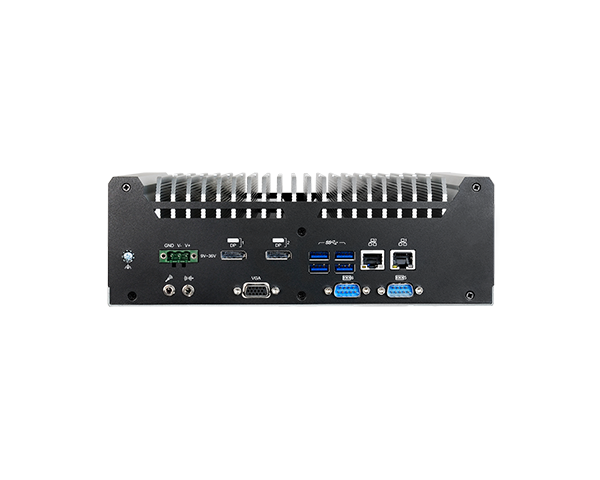

EC500-ADS
首页 工业级系统 无风扇嵌入式系统 EC500-ADS
  • 12th Generation Intel® Core™ with Intel® H610E/Q670E/R680E
  • Supports DDR4 SODIMM up to 64GB
  • Three independent displays: 1 VGA + 2 HDMI/DP++ (auto detection)
  • Rich I/O connectivity: 2 GbE, 6 COM, 4 USB 3.1, 2 USB 2.0
  • Multiple Expansion: 3 M.2 slots
  • Support 5G Communication
  • Operating Temperature: -20 to 70°C
  • 15-Year CPU Life Cycle Support Until Q4' 36 (Based on Intel IOTG Roadmap)

Status : Sample Available QUOTE NOW

宽温: -20~70°C
宽压: 9~36V DC-in
无风扇设计
多元扩充插槽
DDR4内存
三个独立显示
5G
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS 认证
CE 认证
FCC 认证
UKCA 认证
EC500-ADS Embedded Solution Powered by: DFI特规主机板

EC500-ADS Related Tags

#12th Gen Intel® Core™ 处理器#ADS 系列#IoT#Intel#5G#无风扇设计#4K2K高清#Windows#Linux#HDMI#VGA#DP#多元扩充插槽#DDR4内存#RoHS认证#CE认证#FCC认证#UKCA 认证
EC500-ADS
EC500-ADS
EC500-ADS
系统
处理器
12th Generation Intel® CoreTM Processors, LGA 1700
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8GHz); 35W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6GHz); 35W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3GHz); 35W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, to 4GHz); 35W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3GHz); 35W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4GHz); 35W
芯片组
Intel® H610E/Q670E/R680E Chipset
内存
Two 260-pin DDR4 3200MHz SODIMM up to 64GB
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® HD Graphics
特性
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
显示器
1 x VGA
2 x HDMI/DP++ (auto detection)
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
储存
内插
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1 (Q670E/R680E)
扩充
界面
Q670E/R680E:
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB3.0)
H610E:
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 3042/3052 B key (PCIe)
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I225IT PCIe (10/100/1000Mbps)
LED
指示灯
1 x Status LED
1 x HDD LED
前板输入/输出
串口
4 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
DIO
8 bit (DB-9)
按键
1 x Power button
1 x Reset button
Wi-Fi 天线
4 x Antenna hole
背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
2 x RS-232 (DB-9)
USB
4 x USB 3.1 (type A)
显示
VGA + 2 x HDMI/DP++ (auto detection)
音源
1 x Line-out
1 x Mic-in
监视定时器
看门狗定时器
System reset, programmable via software from 1 to 255 seconds
安全性
信赖平台模块
TPM 2.0
电源
类型
Wide range 9~36V
端口
3-pole terminal nlock
3-pin power extension switch connector
支持操作系统
微软
Windows 10 IoT Enterprise 2021 LTSC
Linux
Linux (available upon request)
环境指标
运作温度
-20 to 70°C (SSD or M.2 storage)
储存温度
-20 to 85°C
相对湿度
5 to 95% RH (non-condensing)
机械结构
结构
Metal + Aluminum
安装方式
Wall Mount
尺寸 (宽 x 高 x 深)
255.3 x 85 x 224mm
重量
4.15 kg
安规认证
冲击测试
Half sine wave 3G, 11ms, 3 shock per axis
抗振动测试
IEC68-2-64
认证
CE, FCC Class A, RoHS, UKCA
装箱单
装箱单
1 EC500-ADS system unit
1 M.2 slot screws
1 Terminal block 3 pole for DC input
1 Cable with 2 wire stripped and tinned to DC jack
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC500-ADS6861-H
    Part Number :
    750-EC5005-000G
    Description :
    EC500-ADS6861-H, Fanless, ADS263, H610E, i5-12500TE, 6 COM, 8 DIO, 6 USB, 1 VGA, 2 HDMI/DP, 2 LAN, 1 Line-out, 1 Mic-in, DC9~36V, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC500-ADS6861-Q
    Part Number :
    750-EC5005-100G
    Description :
    EC500-ADS6861-Q, Fanless, ADS263, Q670E, i5-12500TE, 6 COM, 8 DIO, 6 USB, 1 VGA, 2 HDMI/DP, 2 LAN, 1 Line-out, 1 Mic-in, DC9~36V, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC500-ADS6861-R
    Part Number :
    750-EC5005-200G
    Description :
    EC500-ADS6861-R, Fanless, ADS263, R680E, i5-12500TE, 6 COM, 8 DIO, 6 USB, 1 VGA, 2 HDMI/DP, 2 LAN, 1 Line-out, 1 Mic-in, DC9~36V, TPM2.0, F/G SYSTEM RoHS

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
