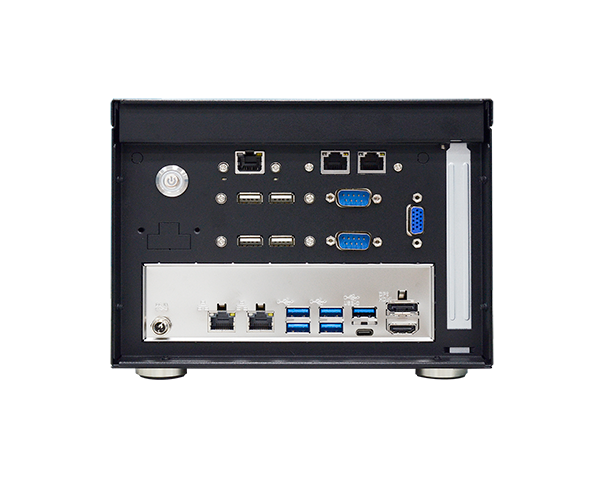

WM130-RPS｜Intel®｜工业级系统｜友通资讯 DFI

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W
Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W
Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

Intel® R680E/Q670/H610E Chipset

Dual DDR5 SODIMM 5600MHz up to 64GB (ECC support by R680E sku)

AMI SPI 256Mbit

Intel® UHD Graphics 700 series

3D graphics HW acceleration: DX12, Open GL 4.6, Vulkan 1.2
HW Video Decode: 8K60 12b 4:2:0 HEVC/VP9/SCC; 8K30 10b 4:2:0 AV1; 5K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC
HW Video Encode: 8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC; 4K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC

[R680E/Q670E] 1 x HDMI 2.0
[R680E/Q670E] 1 x DP++ 1.2
[R680E/Q670E] 1 x USB Type-C
[R680E/Q670E] HDMI: resolution up to 4096x2160 @ 60Hz
[R680E/Q670E] DP++: resolution up to 4096x2304 @ 60Hz
[R680E/Q670E] USB Type C: resolution up to 4096x2304 @ 60Hz
[H610E] 1 x HDMI 2.0
[H610E] 1 x DP++ 1.2
[H610E] HDMI: resolution up to 4096x2160 @ 60Hz
[H610E] DP++: resolution up to 4096x2304 @ 60Hz

1 x 2.5" SATA 3.0 1TB SSD
1 x M.2 2280 M Key (PCIe x4/SATA)

1 x PCIe x16 (Gen 5) (Max. 75W)
1 x M.2 2230 E Key
1 x M.2 2242/3042/3052 B Key
1 x M.2 2280 M Key

Realtek ALC888

[R680E/Q670E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
[R680E/Q670E] 1 x Intel® I226-V

[H610E] 2 x Intel® I226-V

1 x Power LED

2 x 2.5GbE (RJ-45)

[R680E/Q670E] 5 x USB 3.2 Gen2 Type A
[R680E/Q670E] 1 x USB 3.2 Gen2 USB Type C

[H610E] 2 x USB 3.2 Gen2
[H610E] 1 x USB 3.2 Gen1
[H610E] 2 x USB 2.0

1 x HDMI 2.0
1 x DP++ 1.2
1 x USB Type-C

1 x Power button

1 x 8cm System Fan, with replaceable air filter

System Reset, Programmable via Software from 1 to 255 Seconds

Nuvoton TPM 2.0

DC Jack or 4-Pin terminal block with Wide Range 12~28V

DC-in Jack/Terminal Block(Opt.)

TBD

CR2032 Coin Cell

Windows 10 IoT Enterprise 2019

-5° to 50° C

-40 to 85°C

5 to 95% RH (non-condensing)

Sheet Metal

Wall mount

200 x 145.8 x 210.6 mm

TBD

Black

Operating: 3G
Non-operating: 5G

Operating: 1G
Non-operating: 3G

ISTA Project 1A

TBD
