ECX700-ASL

产品概要

首页工业级系统加固嵌入式系统 ECX700-ASL

Waterproof and dustproof design certified to IP67 and IP69K

Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C

Intel® Atom® Processor X7433RE/X7835RE Amston Lake CPU

8GB/16GB LPDDR5 4800 Memory down

Rich waterproof I/O including 2x 2.5GbE, 2x USB 3.2, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67 vent

Multiple expansion slots for Wifi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules

Wide voltage: 9V~36V DC-IN

Long-term Promise of 15-Year CPU Life Cycle Until Q4' 31 (Based on Intel IOTG Roadmap)

状态 : 初版前往询价

+加入比较表 +加入询价表

产品比较
目前共有样产品 ,Up to 3 items.
前往比较

加入询价表
目前共有 ,Up to 3 items.
前往询价

ECX700-ASL｜Intel®｜Industrial Computers｜DFI

系统

处理器

Intel® Atom® X7213RE 2 Cores, 2.0GHz to 3.4GHz
Intel® Atom® X7835RE 8 Cores, 1.3GHz to 3.6GHz

内存

8GB/16GB LPDDR5 4800 Memory down

BIOS

AMI SPI 256Mbit (supports UEFI boot only)

显示

控制器

Intel® UHD Graphics

特性

Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8 Compute: OpenCL 3.0

显示器

1 x HDMI

储存

eMMC

64GB / 128GB Available

扩充

界面

1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi)
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe with SIM
1 x M.2 2242/2280 M key (*PCIe/SATA)

以太网路

控制器

2 x Intel Ethernet controller i226 2.5GbE

LED

指示灯

1 x Power Status LED

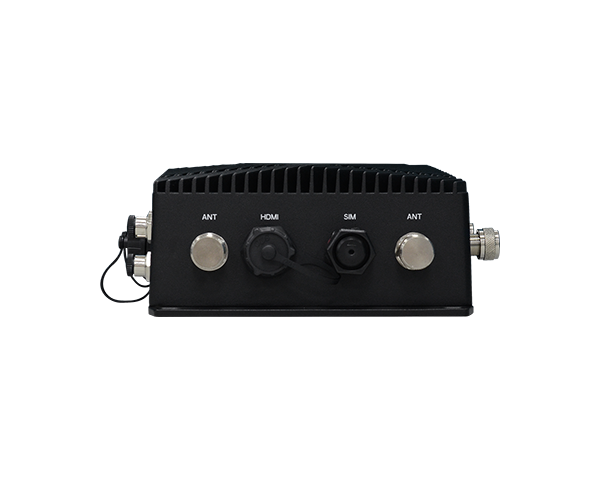

前板输入/输出

显示

1 x HDMI

天线

2 x Antenna (WiFi)

SIM

1 x SIM card slot

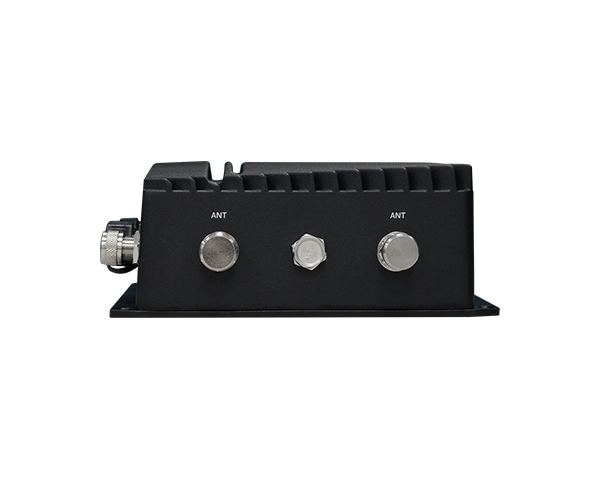

上板输入/输出

天线连接器

2 x Antenna (LTE)

Vent

1 x Vent

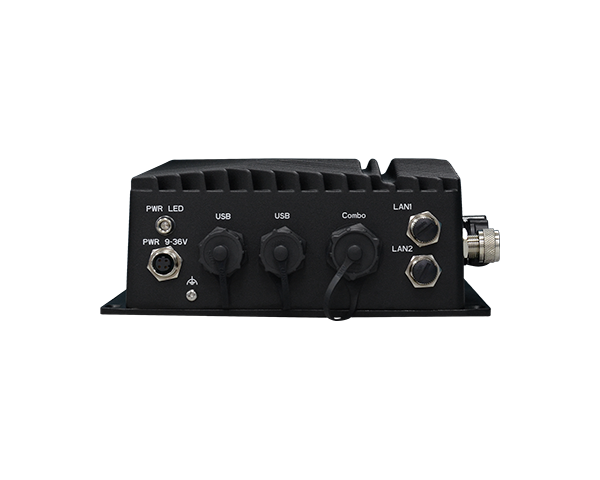

底板输入/输出

以太网络

2 x 2.5GbE

USB

2 x USB 3.2

集合连接器

2 x RS232 and 2 x Can bus protocol
(4 x Can bus protocol by project support)

电源

1 x DC-Input

电源

类型

DC-in 9~36V

端口

M12 D-code

支持操作系统

微软

Windows® 11 IoT Enterprise

Linux

环境指标

运作温度

-40 to 70°C

储存温度

-40 to 85°C

相对湿度

5 to 95% RH (non-condensing)

机械结构

安装方式

Wall mount

尺寸 (宽 x 高 x 深)

TBD

重量

TBD

安规认证

冲击测试

Operation shock test:
IEC-60068-2-27
MIL-STD-810G 514.8C-5

抗振动测试

Operation Vibration test:
IEC 60068-2-64
MIL-STD-810G 514.8C-5

认证

CE, FCC class A, ROHS

Construction

IP67/ IP69K enclosure

产品资料

ECX700-ASL 规格书 (PDF) 659.1KB 2025/12/01

订购资讯

型号料号描述
型号 :
ECX700-ASL2020A-X33 料号 :
750-ECX7000-000G 描述 :
ECX700-ASL2020A-X33, IP67 Box PC, ATOM X7433RE, 64GB eMMC, 16GB memory down, 2 COM, 2 CAN, 4 USB, 1 HDMI, 2 LAN, AC9260, LE910C4-AP, DC9~36V, TPM2.0, F/G SYSTEM RoHS
型号 :
ECX700-ASL2020A-X35 料号 :
750-ECX7000-100G 描述 :
ECX700-ASL2020A-X35, IP67 Box PC, ATOM X7835RE, 64GB eMMC, 16GB memory down, 2 COM, 2 CAN, 4 USB, 1 HDMI, 2 LAN, AC9260, LE910C4-AP, DC9~36V, TPM2.0, F/G SYSTEM RoHS

选购品

品名料号描述
品名 :
External USB cable 料号 :
A81-001129-068G 描述 :
IP67 USB Plug to USB Plug, 300mm
品名 :
External HDMI cable 料号 :
A81-026004-068G 描述 :
IP67 HDMI Plug to HDMI Plug, 300mm
品名 :
LTE IPEX cable 料号 :
A81-099125-027G 描述 :
ANTENNA CABLE, IPEX MHF4L to N JACK IP67/8, L=220mm, Ø1.13, FOR ECX700-ASL, BTC061-20-MHF470B220(ARISTOTLE)RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
品名 :
WiFi IPEX cable 料号 :
A81-099124-027G 描述 :
ANTENNA CABLE, IPEX MHF1 to N JACK IP67/8, L=220mm, Ø1.13, FOR ECX700-ASL, BTC061-20-70B-220(ARISTOTLE)RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
品名 :
WiFi / LTE Rod type Antenna 料号 :
612-139917-000G 描述 :
Omni-S Thimble IP68 LTE ANTENNA, 1710-7125MHz, REVISE N TYPE, L= 55mm,1399.17.0224 (HUBER+SUHNER) RoHS *Note: Designed for high vibration environments such as mining and construction vehicles.
品名 :
WiFi Cabled type Antenna 料号 :
612-RFA25T-100G 描述 :
ANTENNA, 2400-2500MHz, 5150-5925MHz, REVISE N TYPE, L= 53mm, RFA-25-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
品名 :
LTE Cabled type Antenna 料号 :
612-RFALTE-200G 描述 :
ANTENNA, 698-960MHz, 1710-2170MHz, 2300-2700MHz, REVISE N TYPE, L= 53mm, RFA-LTE-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
