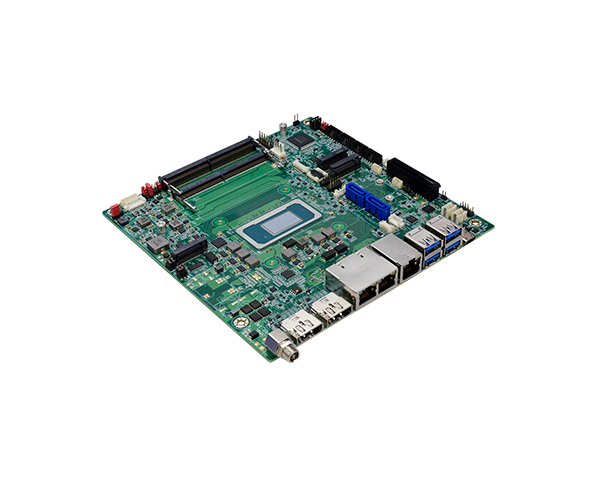

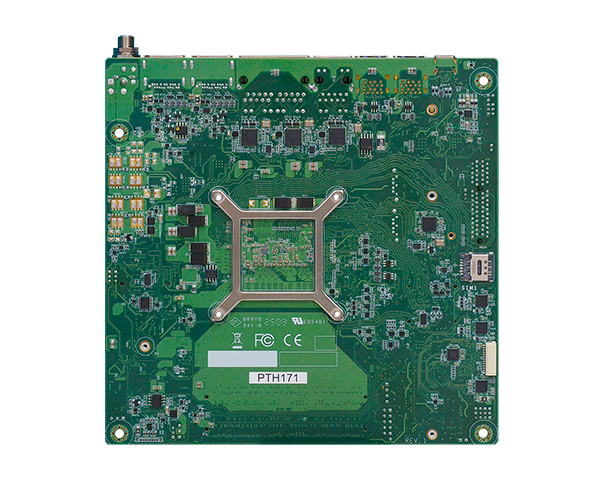

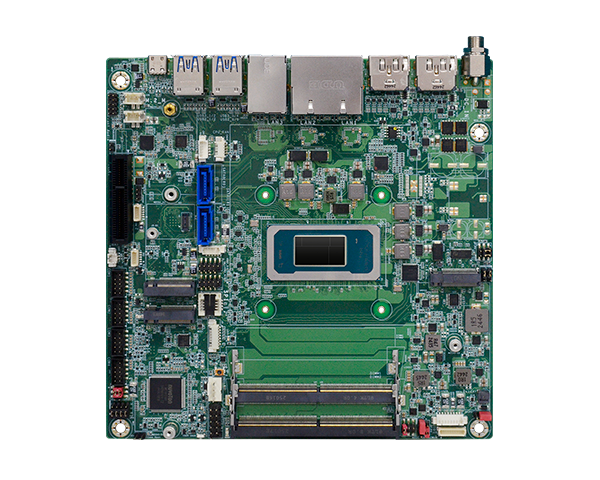

PTH171/PTH173

产品概要

首页工业级主机板 Mini-ITX PTH171/PTH173

Intel Panther Lake H processor, TDP up to 25W

2 DDR5 6400/7200MHz, up to 128 GB

Quad Display: 1 DP++, 1 HDMI 2.0, 1 USB Type C, 1 M2A-Display extension port (eDP/LVDS/HDMI/DVI/VGA/DP/ available)

Multiple Expansion: 1 PCIe Gen 5 x4, 1 M.2 M Key (NVMe), 1 M.2 B Key (4G/5G) with SIM slot, 1 M.2 E Key (WIFI/BT), 1 M.2 A Key (M2A-Display & USB Expansion)

Rich I/O: Support up to 3 Intel 2.5GbE, 2 COM, 4 USB 3.2 Gen2 Type A, 1 USB Type C (DP alt/USB3 Gen2/PD 15W), 5 USB 2.0 header, 2 SATA 3.0, Audio L/R 3W speaker

Support EXT-OOB (Full) , optional internal RJ45, CNVi, vPro

Typically supports 10-Year CPU Life Cycle Until Q1’36 (Based on Intel Roadmap)

状态 : 初版前往询价

+加入比较表 +加入询价表

产品比较
目前共有样产品 ,Up to 3 items.
前往比较

加入询价表
目前共有 ,Up to 3 items.
前往询价

PTH171/PTH173 相关标签

#DDR5内存#USB Type-C DP#EXT-OOB (Full)#Intel Panther Lake H 处理器#Windows 11#Intel#SIM卡槽#Windows#Linux#DP#多元扩充插槽#RoHS认证#CE认证#FCC认证#2.5Gb乙太網路#UKCA 认证

PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI

系统

处理器

Inter Panther Lake H processor, TDP up to 25W
Intel® Core™ Ultra 9 388H (H484-12XeET, vPro)
Intel® Core™ Ultra 7 368H (H484-12XeET, vPro)
Intel® Core™ Ultra 7 358H (H484-12XeET)
Intel® Core™ Ultra 5 338H (H484-12XeET, vPro)
Intel® Core™ Ultra 9 386H (H484-4XeET, vPro)
Intel® Core™ Ultra 7 366H (H484-4XeET, vPro)
Intel® Core™ Ultra 7 356H (484-4XeET)
Intel® Core™ Ultra 5 336H (444-4XeET, vPro)
Intel® Core™ Ultra 7 365 (404-4XeET, vPro)
Intel® Core™ Ultra 7 355 (404-4XeET)
Intel® Core™ Ultra 5 335 (404-4XeET, vPro)
Intel® Core™ Ultra 5 325 (404-4XeET)

内存

2x 262-pin SODIMM up to 128GB
Dual-channel SODIMM DDR5 up to 6400 MHz (H404)/ 7200 MHz (H484)

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® Arc Xe3

显示器

1 x HDMI
1 x DP++
HDMI: resolution up to 4096x2160 @60Hz
DP: resolution up to 4096x2304 @60Hz
USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W): resolution up to 4096x2304 @60Hz (HBR2)

四重显示

HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)

扩充

界面

1 x PCIe Gen5 x4 slot
1 x M.2 2242/2280 M Key (PCIE Gen4 x4, SATA 3 opt. selected by BIOS, support NVMe)
1 x M.2 2242/3042/3052 B Key (PCIE Gen4 x1 shared with M.2 A key by request, USB3.2 Gen2, USB 2.0, SIM)
1 x M.2 2230 E Key (PCIE Gen4 x1 and USB 2.0, support Intel® CNVi, WIFI7)
1 x M.2 3042/3060 A Key (Standoff 3030)
- Support M2A Display solution (eDP/LVDS/VGA/DP/HDMI or DVI via optional cable)
- Support M2A-M21 expansion solution (PCIE x1,USB3/USB2, SIM)

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

LAN1/2: i226V/IT (10/100/1000/2.5G speeds)
LAN3(vPro): i226LM/IT (10/100/1000/2.5G speeds)

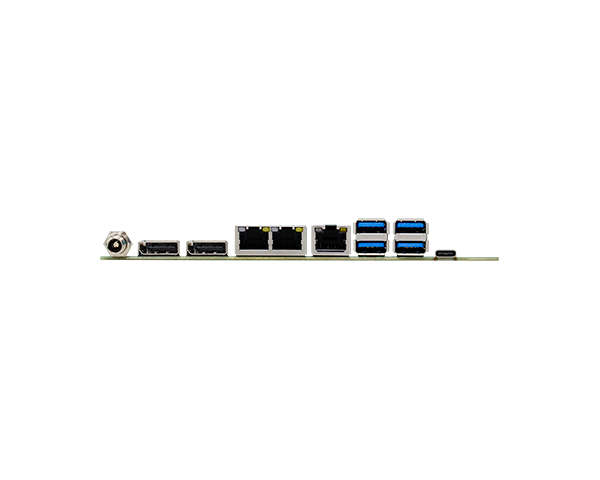

背板输入/输出

以太网络

Up to 3 x 2.5GHz RJ45 (LAN 3 colayout with internal vertical RJ45 by option)

USB

4 x USB 3.2 Gen2 Type A
1 x USB 2.0 Type A
1 x USB 3.2 Gen 2 Type C (DP alt-mode/USB3.2 Gen 2/PD 15W)

显示

1 x HDMI 2.0
1 x DP++

内部输入/输出

串行端口

2 x RS-232/422/485 (2.0mm pitch)
1 x RS-232 with power (2.0mm pitch)
1 x RS-232 (2.0mm pitch) colay with DIO-4bit or PS/2 (Option)

USB

4 x USB 2.0 (2.0mm pitch)
1 x M.2 A key with M2A-M21 supports up to 2 USB3 Gen1 and 4 USB2.0 (Option)

显示

1 x M.2 A key, support M2A-Display ( eDP / LVDS / VGA / DP / HDMI or DVI via optional cable)

音效

1 x Line-out/Mic-in
2 x 3W speaker header (L/R)

SATA

2 x SATA 3.0
H484 RAID 0,1,5 supported by Intel VMD
H404 RAID 0,1 (shared with M.2 M key)

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

Case Open

1 x case open header

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM (default)
fTPM (option)

电源

类型

[PTH171] Single 12VDC
[PTH173] Wide Range 12~28VDC

端口

DC-in Jack
Right Angle Connector (4-pin) (Option)
Straightl Type Connector (4-pin) (Option)

耗能

Idle: TBD
Max: TBD

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 11 24H2 LTSC 64-bit

Linux

Ubuntu 24.04

环境指标

温度

Operating: -5 to 65°C, -20 to 70°C
Storage: -40 to 85°C

湿度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

TBD

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: TBDmm
Top Side: TBDmm
Bottom Side: TBDmm

安规认证

认证

CE, FCC, RoHS, UKCA

装箱单

• 1 PTH171/PTH173 motherboard
• 1 COM port cable with bracket (Length: 250mm, 1 x COM ports), A81-015115-018G
• 1 Serial ATA data with power cable (Length: 300mm), A81-002144-018G
• 4 M.2 screw/standoff
• 1 I/O Shield
　- (2 LAN, Regular type)(For Sample), TBD
　- (3 LAN, Regular type)(For Sample), TBD
　- (2 LAN, Thin type)(For Sample), TBD
　- (3 LAN, Thin type)(For Sample), TBD
• 1 Cooler
　- (Wide/Normal Temp. -Cooler for 25W), TBD (Default)

产品资料

PTH171/PTH173 規格書 (PDF) 887.79KB 2026/02/12
