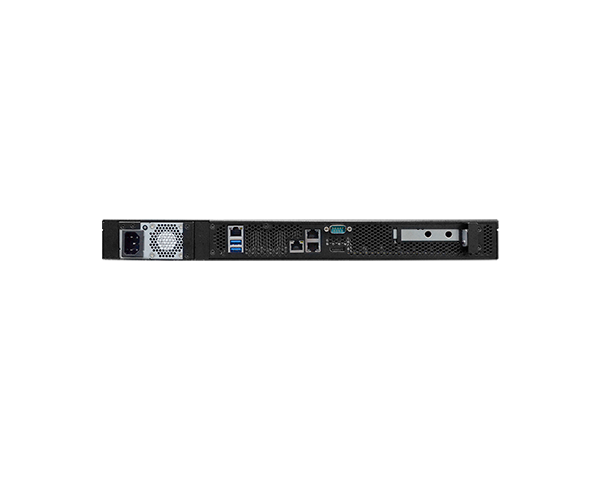

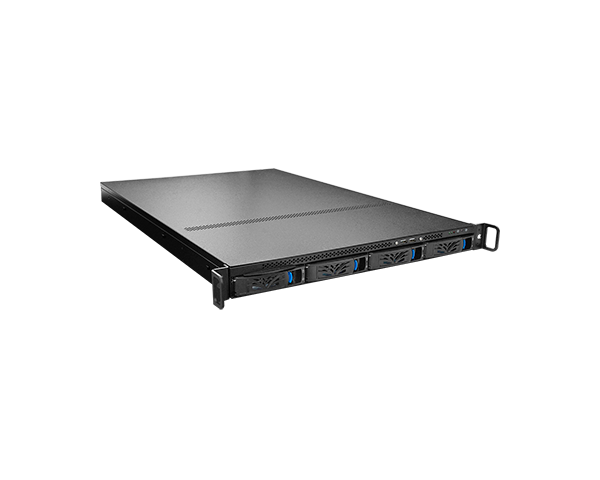

RM811-ERX810

产品概要

首页工业级系统 Mini-ITX/microATX/ATX系統 RM811-ERX810

Equipped with dual 4th/5th Gen Intel® Xeon® Scalable processors for exceptional processing power.

Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities.

Features four hot-swappable drive bays (3.5"/2.5”) for reliable, high-availability storage.

Versatile I/O options: 3 GbE, 1 IPMI LAN, 2 USB 3.2, 1 DisplayPort, 1 M.2 2280 M-Key, and 1 COM.

IPMI-based out-of-band management for seamless remote monitoring and control.

状态 : 初版前往询价

+加入比较表 +加入询价表

产品比较
目前共有样产品 ,Up to 3 items.
前往比较

加入询价表
目前共有 ,Up to 3 items.
前往询价

RM811-ERX810 嵌入式系统解决方案采用：

ERX610-C741

ATX, 5th/4th Gen Intel® Xeon® Scalable Family, 3 PCIe x16, 3 PCIe x8, 2 M.2 M key 2280, 8 DDR5, 2 Intel® GbE, 2 Intel® 10GbE, 4 SATA 3.0, 6 USB 3.2, 2 USB 2.0, 1 Vertical USB 2.0, 2 COM, 1 Dedicated IPMI, OOB, DP, Intel® C741 Chipset

ERX810-C741

5th/4th Gen Intel® Xeon® Scalable Family, 16 DDR5, 4 PCIe x16, 2 PCIe x8, 1 M.2 M Key, 4 Intel® GbE, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0, 1 DP, Intel® C741 Chipset

RM811-ERX810 相关标签

#DDR5内存#M.2#4th Gen Intel Xeon Scalable Family#5th Gen Intel Xeon Scalable Family#OOB#带外管理 (OOB)#Windows 11#Intel#1Gb以太网络#PCIe x16扩充插槽#Windows#DP

RM811-ERX810｜Intel®｜Industrial Computers｜DFI

系统

处理器

5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket,
Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W
Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W
Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W
Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W
Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W
Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W

4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket,
Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W
Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W
Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W
Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W
Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W

芯片组

Intel® C741 Chipset

内存

16 x ECC-RDIMM up to 2048GB
DDR5 Max. 5600MHz

BIOS

Insyde

显示

显示器

1 x DP

储存

外插

4 x SATA 3.0 (RAID 0/1/5/10)

内插

1 x M.2 2280 M key

扩充

界面

1 x PCIe x16
1 x M.2 M key 2280

音讯

音讯编译码器

ALC888S

以太网路

控制器

3 x Intel® I210AT
IPMI: RTL8211F

前板输入/输出

以太网络

3 x GbE
1 x Dedicated IPMI LAN

串口

1 x RS-232/422/485 (DB-9)

USB

2 x USB 3.2 Gen1

显示

1 x DP

音源

Internal: Front Audio

按键

1 x Power Button
1 x Reset Button

LED指示灯

1 x Power LED
1 x HDD LED

冷却

风扇

5 x 4CM Fan

电源

供应

Single/Redundant Power

支持操作系统

Windows 11 LTSC
Widows server 2022 LTSC

环境指标

运作温度

0°C to 40°C: CPU up to TBD W
0°C to 35°C: CPU up to TBD W

机械结构

结构

Heavy Industrial Steel

安装方式

Rack mount kit

尺寸 (宽 x 高 x 深)

438 x 44 x 673.2mm

重量

TBD

颜色

Black

安规认证

认证

TBD

装箱单

• 1 RM811-ERX810 System Unit

产品资料

RM811-ERX810 规格书 (PDF) 388.83KB 2026/01/06

选购品

品名料号描述
品名 :
RM811-ERX810 料号 :
TBD 描述 :
TBD
