VC500-CMS-MXM|Intel®| Industriecomputer|DFI

VC500-CMS-MXM
Home Anwendungsspezifisches System Fahrzeugsystem VC500-CMS-MXM
  • High Performance Fan-less Edge AI In-Vehicle System
  • Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors
  • 4x M12/RJ45 802.11af PoE or 2x 10G SFP+ Ports
  • Supports MXM GPU module with Four Display Ports
  • 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
  • Supports M.2 B key 3042/3052 5G-NR module with dual SIM
  • OOB management support upon request
  • 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)

Status : Preliminary Jetzt Angebot machen

Lüfterloses Design
Mini PCIe
Mehrfache Erweiterung
15 Jahre CPU-Lebensdauer
DDR4
Produktvergleich
Sie haben Artikel. ,Up to 3 items.
Jetzt vergleichen
Angebot
Sie haben ,Up to 3 items.
Jetzt Angebot machen
FCC Zertifizierungen
E-Mark (E13) Certification

VC500-CMS-MXM Verwandte Tags

#OOB#Edge#AI#SIM-Slot#Intel#5G#PoE#CAN-Bus#Mini PCIe#Lüfterloses Design#Linux#HDMI#DP#Mehrfache Erweiterung#DDR4#E-Mark (E13) Zertifizierungen#FCC Zertifizierungen#Fahrzeug#10th Gen Intel® Comet Lake Processor
VC500-CMS-MXM|Intel®| Industrial Computers |DFI
VC500-CMS-MXM|Intel®| Industrial Computers |DFI
VC500-CMS-MXM|Intel®| Industrial Computers |DFI
VC500-CMS-MXM|Intel®| Industrial Computers |DFI
VC500-CMS-MXM|Intel®| Industrial Computers |DFI
System
Prozessor
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
- Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
- Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W
- Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
- Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W
- Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
Chipsatz
Intel® Q470E/W480E Chipset
Speicher
Dual SO-DIMM slots (horizontal type) with anti-vibration bracket
Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB
ECC support for Xeon-1270TE processor only
BIOS
AMI SPI 256Mbit
Grafik
Controller
Intel® processor integrated or Independent MXM module by BIOS selection
Anzeige
4 x Display Ports with lock holes from MXM
1 x HDMI combo port and 2 x DP++ ports from CPU
Compatible MXM
Type A or B MXM modules: RTX A2000, RTX3000, A500, A1000
Speicher
Extern
2 x swappable 2.5" SATA drive bays with lock on rear panel
Supports RAID 0/1
intern
1 x M.2 2280 M Key slot, supports 2242, 2260 & 2280 devices
PCIe x4 & SATA signal, support boot up function
Schnittstelle
SATA
Audio
Audiocodec
ALC 888
Schnittstelle
1 x Mic-in
1 x Line-in
Ethernet
Controller
1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only)
1 x Intel® i210IT
LED
Anzeigen
1 x Storage Activity (Red)
1 x Power (Green)
2 x Programmable general purpose (Green, Blue)

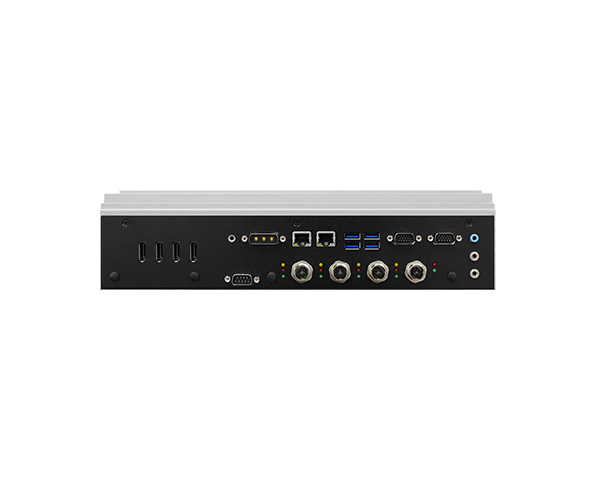

I/O Vorderseite
Ethernet
2 x RJ45 GbE ports
Seriell
1 x DB-9 RS232 ports (COM 5)
USB
4 x USB 3.1 Gen2
Audio
1 x Line-out, 1 x Mic-in and 1x Line-in with 3.5mm audio jacks
DIO
2 x Isolated DIO port by 2 x DB-15 female connectors
Supports 8bit DI & 8 bit DO with 2KV isolation
Antenne
2 x antenna holes
DC in
W3 3 pin connector
OOB
Optional RJ45 port for OOB management
PoE/ 10G

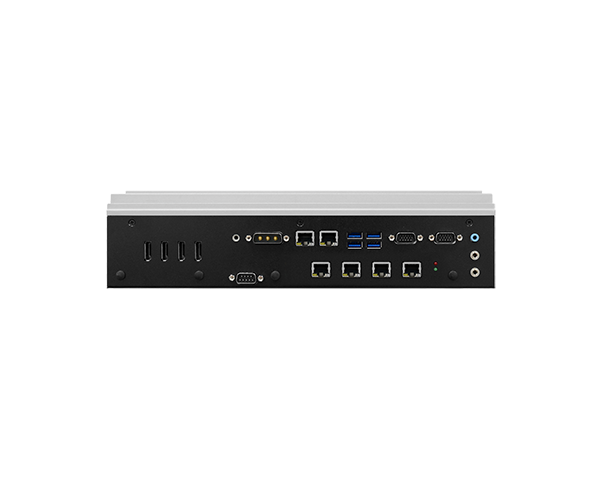

4 x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or

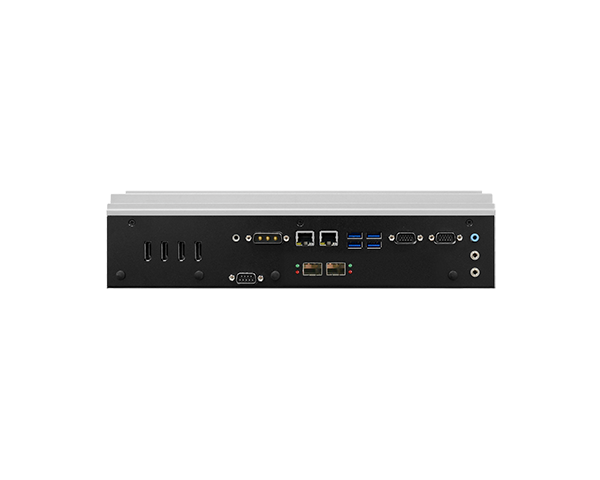

2 x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

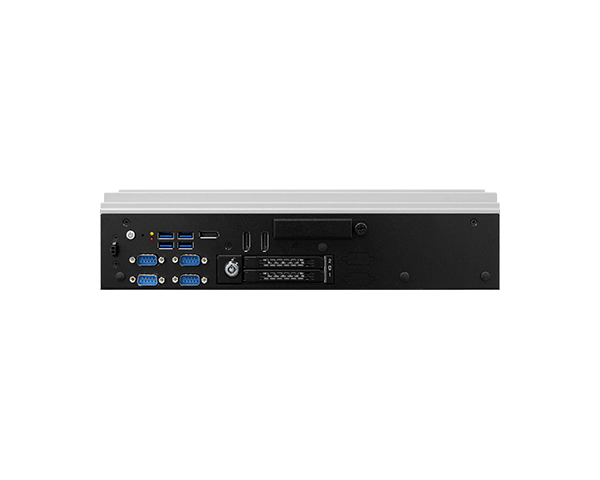

I/O Rückseite
Seriell
4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)
USB
4 x USB 3.1 Gen2
Anzeige
4 x Display Ports with lock holes from MXM
1 x DP++/HDMI combo port and 2 x DP++ ports from CPU
Tasten
1 x Power Button
1 x Reset Button
Schalter
2-pin remote switch
Antenne
2 x antenna holes
SIM
3 x accessible SIM slots with cover bracket
CANBus
2 x DB-9 ports for CAN bus (optional)
I/O Flanke
Antenne
2 x antenna holes on right side
2 x antenna holes on left side
I/O Innenseite
Seriell
1 x 2x5 pin block header for RS232
Mini PCIe
1 x mini PCIe slot with SIM holer on faceplate
Supports WiFi/BT/LTE or CAN bus module
M.2
Total 3 x M.2 slots
1 x 2230 E-key slot (PCIe x1 & USB2.0)
1 x 3042/3052 B-Key (USB3.0 & PCIex1) with dual SIM slots on faceplate
1 x 2242/2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe
Kühlung
Lüfter
Passive cooling by default
Optional Fan cooling upon request
Sicherheit
TPM
Supports dTPM2.0 by default (disabled by BIOS setting)
Optional fTPM2.0 supported
Hardware Monitor
Schwerkraft-Sensor
Support 3-axis femto accelerometer
User-selectable ±2g/±4g/±8g/±16g scale
Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake
and return-to-sleep
Leistung
Typ
3pin 3W3 connector
Versorgung
Wide Range 9~50VDC with power management (on/off delay) and ignition
Betriebssystemunterstützung
Microsoft
Windows 10 IoT Enterprise RS5
Windows 11 IoT Enterprise LTSC SW
Linux
Ubuntu Linux 20.04
Umgebung
Betriebs-temperatur
-20°C to 60°C
without turbo boost and throttling is expected
Aufbewahrungs-temperatur
-40°C to 85°C
Relative Luftfeuchtigkeit
10% to 95% (non-condensing)
Mechanismus
Konstruktion
Metal + Aluminum
Montage
Wall mount
Abmessungen (B x H x T)
346mm x 87.55 mm x 221mm
Gewicht
6.95 Kg
Farbe
Black and Silver
Standards und Zertifizierungen
Stöße
MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by
SSD, HDD is not support)
Vibrationen
MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
Zertifizierungen
FCC, E-Mark
Packliste
Packliste
1 VC500-CMS-MXM system unit
1 Power connector
1 Mounting bracket
1 3W3 adaptor cable
Country of Origin
Country of Origin
Taiwan
Bestellinformationen
  • Modellbezeichnung Teilenummer Beschreibung
  • Modellbezeichnung :
    VC500-CMS-MXM-10G-Q
    Teilenummer :
    750-VC50000-400G
    Beschreibung :
    Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, 1 MXM slot, Power: 3pin 3W3 connector
  • Modellbezeichnung :
    VC500-CMS-MXM-POE-Q
    Teilenummer :
    750-VC50000-500G
    Beschreibung :
    Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, 1 MXM slot, Power: 3pin 3W3 connector
  • Modellbezeichnung :
    VC500-CMS-A1000-POE-Q-i70
    Teilenummer :
    750-VC50000-510G
    Beschreibung :
    Intel® Core™ i7-10700TE, Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, 1 MXM-A1000 slot, Power: 3pin 3W3 connector
Optionale Artikel
  • Artikelname Teilenummer Beschreibung
  • Artikelname :
    2.5" SSD
    Teilenummer :
    785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G
    Beschreibung :
    2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS
  • Artikelname :
    M.2 SATA SSD
    Teilenummer :
    785-M2SATA64G
    785-M2SATA128G
    785-M2SATA256G
    785-M2SATA512G
    Beschreibung :
    64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75°C
  • Artikelname :
    Memory
    Teilenummer :
    138-540002-121G
    138-580004-104G
    Beschreibung :
    4GB DDR4 2666Mhz SO-DIMM, -40 to 85°C
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V
  • Artikelname :
    WiFi/BT module kit
    Teilenummer :
    761-AP1235-000G
    Beschreibung :
    WiFi/Bluetooth Module AP12356, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws
  • Artikelname :
    LTE module kit
    Teilenummer :
    761-RC3000-001G
    Beschreibung :
    Quectel EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2
  • Artikelname :
    5G module kit
    Teilenummer :
    761-RC3000-100G
    Beschreibung :
    SIM8202G-M2 M.2 module, antenna*4, 184mm SMA cables *4
  • Artikelname :
    M12 Cable
    Teilenummer :
    A81-005038-054G
    Beschreibung :
    8-pin M12 X-coded to RJ45 PoE cable
  • Artikelname :
    CAN bus module
    Teilenummer :
    770-MPEC21-100G
    Beschreibung :
    MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly
  • Artikelname :
    Power Switch Cable
    Teilenummer :
    A81-004363-054G
    Beschreibung :
    3W3 to terminal block 2*4P/4.2mm, L=250 & 300mm with ignition switch button
  • Artikelname :
    Power Adapter
    Teilenummer :
    671-133001-000G
    Beschreibung :
    330W, GST360A, Input: 85~264V, Output: 12V/27.5A, 220x95x46mm, L=1000mm, C8P, LV6, 62368-1, GST360A12-C8P(MEAN WELL)RoHS
