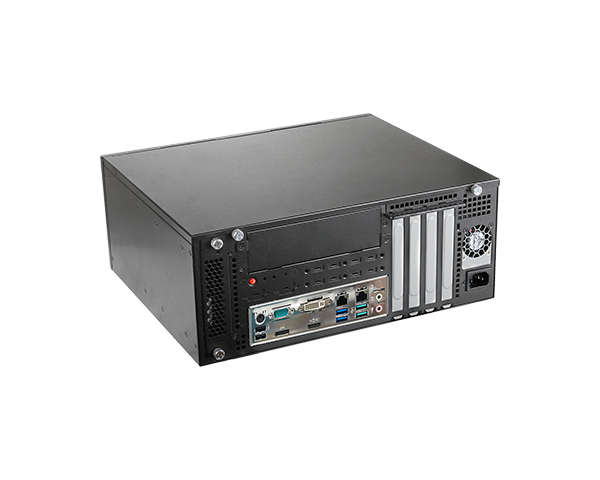

WM343-CS350｜Intel®｜産業用コンピューター｜DFI

8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W (C246 only)
Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W (C246 only)
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Xeon® E-2278GE (8 Cores, 16M Cache, up to 4.7 GHz); 80W (C246 only)
Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W (C246 only)
Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W (C246 only)
Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W (Non-LTS)
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

Intel® Q370/C246 Chipset

Q370:
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz
C246:
Two 288-pin DIMM up to 64GB
Dual Channel DDR4 2400/2666 MHz

AMI SPI 128Mbit

Intel® HD Gen 9 Graphics

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x DP++
1 x HDMI 1.4b
1 x DVI-I (DVI-D signal)
DP++: resolution up to 4096x2106@60Hz
HDMI 1.4b: resolution up to 4096x2160@24Hz
DVI-I (DVI-D signal): resolution up to 1920x1200@60Hz 1 x DP++
1 x HDMI 1.4b
1 x DVI-I (DVI-D signal)
DP++: resolution up to 4096x2106@60Hz
HDMI 1.4b: resolution up to 4096x2160@24Hz
DVI-I (DVI-D signal): resolution up to 1920x1200@60Hz

DVI-D & DP++ & HDMI 1.4b

1 or 2 x 3.5"/2.5" SATA 3.0 Drive Bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical Drive Bay

1 x M.2 2280 (PCIe x4/SATA)

2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 3)
1 x M.2 2230 E key (PCIe x1/USB2.0/intel CNVi support)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe)

Realtek ALC888

1 x Line-out
1 x Mic-in
1 x Line-in (opt.)

1 x Intel® i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (Only Xeon, Core i7/i5 support iAMT)
1 x Intel® i211AT PCIe (10/100/1000Mbps)

1 x Power LED
1 x HDD LED

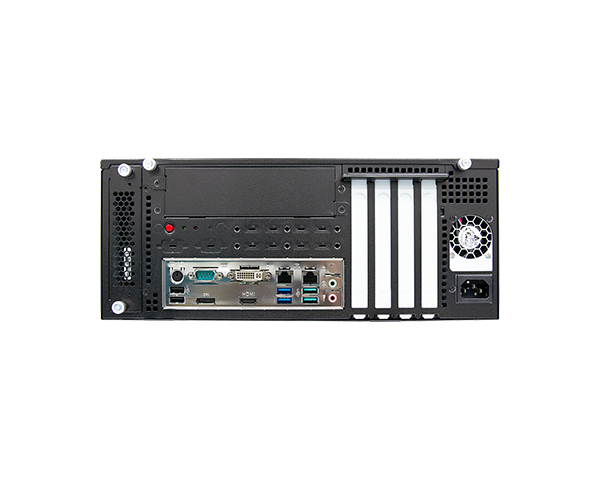

2 x GbE (RJ-45)

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
2 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x HDMI
1 x DVI-I (DVI-D signal)
1 x DP++

1 x Line-out
1 x Mic-in
1 x Line-in (opt.)

1 x Power button
1 x Reset button

2 x DB-9 Cutout
8 x USB 2.0 Cutout

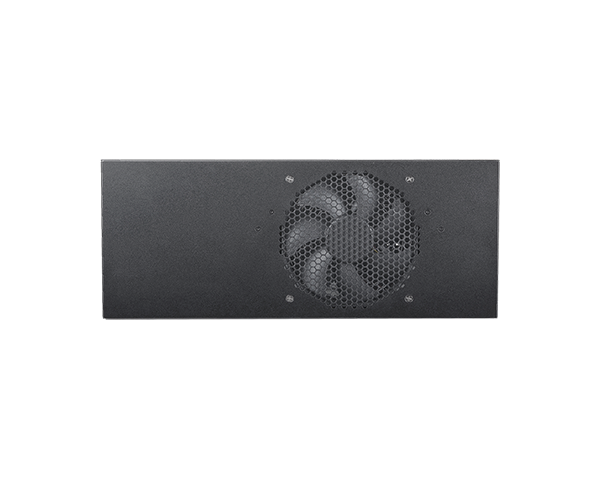

1 x 12cm system fan

System Reset, Programmable via Software from 1 to 255 Seconds

Infineon TPM1.2/2.0 (optional)

Flex ATX 150W/250W/350W/400W/500W (250W Default)

Windows 10

Linux

0 to 45°C

0 to 60°C

5 to 95% RH (non-condensing)

Sheet Metal

Wall mount

349 x 140.2 x 290.9mm (13.74" x 5.52" x 11.45")

7.7kg

no coating or black coating

Operating: 3G Non-operating: 5G

Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G

ISTA Project 1A

CE, FCC Class A, RoHS
