WM646-ADS｜Intel®｜産業用コンピューター｜DFI

14th Generation Intel® LGA 1700 Socket Processors
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

[WM646-ADS-R680E] Intel® R680E Chipset
[WM646-ADS-Q670E] Intel® Q670E Chipset

[WM646-ADS-R680E] Four 288-pin UDIMM up to 128GB
[WM646-ADS-R680E] Dual Channel DDR4 3200 MHz (ECC support only)

[WM646-ADS-Q670E] Four 288-pin UDIMM up to 128GB
[WM646-ADS-Q670E] Dual Channel DDR4 3200 MHz

AMI SPI 256Mbit

Intel® UHD Graphics 700 series

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x VGA
2 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

VGA + 2 DP++ + HDMI

3 x 3.5” HDD
1 x Slim ODD

1 x PCIe x16 (Gen5)
4 x PCIe x4 (Gen4)
2 x PCI
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E as option, MOQ required)
1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe share with PCIe x4 slot#2 as optional, MOQ required)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen3 NVMe/Intel Optane Memory support)

Realtek ALC888

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

[WM646-ADS-R680E] 1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
[WM646-ADS-R680E] 1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G)
[WM646-ADS-R680E] 2 x Intel® x550-AT2 (10 GBASE-T/1 GbE/100 Mbps) (R680E only, no support WOL)

[WM646-ADS-Q670E] 1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
[WM646-ADS-Q670E] 1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G)

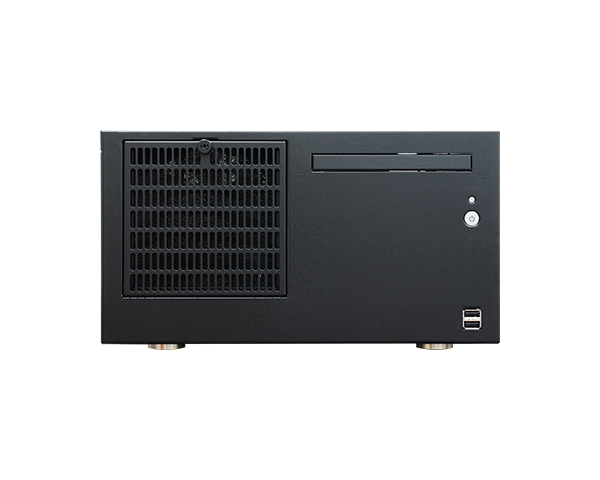

2 x USB (USB 3.0 Optional)

1 x Power Button

1 x Power LED
1 x HDD LED

1 x Slim ODD (Optional)

12cm Cooling-FAN + Door + Filter

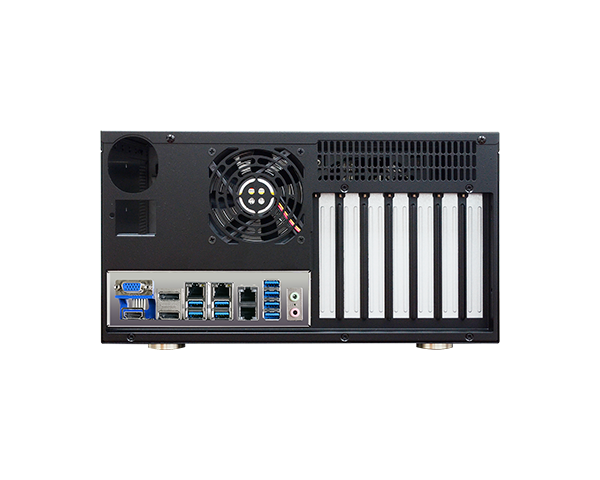

2 x 2.5GbE
2 x 10GbE (Optional)

4 x USB 3.2 Gen2
4 x USB 3.2 Gen1

2 x DP++
1 x VGA
1 x HDMI 2.0a

1 x Line-out
1 x Mic-in

2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)

[WM646-ADS-R680E] 2 x USB 3.2 Gen2 Key B box header (Gen2)
[WM646-ADS-R680E] 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
[WM646-ADS-R680E] 1 x USB 2.0 Vertical Type A

[WM646-ADS-Q670E] 2 x USB 3.2 Gen2 Key B box header (Gen1)
[WM646-ADS-Q670E] 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
[WM646-ADS-Q670E] 1 x USB 2.0 Vertical Type A

1 x Front Audio Header
1 x S/PDIF

4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

1 x 8-bit DIO

1 x SMBus

1 x PS/2 (2.54mm pitch)

Front: 1 x 12cm Fan (Door with Filter)
Rear: 1 x 8cm Fan

System Reset, Programmable via Software from 1 to 255 Seconds

Flex ATX 350W / 400W / 500W / 650W
150x81.5x40.5mm

Windows 10
Windows 11

Linux (Ubuntu)

0 to 45°C

0 to 60°C

5 to 95% RH (non-condensing)

Sheet metal, SGCC

Wall mount (Optional Wall mount kits)

332.0 x 345.50 x 173.0 mm
12.67" x 13.60" x 6.82"

6.9 kg

Black

Operating: 3G Non-operating: 5G

Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G

ISTA Project 1A

CE, FCC Class A, RoHS
