KH960-CM238/QM175|Intel®|System-On-Modules|DFI

KH960-CM238/QM175
Home System-On-Modules COM Express Basic KH960-CM238/QM175
  • 7th Gen Intel® Core™, Intel® CM238/QM175 Chipset
  • Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
  • Multiple expansion: 1 PCIe x16, 8 PCIe x1
  • Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
  • Dual channel DDR4 2400MHz SODIMM up to 32GB
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

4K2K Display
1G Ethernet
PCIe x16
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification

KH960-CM238/QM175 Related Tags

#IoT#Intel#4K2K Display#1G Ethernet#PCIe x16#Windows#Linux#HDMI#VGA#DP#DDR4#RoHS Certification

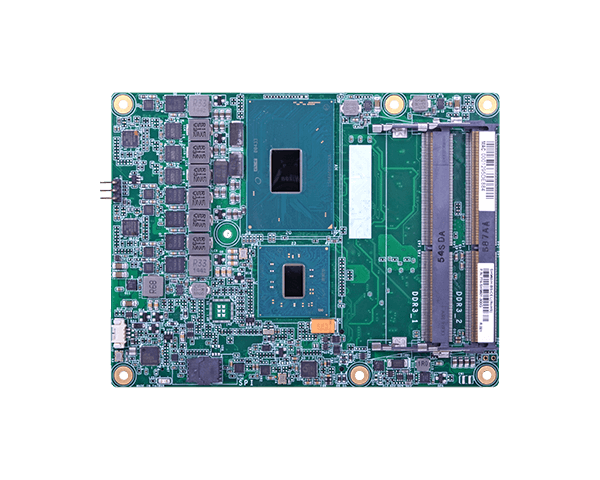

COM Express Type 6, KH960-CM238/QM175
COM Express Type 6, KH960-CM238/QM175
COM Express Type 6, KH960-CM238/QM175
System
Processor
7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® E3-1505M v6 Processor, Quad Core, 8M Cache, 3.0GHz (4.0GHz), 45W
Intel® Xeon® E3-1505L v6 Processor, Quad Core, 8M Cache, 2.2GHz (3.0GHz), 25W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
Chipset
Intel® CM238 Chipset (Support ECC)
Intel® QM175 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2400MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
2 x DDI (HDMI/DVI/DP++)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz 24bpp
DVI: resolution up to 1920x1200 @ 60Hz
DP++/eDP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI or VGA + DDI1 + DDI2
eDP + 2 DDI (available upon request)
Expansion
Interface
1 x PCIe x16 or 2 x PCIe x8 (Gen 3)
8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
I/O
USB
4 x USB 3.0
8 x USB 2.0
SATA
4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
DIO
1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
"Typical: 12V @ 1.2727A (15.272Watt)
Max.: 12V @ 7.927A (95.124Watt)"
OS Support
OS Support
Windows: Windows 10 IoT Enterprise 64-bit
LINUX: Yocto Project v2.2
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
"1626537 hrs @ 25°C; 991264 hrs @ 45°C; 660112 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled"
Mechanism
Dimensions
COM Express® Basic 95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R2.1, Type 6
Standards and Certifications
Certifications
RoHS
Packing List
Packing List
1 KH960-CM238/QM175 board
1 Cooler (Height: 36.58mm) Standard: A71-111026-000G
or 1 Cooler (Height: 45.3mm) Wide-Temp: A71-111040-000G
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KH960-CM238TS-1505M
    Part Number :
    770-KH9602-800G
    Description :
    Cooler, Intel Xeon E3-1505M v6, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C
  • Model Name :
    KH960-QM175BS-7442EQ
    Part Number :
    770-KH9602-700G
    Description :
    Cooler, Intel Core i5-7442EQ, 1 eDP, 1 DDI, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    KH960-QM175BS-7442EQ
    Part Number :
    770-KH9602-400G
    Description :
    Cooler, Intel Core i5-7442EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    KH960-QM175BS-7440EQ
    Part Number :
    770-KH9602-300G
    Description :
    Cooler, Intel Core i5-7440EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    KH960-QM175BS-7820EQ
    Part Number :
    770-KH9602-200G
    Description :
    Cooler, Intel Core i7-7820EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    KH960-CM238BS-1505L
    Part Number :
    770-KH9602-100G
    Description :
    Cooler, Intel Xeon E3-1505L v6, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C
  • Model Name :
    KH960-CM238BS-1505M
    Part Number :
    770-KH9602-000G
    Description :
    Cooler, Intel Xeon E3-1505M v6, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

* Core i3 is supported upon request with MOQ requirement.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader
    Part Number :
    A71-011073-000G
    Description :
    Height: 11mm
  • Item Name :
    COM332-B carrier board kit
    Part Number :
    770-CM3321-000G
    Description :
