CS100｜Intel®｜Industrial Motherboards｜DFI

CS100
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX CS100
  • 9th/8th Gen Intel® Core™ with Intel® Q370/C246/H310
  • 2 DDR4 2400/2666MHz SODIMM up to 32GB
  • Three independent display: LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++
  • Multiple Expansions: 1 PCIe x16 (Gen 3), 1 Full-size Mini PCIe (Q370/C246); 1 PCIe x16 (Gen 3), 1 mSATA (H310)
  • Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.1 Gen 2, 2 USB 3.1 Gen 1, 4 USB 2.0 (Q370/C246); 2 Intel GbE, 2 COM, 4 USB 3.1 Gen 1, 4 USB 2.0 (H310)
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
Fanless Design
4K2K Display
Windows
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KC Certification
UKCA Certification

CS100 Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#4K2K Display#PCIe x16#Windows#Linux#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#KC Certification#UKCA Certification
CS100
CS100
CS100

Related Products:

Select All - Clear
System
Processor
9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 80W
Intel® Xeon E-2176G Processor (Core 6; Max speed 4.7 GHz; TDP 80W) (support ECC Memory)
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC Memory)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC Memory)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC Memory)
Chipset
Intel® Q370/C246/H310 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2400/2666MHz (C246 supoort ECC)
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 630 (Pentium G5400, Celeron G4900 support Intel® UHD Graphics 610)
Feature
OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS
1 x VGA
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple Displays
LVDS+VGA+DP++, LVDS+DP++ +DP++, VGA+ DP++ +DP++
Expansion
Interface
Q370/C246:
1 x PCIe x16 (Gen 3)
1 x Full-size Mini PCIe (& mSATA)
H310:
1 x PCIe x16 (Gen 3)
1 x mSATA
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
C246/Q370: 1 x Intel® I219LM PHY, 1 x Intel® i210AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)
H310: 1 x Intel® I219V PHY, 1 x Intel® i210AT PCIe (10/100/1000Mbps)

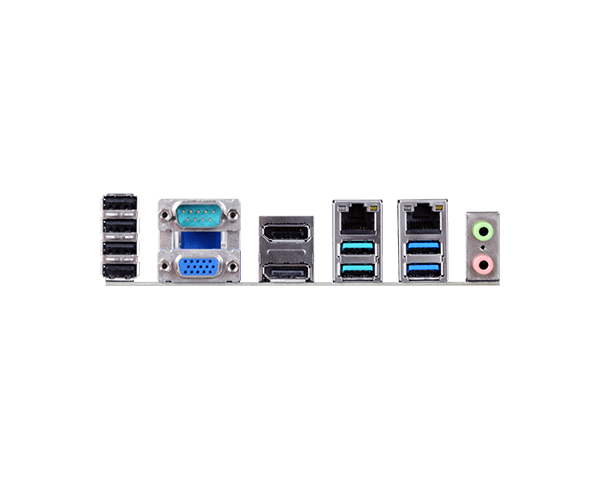

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9)
USB
Q370/C246:
2 x USB 3.1 Gen2
2 x USB 3.1 Gen1
4 x USB 2.0
H310:
4 x USB 3.1 Gen1
4 x USB 2.0
Display
1 x VGA
2 x DP++
Audio
1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x RS-232 (RS-232 w/ power)(2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x S/PDIF
1 x Front Audio
SATA
3 x SATA 3.0 (up to 6Gb/s) (RAID 0/1/5)
DIO
1 x 8-bit DIO
LPC
1 x LPC (support LPC EXT-RS232/RS485 module)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0 (available upon request)
Power
Type
ATX
Connector
4-pin ATX 12V power
24-pin ATX power
Consumption
Idle: i7-8700 65W: 12V @ 0.39A (4.68W), 5V @ 0.53A (2.65W), 3.3V @ 0.23A (0.795W)
Max: i7-8700 65W: 12V @ 11.24A (134.88W), 5V @ 1.14A (5.7W), 3.3V @ 0.25A (0.825W)
Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
CS100-C246: 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C
CS100-Q370: 639,615 hrs @ 25°C; 393,053 hrs @ 45°C ; 259,094 hrs @ 60°C
CS100-H310: 640,703 hrs @ 25°C; 393,874 hrs @ 45°C ; 259,692 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, KC, UKCA
Packing List
Packing List
1 CS100 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 I/O shield A49-CS1000-000G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS100-H310D     Part Number :
     770-CS1002-000G     Description :
    2 DDR4 SODIMM, 2 DP++, 1 LVDS, 1 VGA, 2 LAN, 2 COM, 4 USB 3.1 Gen1, 4 USB 2.0, 0 to 60°C
  • Model Name :
    CS100-Q370D     Part Number :
     770-CS1002-100G     Description :
    2 DDR4 SODIMM, 2 DP++, 1 LVDS, 1 VGA, 2 LAN, 2 COM, 2 USB 3.1 Gen2, 2 USB 3.1 Gen1, 4 USB 2.0, 0 to 60°C
  • Model Name :
    CS100-C246D     Part Number :
     770-CS1002-200G     Description :
    2 DDR4 SODIMM, 2 DP++, 1 LVDS, 1 VGA, 2 LAN, 2 COM, 2 USB 3.1 Gen2, 2 USB 3.1 Gen1, 4 USB 2.0, 0 to 60°C
  • Model Name :
    CS100-H310D     Part Number :
     770-CS1002-300G     Description :
    2 DDR4 SODIMM, 2 DP++, 1 LVDS, 1 VGA, 2 LAN, 2 COM, 4 USB 3.1 Gen1, 4 USB 2.0, TPM2.0, 0 to 60°C
  • Model Name :
    CS100-Q370DRM     Part Number :
     770-CS1002-400G     Description :
    2 DDR4 SODIMM, 2 DP++, 1 LVDS, 1 VGA, 2 LAN, 2 COM, 2 USB 3.1 Gen2, 2 USB 3.1 Gen1, 4 USB 2.0, TPM2.0, 0 to 60°C
  • Model Name :
    CS100-C246DRM     Part Number :
     770-CS1002-500G     Description :
    2 DDR4 SODIMM, 2 DP++, 1 LVDS, 1 VGA, 2 LAN, 2 COM, 2 USB 3.1 Gen2, 2 USB 3.1 Gen1, 4 USB 2.0, TPM2.0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM port cable     Part Number :
     A81-015011-001G     Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data with power cable     Part Number :
     332-553001-005G     Description :
    Length: 500mm
  • Item Name :
    Thermal solution     Part Number :
     A71-103004-000G
    A71-101158-000G
    761-103001-000G     Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    LPC EXT-RS232 module     Part Number :
     770-EXTRS1-000G     Description :
    4 x RS232 ports
  • Item Name :
    LPC EXT-RS485 module     Part Number :
     770-EXTRS1-100G     Description :
    4 x RS485 ports
