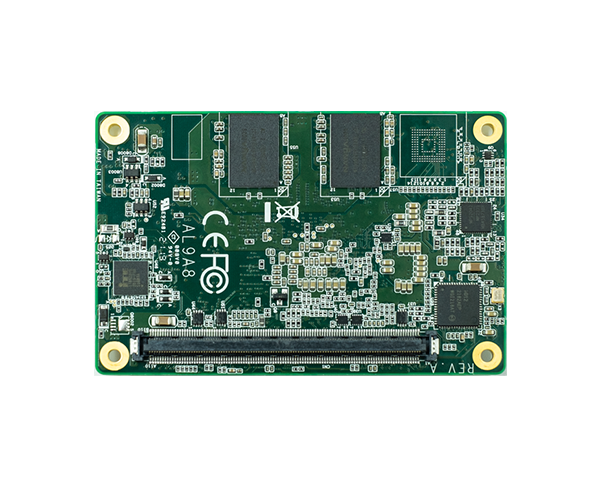

AL9A8
Home System-On-Modules COM Express Mini AL9A8
  • Intel Atom® E3900 Processor Series
  • Multiple expansions: 4 PCIe x1
  • Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
  • 1 LVDS/eDP, 1 DDI (HDMI/DP++) Supports dual displays: DDI + LVDS/eDP
  • Dual Channel LPDDR4-2400MHz Memory Down up to 8GB
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
Fanless Design
Compact Size
4K2K Display
Multiple Expansion
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification
UKCA Certification

AL9A8 Related Tags

#Slim Bootloader#IoT#Intel#Fanless Design#Compact Size#4K2K Display#Windows#Linux#HDMI#DP#Multiple Expansion#DDR4#CE Certification#FCC Certification#UKCA Certification
AL9A8
AL9A8
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
4GB/8GB Memory Down
Dual Channel LPDDR4-2400MHz
BIOS
AMI SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Display
1 x DDI (HDMI/DP++)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30 Hz
DP++: resolution up to 4096x2304 @ 60Hz / 3840x2160 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
Dual Displays
DDI + LVDS
DDI + eDP
Expansion
Interface
4 x PCIe x1 (Gen 2)
1 x SDIO (available upon request)
1 x LPC
1 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
Audio
Internal
HD Audio
Ethernet
Controller
1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)
I/O
USB
2 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
SSD
1 x eMMC up to 128 GByte
GPIO
1 x 6-bit GPIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
BIOS default support FTPM, TPM2.0 by request.
Power
Type
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
Consumption
Typical: E3940: 12V @ 0.34A (4.08W)
Max.: E3940:12V @ 1.62A (19.44W)
OS Support
OS Support (UEFI Only)
Windows: Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: -5 to 65°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
1,090,551 hrs @ 25°C; 509,776 hrs @ 45°C; 283,622 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Mini
84mm (3.30") x 55mm (2.16")
Compliance
PICMG COM Express® R2.1, Type 10
Standards and Certifications
Certifications
CE, FCC, UKCA
Packing List
Packing List
· 1 AL9A8 board
· 1 Heat sink:
A71-008160-000G (E Series)
A71-008160-010G (N Series)
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    AL9A8-B43-E3930
    Part Number :
    770-AL9A81-000G
    Description :
    4GB LPDDR4,LVDS,R.A F/G MOTHER BOARD RoHS
  • Model Name :
    AL9A8-T83-E3940
    Part Number :
    770-AL9A81-100G
    Description :
    8GB LPDDR4,LVDS,-40~85℃,R.A F/G MOTHER BOARD RoHS
  • Model Name :
    AL9A8-T83-E3950
    Part Number :
    770-AL9A81-200G
    Description :
    8GB LPDDR4,LVDS,-40~85℃,R.A F/G MOTHER BOARD RoHS
  • Model Name :
    AL9A8-B83-N4200
    Part Number :
    770-AL9A81-300G
    Description :
    AL9A8-B80-N4200:8GB LPDDR4,LVDS,R.A F/G MOTHER BOARD RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM100-B carrier board kit
    Part Number :
    770-COM104-000G
    Description :
  • Item Name :
    Heat Spreader
    Part Number :
    A71-808350-000G
    Description :

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
