VC900-M8M|NXP|Industrial Computers|DFI

VC900-M8M
Home Application-Specific System In-vehicle System VC900-M8M
  • ARM-Based in-vehicle system
  • NXP i.MX8 series
  • 16GB/64GB eMMC and micro SD card slot
  • Rich I/O: 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.0, 1 Micro USB (OTG)
  • Wide voltage: 9~36V vehicle power input with ACC/IGN function
  • Wide temperature: -20°C~65°C operation without active fan

Status : Sample Available QUOTE NOW

Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Fanless Design
Linux
Android
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification
E-Mark (E13) Certification
DFI Proprietary Motherboard

VC900-M8M Related Tags

#CAN-Bus#Fanless Design#Compact Size#1G Ethernet#Linux#Android#HDMI#E-Mark (E13) Certification#CE Certification#FCC Certification#In-Vehicle#NXP i.MX 8M
VC900-M8M
VC900-M8M
VC900-M8M
System
Processor
NXP i.MX8M Quad, Cortex-A53 1.3GHz (by model)
NXP i.MX8M Dual, Cortex-A53 1.3GHz (by model)
Memory
On board memory 2GB/4GB (by model)
Single channel LPDDR4 up to 3200 MHz
Graphics
Display
1 x HDMI
resolution up to 1920x1080 @ 60 Hz
Storage
External
Micro SD card slot
Internal
eMMC 5.1 16GB on board, support up to 64GB (optional)
LED
Indicators
1 x Status LED
Sensor
Sensor
6 axis IMU (3 Accelerometer + 3 Gyroscope)

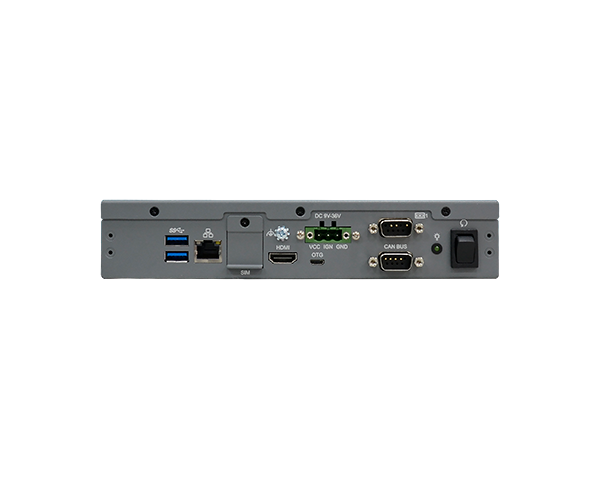

Front I/O
Ethernet
1 x Giga Lan, RJ-45
Serial
1 x RS-232/422/485 (COM1)
USB
2 x USB 3.0, type A
1 x OTG, micro USB
Display
1 x HDMI
Audio
with Amplifier to support 2W speaker (optional)
1 x Line-out & 1 x MIC-in (internal header)
Buttons
1 x Power reset button
CANBus
1 x CANbus, DB-9

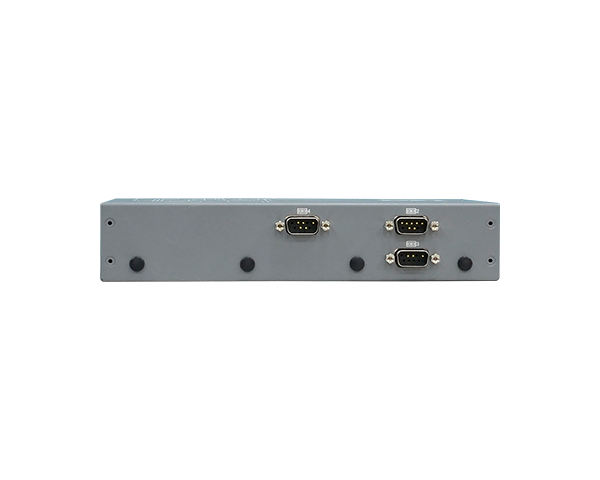

Rear I/O
Serial
1 x RS-232(TX,RX,RTS,CTS) (COM2)
2 x RS-232(TX,RX) (COM3/COM4)
Antenna
4 x Antenna holes for LTE 4G, WiFi and GPS
Power
Type
Wide range 9~36V with ACC/IGN function
Connector
3-pole terminal block
OS Support
Linux
Yocto Linux 2.5
Android
Android 9.0 (option)
Environment
Operating Temperature
-20 to 65°C
Storage Temperature
-40 to 85°C
Relative Humidity
10 to 90% RH (non-condensing)
Mechanism
Construction
Sheet Metal
Mounting
DIN-Rail mount
Wall mount
Dimensions (W x H x D)
200 x 120 x 45mm
Weight
1.9kg
Color
Black
Standards and Certifications
Shock
Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
Vibration
Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
Certifications
CE, FCC, e-Mark
Packing List
Packing List
1 x VC900-M8M system unit
1 x 3-pole terminal block cable for power input
1 x Wall mount bracket/screw pack
1 x Quick installation guide
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    VC900-M8M
    Part Number :
    750-VC900-000G
    Description :
    VC900-M8M: M8MT51,Fan-less BOX PC;NXP i.MX 8M Dual Cortex-A53;2GB DDR4;eMMC 16GB; F/G SYSTEM RoHS
  • Model Name :
    VC900-M8M
    Part Number :
    750-VC900-100G
    Description :
    VC900-M8M: M8MT51,Fan-less BOX PC;NXP i.MX 8M Quad Cortex-A53;4GB DDR4;eMMC 16GB; F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    LTE 4G
    Part Number :
    761-0EM06E-000G
    Description :
    4G Module Kit, Quectel LTE-A Cat 6 M.2 Module, EM06-E
  • Item Name :
    WiFi + BT
    Part Number :
    612-RTL882-000G
    Description :
    Wi-Fi+BT, ENLI M.2 2230 Combo Module Card, RTL8822CE
