RM840-PR810|Intel®|Industrial Computers|DFI

RM840-PR810
Home Industrial Computers Mini-ITX/µATX/ATX IPC System RM840-PR810
  • Intel® 1st/2nd Xeon® Scalable Family
  • Mass Memory Capacity : 12 DDR4 RDIMM up to 384GB
  • Front-accessible system fan and USB interfaces
  • Supports 7 expansion slots : 4 PCIe x16, 1 x PCIe x8, 1 x PCI, 1 M.2 M Key
  • Rich I/O : 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3.0, 5 USB 2.0, 6 USB 3.1 Gen1
  • 15-Year CPU Life Cycle Support Until Q3' 33 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

4K2K Display
PCIe x16
Windows
Linux
VGA
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

RM840-PR810 Related Tags

#Intel#PCIe x16#Windows#Linux#VGA#Multiple Expansion#10G Ethernet#DDR4#CE Certification#FCC Certification
RM840-PR810
RM840-PR810
RM840-PR810
System
Processor
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W

2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209T (8 Cores, 11M Cache, up to 3.2 GHz); 70W
Chipset
Intel® C622 Chipset
Memory
12 x 288-pin RDIMM up to 384GB
Single Channel DDR4 up to 2133/2400/2666/2933 MHZ
(Support Intel DC Persistent Memory)
BIOS
Insyde
Graphics
Controller
SEM2500
Feature
IPMI
Display
1 x VGA (opt.)
Storage
External
External 2x 5.25” (option change 1x 2.5” by covert bracket)
External 1x 3.5” (option change 1x 2.5” by covert bracket)
Internal
1 M.2 M Key2280 (PCIe Gen3 x4 NVMe/SATA)
Interface
4 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3)
1 x PCI
1 x BMC Module slot for SEM2500/2510 (IPMI)
1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module
Audio
Audio Codec
ALC888
Interface
Onboard Front Audio Pin Header
Ethernet
Controller
2 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® x557-AT2 (10GbE)

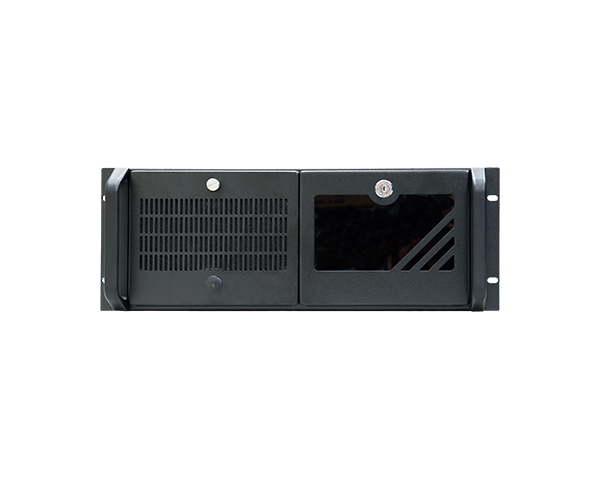

Front I/O
Buttons
1 x Power Button
1 x Reset Button
LED Indicators
1 x Power LED
1 x HDD LED

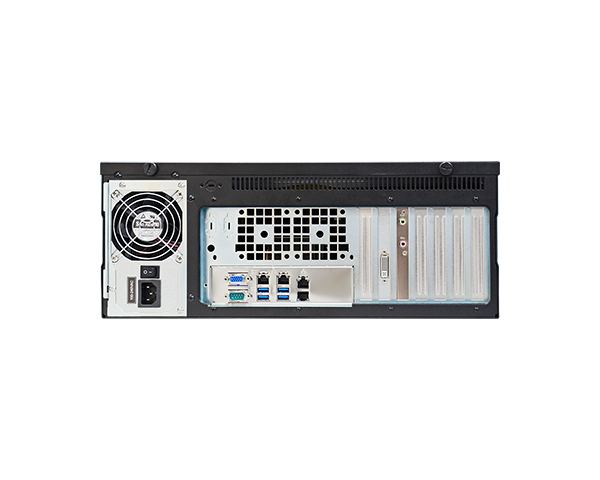

Rear I/O
Ethernet
2 x GbE (RJ-45)
2 x 10 GbE x557-AT2
IPMI 2.0: 1 share w/ i210AT (opt.)
Serial
1 x RS-232 (DB-9)
USB
4 x USB 3.1 Gen1
2 x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)
Display
1 x VGA (opt.)
Audio
Onboard Front Audio Pin Header
Cutout
DB-9 x 2
Button
Buttons
1 x Power Button
1 x Reset Button
Cooling
Fan
2 x (90mm = 51.0CFM) Fans
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM2.0 (opt.)
Power
Supply
ATX PS/2 Power Supply 650W
OS Support
Microsoft
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Windows Server 2016
Linux
Linux
Environment
Operating Temperature
0 to 40°C
Storage Temperature
-30 to 60°C with RTC Battery;
-40 to 85°C without RTC Battery
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Dimensions
483 x 177 x 510 mm
Construction
Heavy Industrial Steel
Mounting
Flexible hold down bar
Weight
17.9kg
Color
Black
Standards and Certifications
Shock
Operating: 3G
Non-operating: 5G
Vibration
Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G
Package Drop
ISTA Project 1A
Certifications
CE, FCC class A
Packing List
Packing List
· 1 RM840-PR810 System Unit
· 2 CPU Cooler (LGA3657, 205W)
· 2 SATA Cable (650mm, with Lock)
· 2 System Fan (90mm, 51.0CFM ea)
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RM840-PR810-C222IR
    Part Number :
    750-RM8400-000G
    Description :
    RM840-PR810:4U Rackmount System PR810-C222IR, Dual CPU cooler, 650W, F/G RoHS
