IDP-ME Series｜Industrial Panel PCs & Displays｜DFI

IDP-ME Series
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Industrial Display & Touch Display IDP-ME Series
  • Touch Type: Projected Capacitive Support 10 points Multi-Touch
  • IP Rating: IP65 Front Panel
  • Support 2 Signal Interfaces: VGA/HDMI
  • Operating Temperature: 0°C ~ 50°C

Status : Launched QUOTE NOW

IP65 Front Panel Protection
HDMI
VGA
12V DC-in
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

IDP-ME Series Related Tags

#IDP Series#IP65 Front Panel Protection#HDMI#VGA#12V DC-in#CE Certification#FCC Certification
Industrial Display and Monitor Side-1

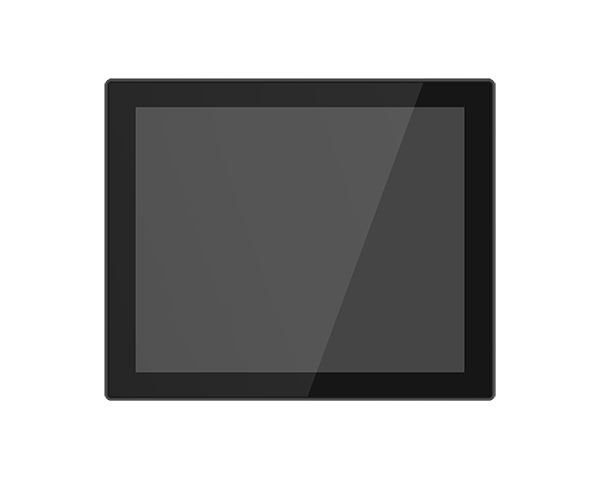

Industrial Display and Monitor Front-1

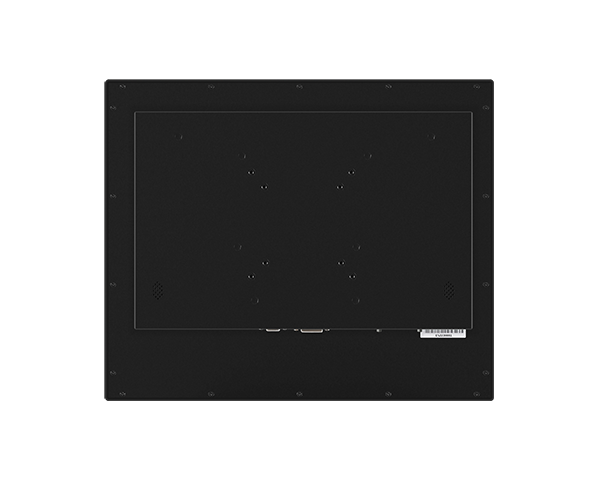

Industrial Display and Monitor Back-1

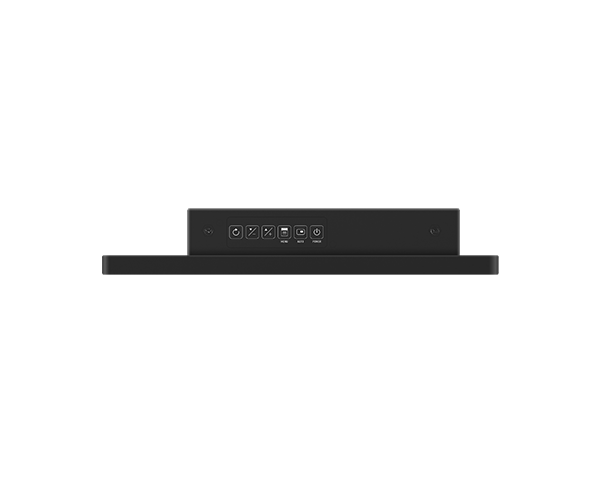

Industrial Display and Monitor IO-1

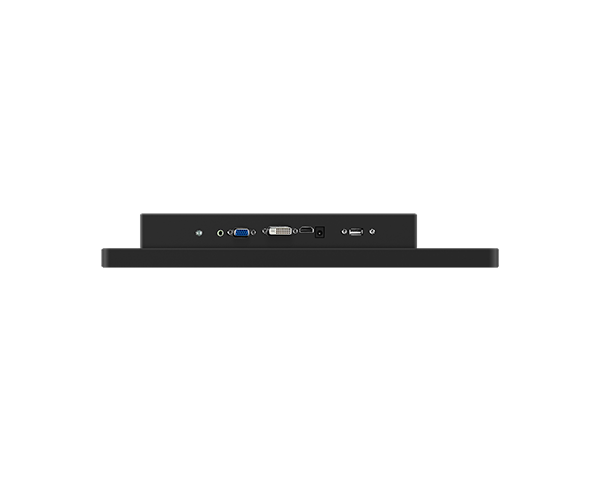

Industrial Display and Monitor IO-2

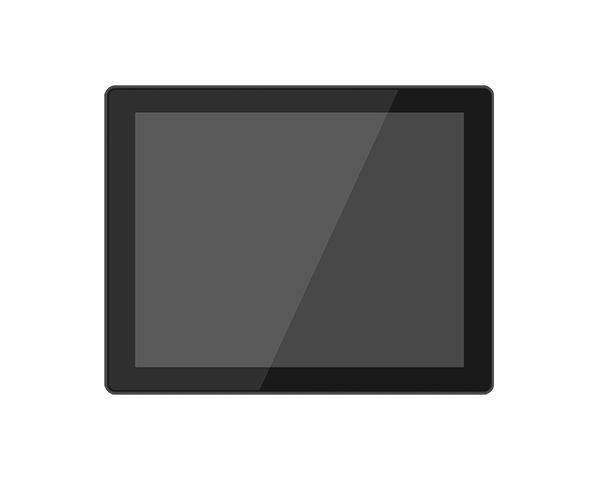

Industrial Display and Monitor Front-2

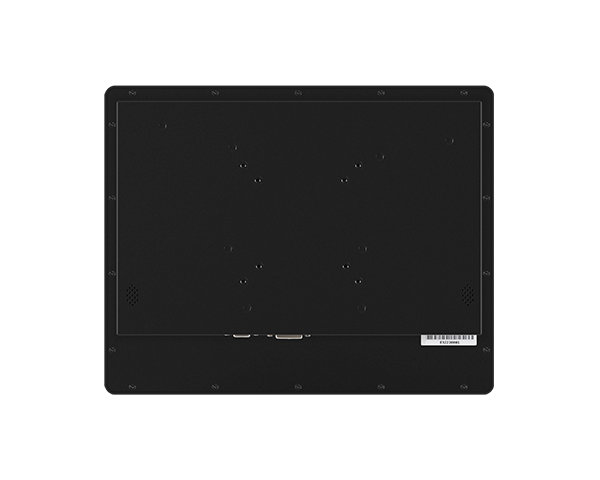

Industrial Display and Monitor Back-2

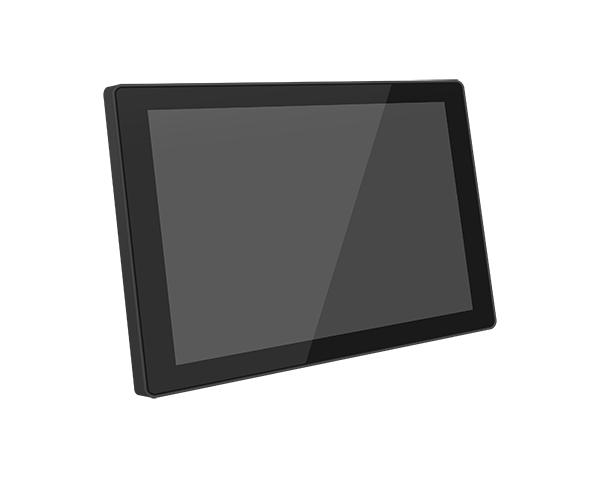

Industrial Display and Monitor Side-2

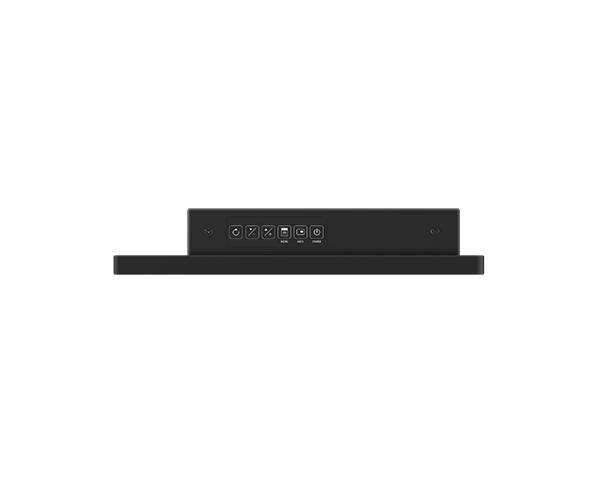

Industrial Display and Monitor IO-3

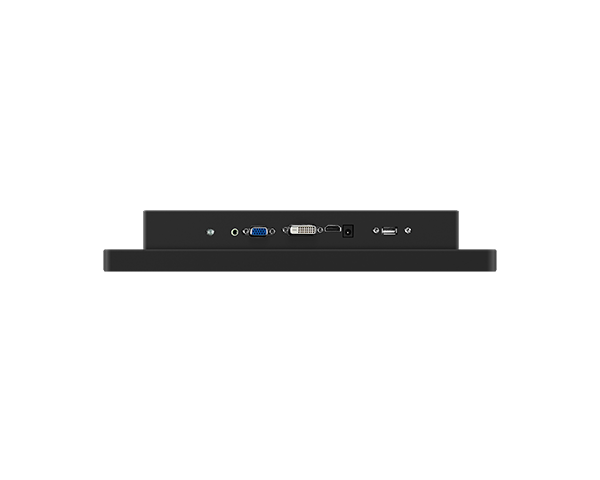

Industrial Display and Monitor IO-4

Related Products:

Select All - Clear
Display and Touch Screen
Display
[IDP150-ME]15" TFT LCD
[IDP170-ME]17" TFT LCD
[IDP190-ME]19" TFT LCD
Brightness
[IDP150-ME]300 nits (without Touch screen)
[IDP170-ME]250 nits (without Touch screen)
[IDP190-ME]250 nits (without Touch screen)
Contrast
[IDP150-ME]2500:1
[IDP170-ME]1000:1
[IDP190-ME]1000:1
View Angle
[IDP150-ME]176(H) / 176(V)
[IDP170-ME]170(H) / 160(V)
[IDP190-ME]170(H) / 160(V)
Backlight Lifetime
[IDP150-ME]50,000 Hrs
[IDP170-ME]30,000 Hrs
[IDP190-ME]30,000 hrs (Min.)
Max. Resolution
[IDP150-ME]1024 x 768
[IDP170-ME]1280 x 1024
[IDP190-ME]1280 x 1024
Touch Type
Projected Capacitive Support 10 points Multi-Touch
Color Depth
Color Depth: 8 bits
Display Colors: 16.7M
Audio
Speaker
2 x 2W Speakers (option)
I/O
USB
USB Type A
Display
VGA: 1 x VGA
DVI: 1 x DVI (option)
HDMI: 1 x HDMI 1.2
Audio
Audio: 1 x Audio
Input ports
Power Input: 1 x DC Jack
Power
Type
AC Input
12V DC-IN
Consumption
Typical: 30W, normal operation
Environment
Humidity
20% to 80% non-condensing
Operating Temperature
0°C ~ 50°C
Storage Temperature
-10°C ~ 60°C
Mechanism
Construction
Aluminum front Frame
Metal back-cover
Mounting
VESA mount
75 x 75mm & 100 x100mm
Dimensions (W x H x D)
[IDP150-ME]358.7 x 281.7 x 55 mm
[IDP170-ME]399.6 x 331 x 57 mm
[IDP190-ME]TBD
Weight
[IDP150-ME]5 kg
[IDP170-ME]6 kg
[IDP190-ME]TBD
Color
Black
Standards and Certifications
Certifications
CE / FCC Class A
IP Rating
IP65 Front Panel
Packing List
Packing List
1 VGA cable
1 USB cable
1 Power Adapter
1 Power code
Others
OSD Keypad
5 x Control buttons on the rear side
Power Auto Up Down Menu
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    IDP150-ME     Part Number :
     790-IDP150-100G     Description :
    IDP150-RTL: 15" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS
  • Model Name :
    IDP170-ME     Part Number :
     790-IDP170-100G     Description :
    IDP170-RTL: 17" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS
  • Model Name :
    IDP190-ME     Part Number :
     790-IDP190-000G     Description :
    IDP190-RTL: 19" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS
Optional Items

* TBD
