RK701｜Rockchip｜System-On-Modules｜DFI

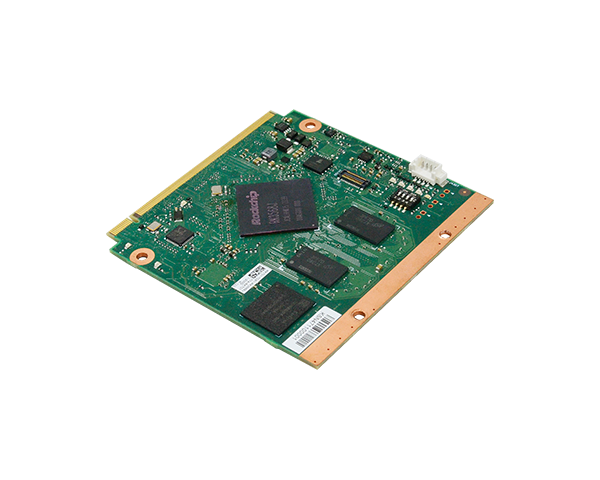

RK701
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home System-On-Modules Qseven RK701
  • 2GB/4GB/8GB DDR4 Memory Down
  • Supports 4K / 2K resolution
  • 1 eDP/LVDS + 1 DP/TMDS
  • Multiple expansions: 2 PCIe 3.0, 1 PCIe 2.0
  • Rich I/O: 1 Realtek GbE, 1 USB 3.0, 4 USB 2.0

Status : Sample Available QUOTE NOW

4K2K Display
Multiple Expansion
DDR4
Dual Display
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RK701 Related Tags

#eDP#Rockchip Processor#4K2K Display#1G Ethernet#Linux#DP#DDR4#RoHS Certification#CE Certification#FCC Certification
RK701
RK701

Related Products:

Select All - Clear
System
Processor
Rockchip RK3568 quad-core Cortex-A55 @2.0GHz
Rockchip RK3568J quad-core Cortex-A55 @1.8GHz
Memory
2GB/4GB/8GB DDR4 Memory Down 3200MHZ
Graphics
Controller
G52 2EE
Feature
OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0
Display
1 x eDP/LVDS
1 x DP/TMDS
HDMI: resolution up to 4096 x 2160 @30HZ
LVDS: resolution up to1024 x 600 @60Hz
eDP: resolution up to 3840 x 2160 @60Hz
Dual Displays
eDP/LVDS + DP/TMDS
Expansion
Interface
2 x PCIe x1 (Gen 3)
1 x PCIe x1 (Gen 2)
1 x uSD (available upon request)
1 x I2C
2 x SPI (SPI0 set to TPM 2.0)
1 x CAN bus
2 x UART
1 x MIPI-CSI (available upon request)
Audio
Interface
HD Audio
Ethernet
Controller
1 x RTL8211F-CG
I/O
USB
1 x USB 3.0
4 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s, SATA 1 Co-Lay PCIE Gen 2)
eMMC
Supports up to 128GB eMMC, NC as default
eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)
GPIO
1 x 4-bit GPIO
Security
TPM
TPM 2.0
Power
Type
5V, 5VSB, VCC_RTC
Consumption
TBD
OS Support
Linux
Linux
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Humidity
Operating: 5 to 90% RH Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Qseven form factor
70mm (2.76") x 70mm (2.76")
Compliance
Qseven specification revision 2.1
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
• 1 RK700 board
• 1 Heat sink
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RK701-BC41-RK3568     Part Number :
     770-RK7011-000G     Description :
    Rockchip RK3568, 4GB DDR4 Memory Down, LVDS, 1 USB 3.0, 4 USB 2.0, 16GB eMMC, 0 to 60°C
  • Model Name :
    RK701-BC81-RK3568     Part Number :
     770-RK7011-100G     Description :
    Rockchip RK3568, 8GB DDR4 Memory Down, LVDS, 1 USB 3.0, 4 USB 2.0, 16GB eMMC, 0 to 60°C
  • Model Name :
    RK701-TC81-RK3568J     Part Number :
     770-RK7011-200G     Description :
    Rockchip RK3568J, 8GB DDR4 Memory Down, LVDS, 1 USB 3.0, 4 USB 2.0, 16GB eMMC, -40 to 85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Qseven Carrier Board     Part Number :
         Description :
  • Item Name :
    Heat spreader     Part Number :
         Description :
