GM903｜Industrial Motherboards｜DFI

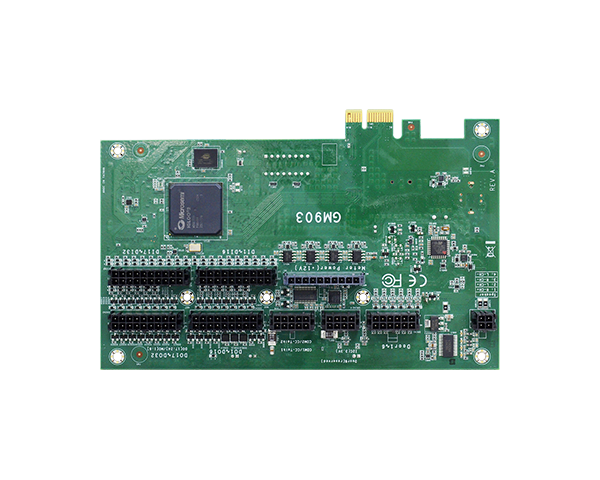

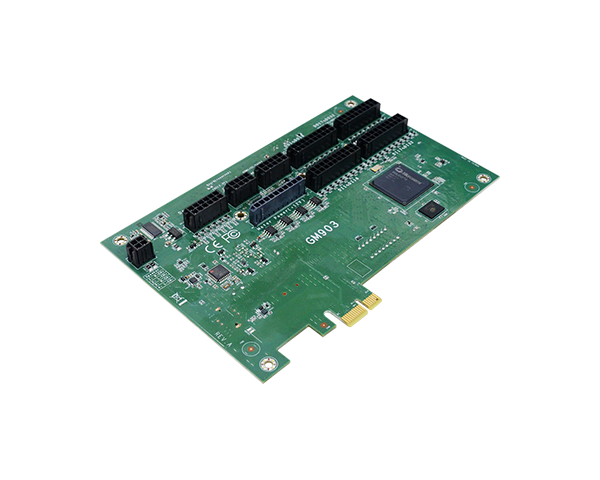

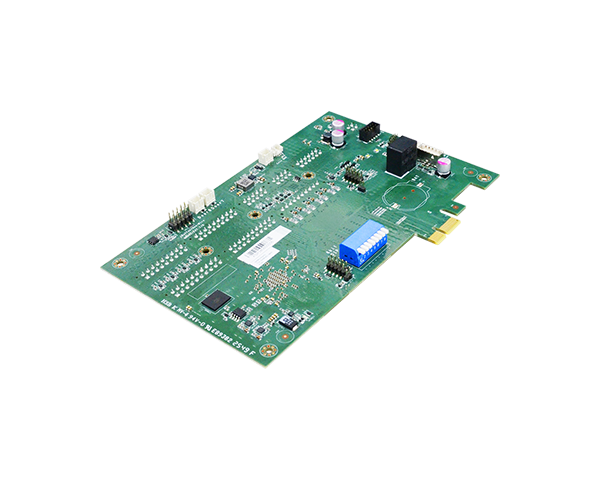

GM903
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Application-Specific System Agile Gaming Solutions GM903
  • FPGA & MCU gaming I/O control board
  • Support PCIex1 slot and High/Low speed connectors
  • 8 Intrusion detection and battery backed NVRAM
  • Reliable Data Security (Secure Boot, Secure Content)

Status : Preliminary QUOTE NOW

12V DC-in
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

GM903 Related Tags

#FGPA#PCIe#12V DC-in#Gaming
GM903｜Industrial Motherboards｜DFI
GM903｜Industrial Motherboards｜DFI
GM903｜Industrial Motherboards｜DFI
GM903｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
Processor
FPGA + MCU
FPGA & MUC implementation of the gaming features controller
Internal I/O
USB
Pin header for USB 2.0 signal input
UART
Pin header for UART signal input
I2C
Pin header for I2C signal input
Host Interface
High/low speed connector
1 x PCIe x1 slot (Gold finger)
Gaming
Intrusion Detection
8 x intrusion detection
Logs Date/ Time of latest 64 events
Operates with and without system active (G3 power from BAT)
5 Years data retention during AC off
DI/DO
32-bit Digital Input
32-bit OC output (29-bit x 500mA, 3-bit x 3A, up to 24V), Low Active
iButton
Support iButton 1-wire protocol
Support ds1996 device (default)
Meter Power
8 ports can be set as meter output with disconnect detect
Serial
2 x RS232/CCTalk (TX/RX)
Audio
Stereo 6W+6W Class D Audio AMP Output
Security
(By request)
SHA-256 or AES-256
128B RBG
SRAM (NVRAM)
Support 2pcs SRAM (BGA type)
2 x SRAM supported with battery backup, Default 4MB/Single (up to 16MB/Dual)
Backup to Retain Data for 5 years during AC off
EEPROM
EEPROM 2KB
Coin battery
1 x CR2032 Lithium 3V/220mAh with socket type
1 header for cable type
Hardware
Dimension
170mm x 113 mm
Power
Type
12V DC in
Country of Origin
Country of Origin
Taiwan
