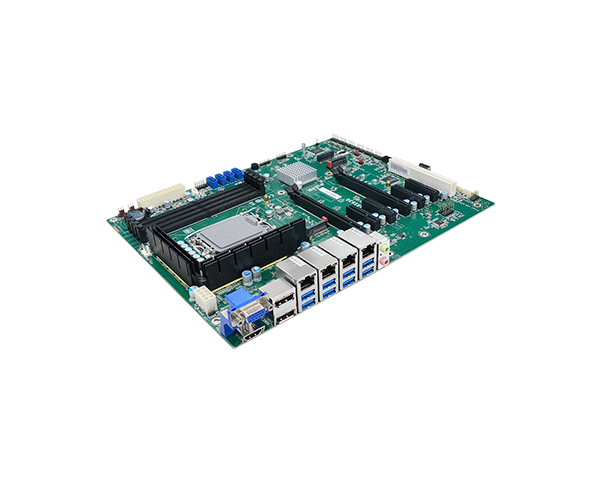

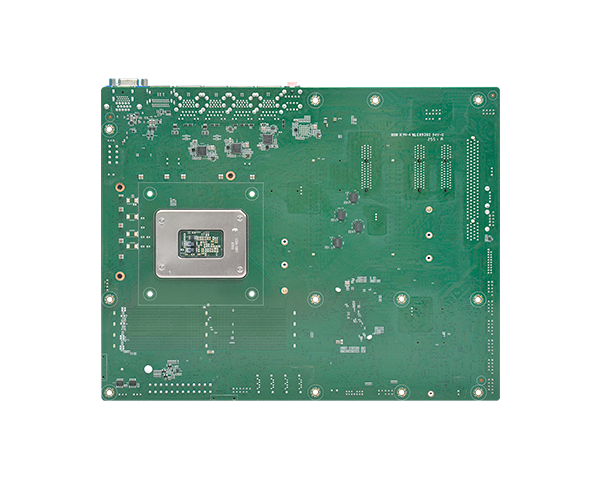

ARS630-W880/Q870｜Intel®｜Industrial Motherboards｜DFI

ARS630-W880/Q870
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards ATX ARS630-W880/Q870
  • Intel® Core™ Ultra with Intel® W880/Q870 chipset
  • 4 DDR5 UDIMM up to 256GB
  • Quad Displays: VGA, 2 DP++, HDMI
  • Supports 4K resolution
  • Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 A Key (for OOB)
  • Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
  • Typically supports 5-Year CPU Life Cycle Until Q1’30 (Based on Intel IOTG Roadmap)
  • Support M2A-OOB

Status : Launched QUOTE NOW

4K2K Display
PCIe x16
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
2.5G Ethernet
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ARS630-W880/Q870 Related Tags

#DDR5#Windows 10#M2A-OOB#Intel® Core™ Ultra processors #IoT#Windows 11#Intel#4K2K Display#1G Ethernet#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
ARS630-W880/Q870｜Intel®｜Industrial Motherboards｜DFI
ARS630-W880/Q870｜Intel®｜Industrial Motherboards｜DFI
ARS630-W880/Q870｜Intel®｜Industrial Motherboards｜DFI
ARS630-W880/Q870｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra LGA 1851 Socket Processors, TDP support up to 125W
Intel® Core™ Ultra 9 285 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ Ultra 9 285T (24 Cores, 36M Cache, up to 5.4 GHz); 35W
Intel® Core™ Ultra 7 265 (20 Cores, 30M Cache, up to 5.3 GHz); 65W
Intel® Core™ Ultra 7 265T (20 Cores, 30M Cache, up to 5.3 GHz); 35W
Intel® Core™ Ultra 5 245 (14 Cores, 24M Cache, up to 5.1 GHz); 65W
Intel® Core™ Ultra 5 245T (14 Cores, 24M Cache, up to 5.1 GHz); 35W
Intel® Core™ Ultra 5 225 (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ Ultra 5 225T (10 Cores, 20M Cache, up to 4.9 GHz); 35W
Chipset
[ARS630-W880] Intel® W880 Chipset
[ARS630-Q870] Intel® Q870 Chipset
Memory
[ARS630-W880] Four 288-pin UDIMM up to 256GB (ECC/Non-ECC)
[ARS630-W880] Dual Channel DDR5 up to 5600 MHz
[ARS630-W880] *Speed support list follow User’s Manual

[ARS630-Q870] Four 288-pin UDIMM up to 256GB (Non-ECC)
[ARS630-Q870] Dual Channel DDR5 up to 5600 MHz
[ARS630-Q870] *Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
2 x DP++
1 x HDMI 2.0a
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays
VGA + 2 DP++ + HDMI
Expansion
Interface
2 x PCIe x16 (Gen 5, 16 or 8+8)
-Support PCIE1/PCIE4 : single at x16(PCIE1)
-Support PCIE1/PCIE4 : dual at x8 (PCIE1)/x8 (PCIE4)
-Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper

1 x PCIE x4 (Gen 4, x1, open edge slot)
3 x PCIe x4 (Gen 4, open edge slot)
1 x PCI
M.2
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen5 NVMe)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA)
1 x M.2 A key for M2-OOB
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
[ARS630-W880] 1 x Intel® I226-LM
[ARS630-W880] 1 x Intel® I210-AT (co-lay I226-V)
[ARS630-W880] 2 x Intel® I226-V

[ARS630-Q870] 1 x Intel® I226-LM
[ARS630-Q870] 1 x Intel® I210-AT (co-lay I226-V)

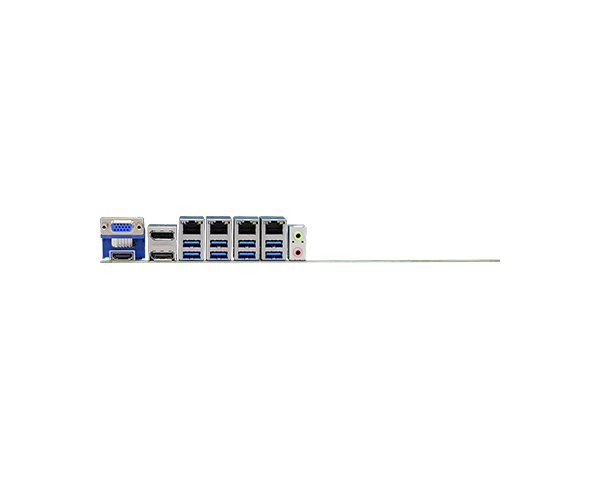

Rear I/O
Ethernet
[ARS630-W880] 3 x 2.5GbE (RJ-45)
[ARS630-W880] 1 x 1GbE (RJ-45, opt. 2.5GbE)

[ARS630-Q870] 1 x 2.5GbE (RJ-45)
[ARS630-Q870] 1 x 1GbE (RJ-45, opt. 2.5GbE)
USB
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
Display
1 x VGA
2 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)
Internal I/O
Serial
2 x RS-232/422/485
4 x RS-232
USB
2 x USB 3.2 Gen1
1 x USB 2.0 Vertical Type A
2 x USB 2.0 Pin Header (2.54mm pitch)
Audio
1 x Front Audio
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
4-IN / 8-OUT DIO
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
eSPI
1 x eSPI
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 33.3mm
Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
· 1 ARS630 motherboard
· 1 COM port cables (Length: 300mm, 2 x COM ports)
· 1 Serial ATA data cable (Length: 500mm)
· 1 I/O shield
· 1 M.2 screw/standoff
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ARS630-W880     Part Number :
     770-ARS6301-000G     Description :
    Intel® W880 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 4 2.5GbE LAN
  • Model Name :
    ARS630-W880     Part Number :
     770-ARS6301-100G     Description :
    Intel® W880 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 1 GbE LAN, 3 2.5GbE LAN
  • Model Name :
    ARS630-Q870     Part Number :
     770-ARS6301-200G     Description :
    Intel® Q870 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 2 2.5GbE LAN
  • Model Name :
    ARS630-Q870     Part Number :
     770-ARS6301-300G     Description :
    Intel® Q870 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 1 GbE LAN, 1 2.5GbE LAN
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen1 port cable     Part Number :
     A81-001052-023G     Description :
    Length: 320mm
  • Item Name :
    COM port cable     Part Number :
     A81-015026-023G     Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable     Part Number :
     332-553001-005G
    A81-002128-017G     Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution     Part Number :
     A71-101136-000G
    A71-101137-000G
    A71-101145-000G     Description :
    For 35W, Height: 29.39mm
    For 65W, Height: 46mm
    For 95W/125W, Height: 110mm
  • Item Name :
    DP to HDMI Dongle     Part Number :
     612-D2H13M-000G     Description :
  • Item Name :
    M.2-COM4     Part Number :
     770-M2COM1-000G     Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN     Part Number :
     770-M22LN2-000G     Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE     Part Number :
     770-M22PS2-000G     Description :
    M.2 PSE module
