ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI

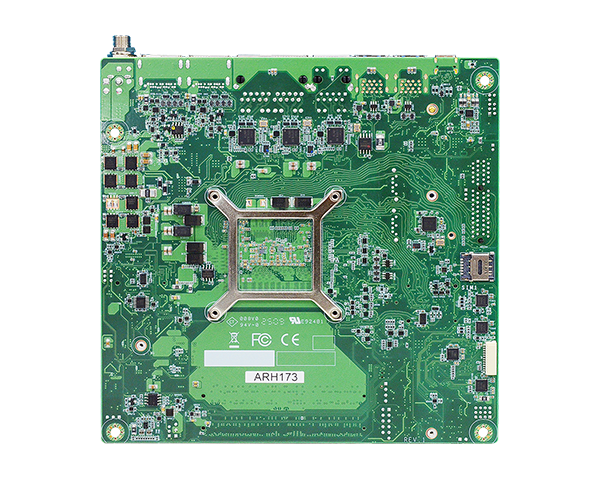

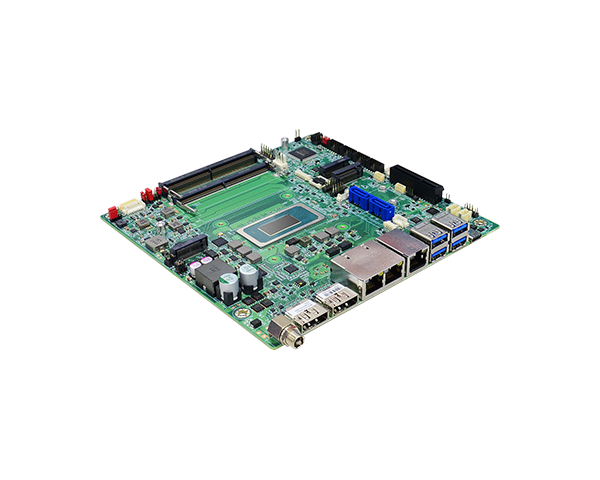

ARH171/ARH173
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX ARH171/ARH173
  • Intel® Arrow Lake H/U, Meteor Lake H/U Processors
  • 2 DDR5 SODIMM up to 96GB/128GB
  • Quad Displays: 1 DP++ + 1 HDMI + 1 USB Type C + 1 M2A Modular (eDP/LVDS/VGA/HDMI/M21)
  • Multiple Expansion: 1 PCIe x4, 1 M.2 M key, 1 M.2 B key, 1 M.2 A Key
  • Support MIPI-CSI for camera & HDMI-IN module
  • ARL-U/H Typically supports 5-Year CPU Life Cycle Until Q4’ 29 (Based on Intel’s roadmap)
  • MTL-U/H Typically supports 10-Year CPU Life Cycle Until Q4’ 32 (Based on Intel’s roadmap

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ARH171/ARH173 Related Tags

#DDR5#Edge AI Computing#USB Type-C DP#SMBus#M.2#12-28V DC-in#M.2 A display#Intel® Arrow Lake H/U Processors#Intel® Meteor Lake H/U Processors#IoT#AI#Windows 11#Intel#4K2K Display#Windows#Linux#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI
ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI
ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI
ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI
ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI
ARH171/ARH173｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
· Intel® Arrow Lake H/U Processors
Intel® Core™ Ultra 7 265H (28W) (vPro)
Intel® Core™ Ultra 7 255H (28W)
Intel® Core™ Ultra 5 235H (28W) (vPro)
Intel® Core™ Ultra 5 225H (28W)
Intel® Core™ Ultra 7 265U (15W) (vPro)
Intel® Core™ Ultra7 255U (15W)
Intel® Core™ Ultra 5 235U (15W) (vPro)
Intel® Core™ Ultra 5 225U (15W)
· Intel® Meteor Lake H/U Processors
Intel® Core™ Ultra 7 165H (28W) (vPro)
Intel® Core™ Ultra 7 155H (28W)
Intel® Core™ Ultra 5 135H (28W) (vPro)
Intel® Core™ Ultra 5 125H (28W)
Intel® Core™ Ultra 7 165U (15W) (vPro)
Intel® Core™ Ultra 7 155U (15W)
Intel® Core™ Ultra 5 135U (15W) (vPro)
Intel® Core™ Ultra 5 125U (15W)
Memory
2x 262-pin SODIMM up to 96GB(MTL)/128GB(ARL)
Dual Channel DDR5 5600MHz(MTL)/6400MHz(ARL)
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Arc™ Graphics 140T (265H/255H), Intel® Arc™ 130T GPU(225H)
Intel® Graphics (265U/225U/255U)
Feature
DirectX12.2, OpenGL4.6, OpenCL3.0, H.264, H.265, AV1, VP9, Intel® Quick Sync Video
AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
Display
1 x DP++
1 x HDMI
HDMI: resolution up to 4096x2160 @60Hz
DP: resolution up to 4096x2304 @60Hz
USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W): resolution up to 4096x2304 @60Hz (HBR2)
Quad Displays
1 DP++ + 1 HDMI + 1 USB Type C + 1 M2A Modular (eDP/LVDS/VGA/HDMI/M21)
Expansion
Interface
· 1 x PCIe Gen 4 x4
· 1 x M.2 2242/2280 M Key (PCIE Gen4x4, support NVMe )
· 1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB3.2 Gen2, USB2.0, selected by BIOS)
· 1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
· 1 x M.2 3042/3060 A Key (Standoff 3030)
－Standard (Default)
M2A Display(eDP/LVDS/VGA/HDMI/DP)
M2AM21(PCIEx1,USB3/USB2,SIM)
－DFI self define (Jumper Opt.)
M2A-MIPI for camera
M2A-HDMIIN for video capture
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
LAN1/2: i226V/IT (10/100/1000/2.5G speeds)
LAN3(vPro): i226LM/IT (10/100/1000/2.5G speeds)

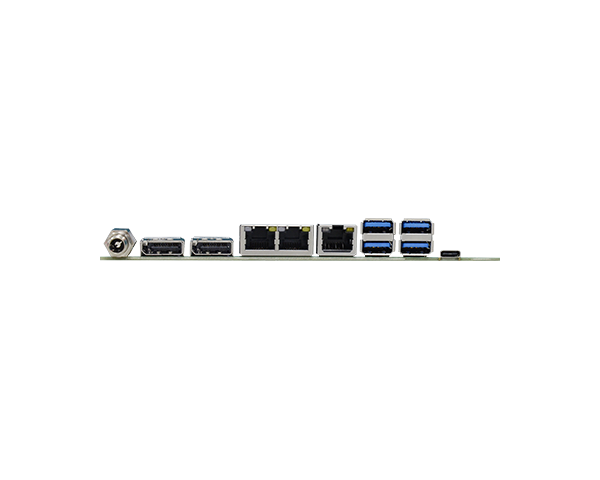

Rear I/O
Ethernet
Up to 3 x 2.5GHz RJ45 (LAN 3 colayout with internal vertical RJ45 by option)
USB
4 x USB 3.2 Gen2
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
Display
1 x DP++
1 x HDMI
Internal I/O
Serial
2 x RS-232/422/485 (2.0mm pitch)
1 x RS-232 with power (2.0mm pitch)
1 x RS-232 (2.0mm pitch) colay with DIO-4bit (JP1)
USB
4 x USB 2.0 (2.0mm pitch)
Display
1 x M.2 A key, support M2A-Display (eDP/LVDS/VGA/HDMI/DP)
Audio
1 x Line-out/Mic-in
SATA
2 x SATA 3.0
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
[ARH171] Single 12VDC
[ARH173] Wide Range 12~28VDC
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straightl Type Connector (4-pin) (available upon request)
Consumption
Idle: TBD
Max: TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows IoT Enterprise 11 LTSC
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C, -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: TBD mm
Top Side: TBD mm
Bottom Side: TBD mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
· 1 ARH171/ARH173 motherboard
· 1 COM port cable with bracket (Length: 250mm, 1 x COM ports), A81-015115-018G
· 1 Serial ATA data with power cable (Length: 300mm), A81-002144-018G
· 4 M.2 screw/standoff

· 1 I/O Shield
- (2 LAN, Regular type)(For Sample), TBD
- (3 LAN, Regular type)(For Sample), TBD
- (2 LAN, Thin type)(For Sample), TBD
- (3 LAN, Thin type)(For Sample), TBD

· 1 Cooler/Heat sink
- (Wide/Normal Temp. -Cooler for 28W),TBD (Default)
- (Wide Temp. Fanless HS for 15W), TBD (By request)
- (Normal Temp. Fanless HS for 15W), TBD (By request)
Country of Origin
Country of Origin
Taiwan
