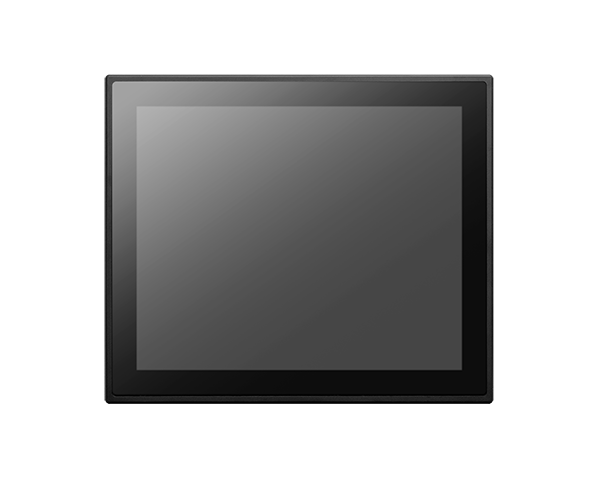

KS170-MTH｜Intel®｜Industrial Panel PCs & Displays｜DFI

KS170-MTH
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS170-MTH
  • Intel® Arrow Lake U Processors, Intel® Meteor Lake U Processors
  • Touch Type: Projected Capacitive / 5-Wire Resistive Touch
  • Triple Display: HDMI + DP++ + USB Type C
  • Multiple Expansions: M.2 3042/2280 M Key, M.2 2242/3042/3052 B Key, M.2 2230 E Key
  • Wide Voltage: 9-36V input

Status : Preliminary QUOTE NOW

Wide Voltage: 9~36V DC-in
Fanless Design
Multiple Expansion
Triple Independent Display
Projected Capacitive Touch
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

KS170-MTH Related Tags

#M.2#IoT#Intel#Fanless Design#4K2K Display#Windows#Linux#HDMI#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
KS170-MTH｜Intel®｜Industrial Panel PCs & Displays｜DFI
KS170-MTH｜Intel®｜Industrial Panel PCs & Displays｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Arrow Lake U Processors
Intel® Core™ Ultra7 255U (15W)
Intel® Core™ Ultra 5 225U (15W)

Intel® Meteor Lake U Processors
Intel® Core™ Ultra7 155U (15W)
Intel® Core™ Ultra 5 125U (15W)
Memory
2x 262-pin SODIMM up to 96GB(MTL)/128GB(ARL)
Dual Channel DDR5 5600MHz(MTL)/6400MHz(ARL)
BIOS
AMI SPI 256Mbit
Display and Touch Screen
Display
17" TFT LCD Panel
Brightness
350 (cd/m²)
Contrast
4 : 3
Backlight Lifetime
50,000 (hours)
Max. Resolution
1280 x 1024
Touch Type
Projected Capacitive / 5-Wire Resistive Touch
Graphics
Controller
Intel® Graphics (265U/225U/255U)
Feature
DirectX12.2, OpenGL4.6, OpenCL3.0, H.264, H.265, AV1, VP9,
Intel® Quick Sync Video AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
Display
1 x DP++
1 x HDMI
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
DP++: resolution up to 4096 x 2304 @ 60Hz
HDMI: resolution up to 4096 x 2304 @60Hz
USB Type C: resolution up to 4096x2304 @60Hz
Triple Displays
DP++ + HDMI + USB Type C
Storage
External
1 x 2.5" SATA 3.0
Expansion
Interface
1 x M.2 2242/2280 M Key (PCIE Gen4x4, support NVMe )
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB3.2 Gen2, USB2.0, selected by BIOS)
1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
I/O
Ethernet
3 x 2.5GbE
Serial
2 x RS-232/422/485
2 x RS-232
USB
4 x USB 3.2 Gen2
1 x USB Type C
Display
1 x DP++
1 x HDMI
Buttons
1 x Power Button
Audio
1 x line-out
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
DC 9-36V
Connector
DC Jack
OS Support
Microsoft
Windows 11 IoT Enterprise 64bit
Linux
Linux
Environment
Operating Temperature
-10~60°C with 0.6m/s air flow
Storage Temperature
-30 ~ 80°C
Relative Humidity
10 to 95% @ 40°C, non-condensing
Mechanism
Construction
Aluminum Front Bezel + Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
VESA mount 100 x 100
Dimensions (W x H x D)
403.8 x 336.4 x TBD mm
Weight
TBD
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
MIL-STD-810G Standard
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
MIL-STD-810G Standard
Certifications
CE, FCC Class A, RoHS, UKCA
Packing List
Packing List
• 1 KS170-MTH Touch Panel PC
• 1 Poron foam
• 1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS170P-MTHW36P-155U     Part Number :
     750-KS17001-000G     Description :
    Display Type: 17" TFT XGA, Projected Capacitive Touch, Intel® Core™ Ultra 7 155U, DC Input 9-36V DC jack, F/G SYSTEM RoHS
  • Model Name :
    KS170P-MTHW36R-155U     Part Number :
     750-KS17001-100G     Description :
    Display Type: 17" TFT XGA, 5-Wire Resistive Touch, Intel® Core™ Ultra 7 155U, DC Input 9-36V DC jack, F/G SYSTEM RoHS
  • Model Name :
    KS170P-MTHW36P-125U     Part Number :
     750-KS17001-200G     Description :
    Display Type: 17" TFT XGA, Projected Capacitive Touch, Intel® Core™ Ultra 5 125U, DC Input 9-36V DC jack, F/G SYSTEM RoHS
  • Model Name :
    KS170P-MTHW36R-125U     Part Number :
     750-KS17001-300     Description :
    Display Type: 17" TFT XGA, 5-Wire Resistive Touch, Intel® Core™ Ultra 5 125U, DC Input 9-36V DC jack, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter     Part Number :
     671-112005-100G     Description :
    120W, 24/5A, Leve 6, RoHS
  • Item Name :
    Panel Mount     Part Number :
     761-TPC120-000G     Description :
    ACCESSORY PANEL MOUNT KITS, RoHS

* Please contact your regional sales representative if you need memory and storage information.
