Home System-On-Modules Carrier Board SMX331

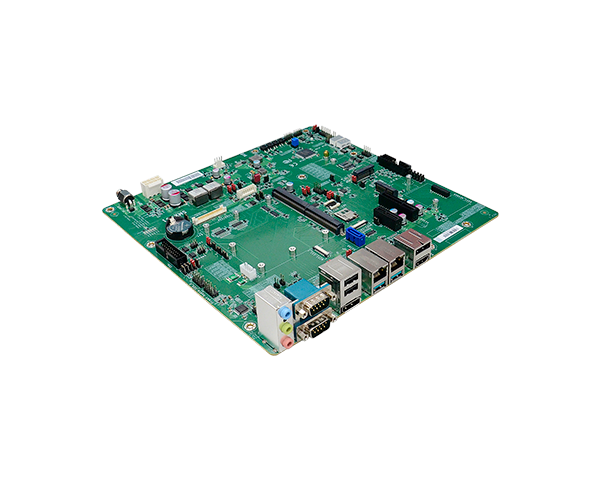

  • SMARC® V2.2 Carrier Board, microATX Form Factor
  • Multiple Expansion: 1 PCIe x4, 1 PCex1, 1 M.2 E Key 2230
  • Rich I/O: 2 2.5 GbE, 2 USB 3.2 (Gen1), 2 USB 2.0

Status : Preliminary QUOTE NOW

Multiple Expansion
Rich I/O
Multiple Displays
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

SMX331 Related Tags

#LVDS#eDP#PCIe#HDMI#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
SMX331｜System-On-Modules｜DFI
SMX331｜System-On-Modules｜DFI
SMX331｜System-On-Modules｜DFI
SMX331｜System-On-Modules｜DFI

Related Products:

Select All - Clear
Graphics
Display
1 x HDMI
1 x LVDS/eDP (eDP available upon request)
2 x DP
Expansion
Interface
1 x PCIe x4
1 x PCIe x1
1 x M.2 E Key 2230
1 x M.2 B Key 3042/3052
Audio
Audio Codec
Realtek ALC888S-VD2-GR

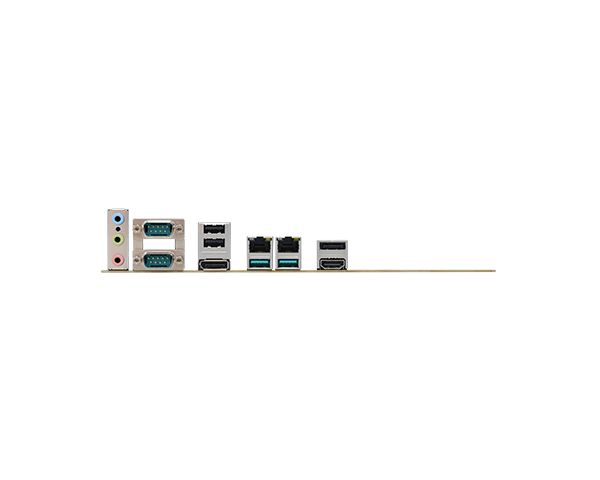

I/O
Ethernet
2 x 2.5GbE (RJ-45)
Serial
2 x RS232
USB
2 x USB 3.2 (Gen1)
2 x USB 2.0
Display
2 x DP
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x Serial Interface Connector (TX/RX)
Display
1 x eDP/LVDS LCD Connector
1 x LCD/Inverter Power
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 14-bit DIO
SMBus
1 x SMBus
CANBus
2 x CAN bus
I2C
1 x I2C
Other I/O
MIPI-CSI: 1 x 4-lanes MIPI-CSI + 1 x 2-lanes MIPI-CSI
eSPI
1 x eSPI
Power
Type
1 x 8-pin ATX power connector (12V DC_In)
8.5V-20V DC-in jack
Connector
1 x 8-pin ATX power connector
1 x DC-in jack
RTC Battery
CR2032 Coin Cell
Environment
Temperature
Operating: 0 to 60°C or -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Compliance
SMARC V2.2
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• 1 COM335 board
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SMX331     Part Number :
     770-SMX3311-000G     Description :
    2 2.5GbE, 3 USB 3.2, 2 USB 2.0, ATX/AT Power, -40 to 85°C
