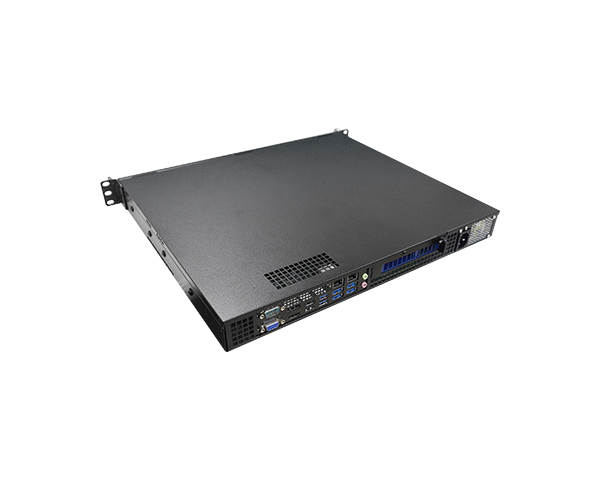

RM310-RAP｜AMD®｜Industrial Computers｜DFI

RM310-RAP
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Mini-ITX/microATX/ATX Systems RM310-RAP
  • Equipped with AMD® Ryzen™ 9000/7000/EPYC 4005 Series and AMD B650 chipset
  • Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities
  • Features dual 2.5" swappable drive bays for reliable, high-availability storage
  • Versatile I/O: 6 USB 3.2, 2 USB 2.0, 2 2.5GbE, 1 RS232, 1 VGA, 1 DP++, 1 HDMI, 1 Line-out, 1 Mic-in
  • Triple displays: 1 VGA, 1 DP++, 1 HDMI

Status : Preliminary QUOTE NOW

PCIe x16
Triple Independent Display
Rich I/O
Rackmount Chassis
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

RM310-RAP Related Tags

#DDR5#Edge AI Computing#AMD® Ryzen™ 7000 Series#AMD® Ryzen™ 9000 Series#AMD EPYC™ 4005 Series#Windows 11#PCIe x16#Windows#HDMI#VGA#DP#Multiple Expansion#2.5G Ethernet
RM310-RAP｜AMD®｜Industrial Computers｜DFI
RM310-RAP｜AMD®｜Industrial Computers｜DFI
RM310-RAP｜AMD®｜Industrial Computers｜DFI
RM310-RAP｜AMD®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™ 9000/7000/EPYC 4005 Series AM5 Socket Processors, TDP support up to 65W
Ryzen™ 7 9700X (8 Cores, 32M Cache, up to 5.5 GHz); 65W (life cycle only to Q1' 29)
Ryzen™ 5 9600X (6 Cores, 32M Cache, up to 5.4 GHz); 65W (life cycle only to Q1' 29)
Ryzen™ 9 PRO 7945 (12 Cores, 64M Cache, up to 5.4 GHz); 65W
Ryzen™ 7 PRO 7745 (8 Cores, 32M Cache, up to 5.3 GHz); 65W
Ryzen™ 5 PRO 7645 (6 Cores, 32M Cache, up to 5.1 GHz); 65W
EPYC™ 4545P (16 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4465P (12 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4345P (8 Cores, 32M Cache, up to 5.5 GHz); 65W
EPYC™ 4245P (6 Cores, 32M Cache, up to 5.4 GHz); 65W
Chipset
AMD B650
Memory
Four 288-pin UDIMM up to 128GB (Non-ECC)
Dual Channel DDR5 5200 MHz
*Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
Graphics
Display
1 x VGA
1 x DP++
1 x HDMI 2.0
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
Storage
External
2 x 2.5" SATA SSD (RAID 0/1/5/10)
Internal
1 x M.2 2280 M key
Expansion
Interface
1 x PCIe x16
1 x M.2 2230 E key
1 x M.2 2242/2260/2280 M key
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x 2.5GbE (RJ-45)

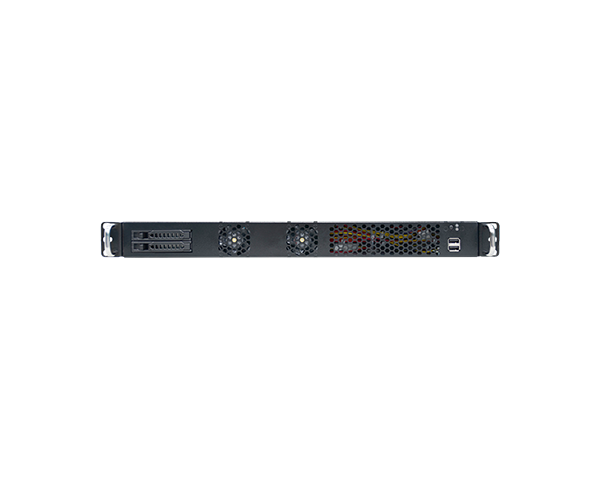

Front I/O
Buttons
1 x Power Button
LED Indicators
1 x Power LED
1 x HDD LED

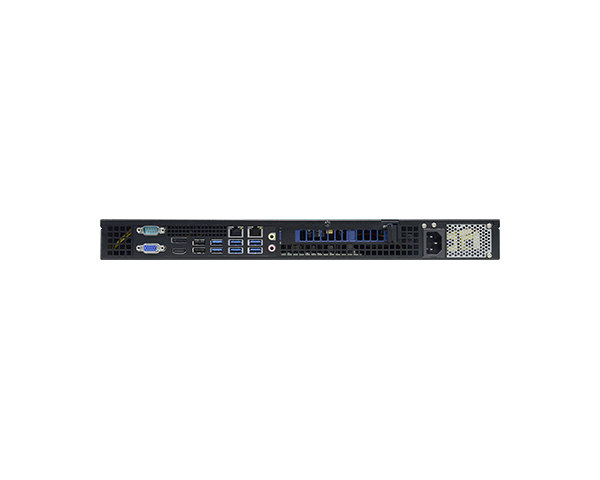

Rear I/O
Ethernet
2 x 2.5GbE
Serial
1 x RS232
USB
6 x USB 3.2
2 x USB 2.0
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
Power
Supply
Single/Redundant Power
OS Support
Microsoft
Windows 11 Enterprise
Environment
Operating Temperature
0°C to 40°C: CPU up to TBD W
Mechanism
Dimensions
431.8(W)x 385(D)x 44(H)
Construction
Heavy Industrial Steel
Mounting
Rack mount kit
Weight
TBD
Color
Black
Standards and Certifications
Certifications
TBD
Packing List
Packing List
• 1 RM310-RAP System Unit
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RM310-RAP System     Part Number :
     TBD     Description :
    TBD
