RAP311-B650
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards microATX RAP311-B650
  • AMD® Ryzen™ 9000/7000/EPYC 4005 Series with AMD B650 chipset
  • 4 DDR5 UDIMM up to 192GB
  • Triple displays: 1 VGA, 1 DP++, 1 HDMI
  • Supports 4K resolution
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 1 M.2 M key, 4 SATA 3.0
  • Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0
  • Typically supports 7-Year CPU Life Cycle Until Q1’32 (Based on AMD Roadmap)
  • Support EXT-OOB (Full)

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
2.5G Ethernet
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RAP311-B650 Related Tags

#DDR5#Edge AI Computing#AMD® Ryzen™ 7000 Series#SMBus#I2C#EXT-OOB (Full)#AMD® Ryzen™ 9000 Series#AMD EPYC™ 4005 Series#Windows 11#AMD#4K2K Display#PCIe x16#Windows#HDMI#VGA#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RAP311-B650｜AMD®｜Industrial Motherboards｜DFI
RAP311-B650｜AMD®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™ 9000 Series AM5 Socket Processors, TDP support up to 170W
Ryzen™ 9950X3D (16 Cores, 128M Cache, up to 5.7 GHz); 170W
Ryzen™ 9900X3D (12 Cores, 128M Cache, up to 5.5 GHz); 120W
Ryzen™ 9950X (16 Cores, 64M Cache, up to 5.7 GHz); 170W
Ryzen™ 9900X (12 Cores, 64M Cache, up to 5.6 GHz); 120W
Ryzen™ 9800X3D (8 Cores, 96M Cache, up to 5.12 GHz); 120W
Ryzen™ PRO 9945 (12 Cores, 64M Cache, up to 5.6 GHz); 65W
Ryzen™ PRO 9745 (8 Cores, 32M Cache, up to 5.5 GHz); 65W
Ryzen™ PRO 9645 (6 Cores, 32M Cache, up to 5.4 GHz); 65W

AMD® Ryzen™ 7000 Series AM5 Socket Processors, TDP support up to 170W
Ryzen™ PRO 7945 (12 Cores, 64M Cache, up to 5.4 GHz); 65W
Ryzen™ PRO 7745 (8 Cores, 32M Cache, up to 5.3 GHz); 65W
Ryzen™ PRO 7645 (6 Cores, 32M Cache, up to 5.1 GHz); 65W

AMD® EPYC 4005 Series AM5 Socket Processors, TDP support up to 170W
EPYC™ 4565P (16 Cores, 64M Cache, up to 5.7 GHz); 170W
EPYC™ 4545P (16 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4465P (12 Cores, 64M Cache, up to 5.4 GHz); 65W
EPYC™ 4345P (8 Cores, 32M Cache, up to 5.5 GHz); 65W
EPYC™ 4245P (6 Cores, 32M Cache, up to 5.4 GHz); 65W
Chipset
AMD B650
Memory
Four 288-pin UDIMM Dual Channel (ECC/Non-ECC)
DDR5 up to 5200 MHz (up to 128GB)(Ryzen™ 7000 Series)
DDR5 up to 5600 MHz (up to 192GB)(Ryzen™ 9000/EPYC 4005 Series)
*Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
Graphics
Controller
Navi2 Graphics
Feature
1WGP @2.2GHz max
Display
1 x VGA
1 x DP++
1 x HDMI 2.0
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
Triple Displays
1 VGA + 1 DP++ + 1 HDMI 2.0
Expansion
Interface
2 x PCIe x16 (Gen 5, x16 or x8+x8)
-Support PCIE1/PCIE3 : single at x16(PCIE1)
-Support PCIE1/PCIE3 : dual at x8(PCIE1)/x8(PCIE3)
-Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper
2 x PCIe x4 (Gen 5)
M.2
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Discrete Wifi 6E support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe support)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I226V

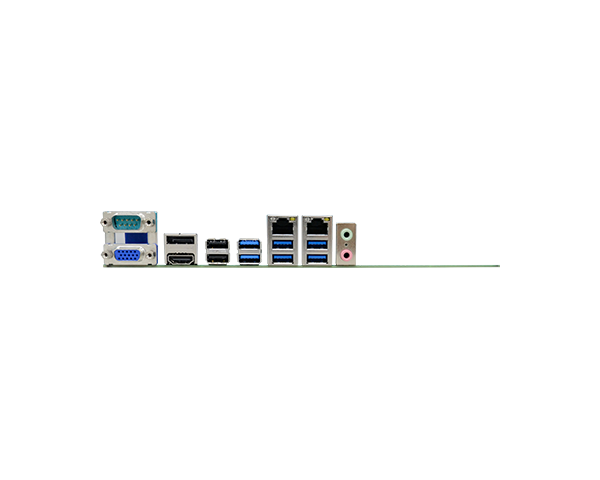

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
Serial
1 x RS232
USB
6 x USB 3.2 Gen 2
2 x USB 2.0
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
Internal I/O
Serial
1 x RS-232/422/485
2 x RS232
USB
2 x USB 3.2 Gen1
4 x USB 2.0 (colay vertical Type A)
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0
RAID 0/1/5/10
DIO
1 x 8-bit DIO
PS/2
1 x PS/2
SMBus/ I2C
1 x SMBus/ I2C
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 11 24H2 LTSC
Windows Server 2025 (only EPYC 4005 series)
Linux
Ubuntu 24.04
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 38mm
Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 RAP311-B650 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports), A81-015026-023G
1 Serial ATA data cable (Length: 500mm), 332-553001-005G
1 I/O shield, A49-RAP310-000G
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RAP311-B650     Part Number :
     770-RAP3111-000G     Description :
    AMD B650, 6 USB 3.2 Gen2 (10G), 2 USB 3.2 Gen1 (5G), 6 USB 2.0, 4 SATA 3.0, dTPM 2.0, 2 LAN, Non ECC/ECC DDR5
  • Model Name :
    RAP311-B650     Part Number :
     770-RAP3111-100G     Description :
    AMD B650, 6 USB 3.2 Gen2 (10G), 2 USB 3.2 Gen1 (5G), 6 USB 2.0, 4 SATA 3.0, fTPM 2.0, 2 LAN, Non ECC/ECC DDR5
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen1 port cable     Part Number :
     A81-001052-023G     Description :
    Length: 320mm
  • Item Name :
    COM port cable     Part Number :
     A81-015026-023G     Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable     Part Number :
     332-553001-005G
    A81-002128-017G     Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution     Part Number :
     TBD     Description :
    Cooler
  • Item Name :
    DP to HDMI Dongle     Part Number :
     612-D2H13M-000G     Description :
  • Item Name :
    M.2-COM4     Part Number :
     770-M2COM1-000G     Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN     Part Number :
     770-M22LN1-000G     Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE     Part Number :
     770-M22PS1-000G     Description :
    M.2 PSE module
