X3-BTS｜Intel®｜Industrial Computers｜DFI

Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W
Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W
Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W
Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W
Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W
Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 45W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

Intel® R680E Chipset

Two 262-pin SODIMM up to 96GB (ECC/Non-ECC)
Dual Channel DDR5 5600 MHz

AMI SPI 256Mbit

Intel® UHD Graphics 700 series

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9

1 x DP++
2 x USB-C DP Alt.Mode

1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
1 x M.2 2280 M Key (PCIe Gen3 x4/SATA)
1 x M.2 2280 M Key (PCIe Gen4 x4)
RAID 0/1

1 x M.2 2230 E Key (USB2.0 / PCIe Gen3 x1)
1 x M.2 2280 M Key (PCIe Gen4 x4/SATA, share with storage)
1 x M.2 2280 M Key (PCIe Gen3 x4/SATA, share with storage)
1 x M.2 2280 M Key (PCIe Gen4 x4, share with storage)
1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1USB 3.2 Gen1/USB 2.0)
1 x PCIe x16 slot (PCIe Gen4 x8)

Realtek ALC888S-VD2-GR

2 x Intel® I226IT PCIe (10/100/1000/2.5G speeds)

1 x Power LED
1 x HDD LED

Default is None,

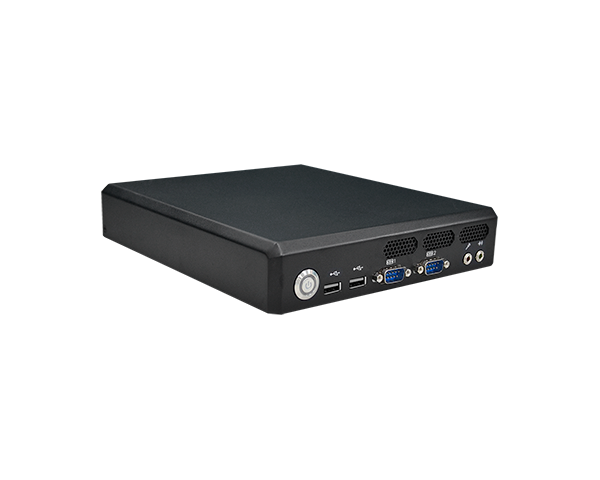

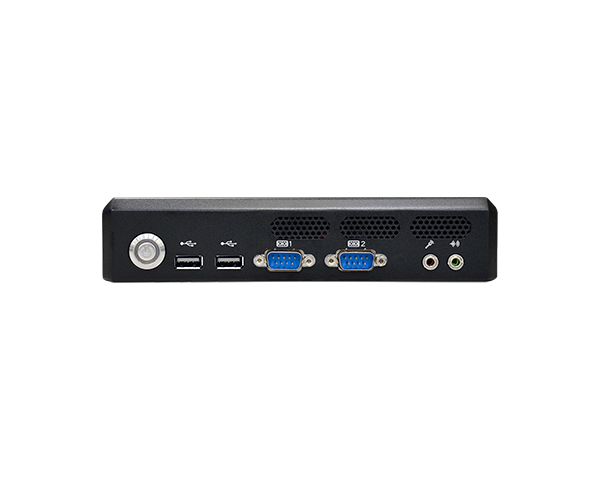

Optional 2 x COM(RS232/422/485 selectable, default is RS232)

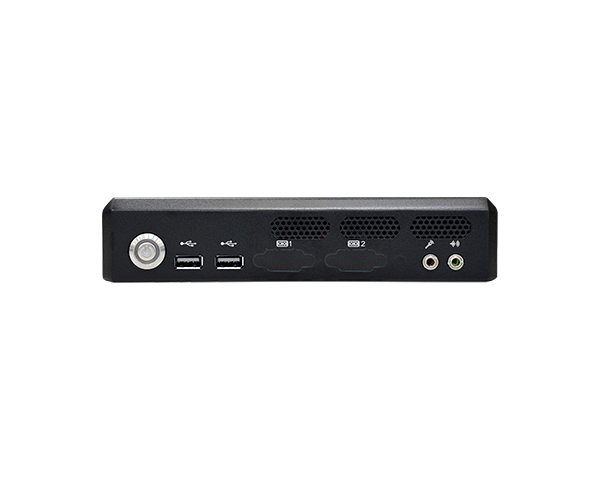

2 x USB 2.0

1 x Line out, 1 x Mic-in

1 x Power Button

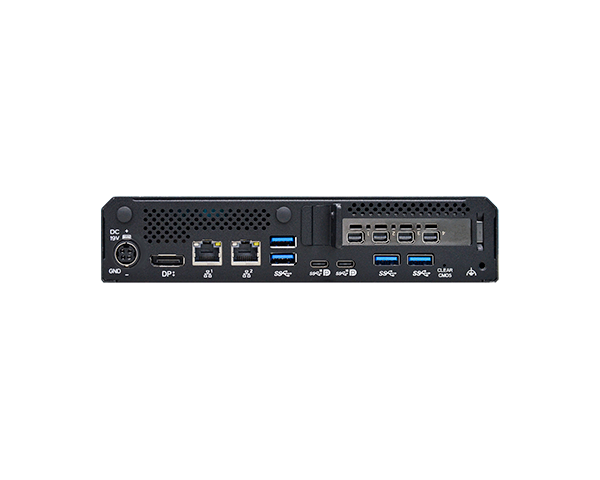

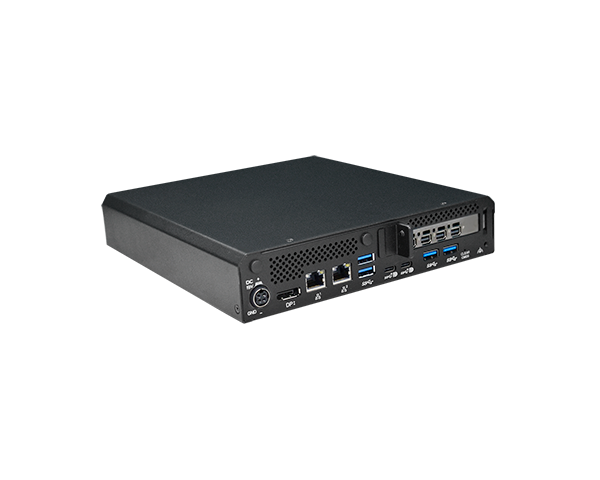

2 x 2.5GbE (RJ45, LAN1/ LAN2)

4 x USB 3.2 Gen2
2 x USB-C DP Alt. Mode

1 x DP++
2 x USB-C DP Alt.Mode

1 x Grounding Post

1 x remote switch
1 x reset button

System Reset, Programmable via Software from 1 to 255 Seconds

dTPM2.0

DC 19V

4pin mini DIN

TBD

CR2032 Coin Cell

Windows 11 IoT

Linux

Operating: -20°C ~ 50°C (for wide temperature M.2 SSD, w/ 0.6m/sec air flow)
Storage: -40°C ~ 85°C

Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH

TBD

Metal chassis

Wall mount

200 x 43.2 x 219mm

TBD

Operating: 3G
Non-operating: 5G

Operating: Random 5~500Hz 1G
Non-operating: Sweep Sine 10~500Hz 1.5G

CE, FCC class A, RoHS, UKCA

Taiwan
