WCL051｜Intel®｜Industrial Motherboards｜DFI

WCL051
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE

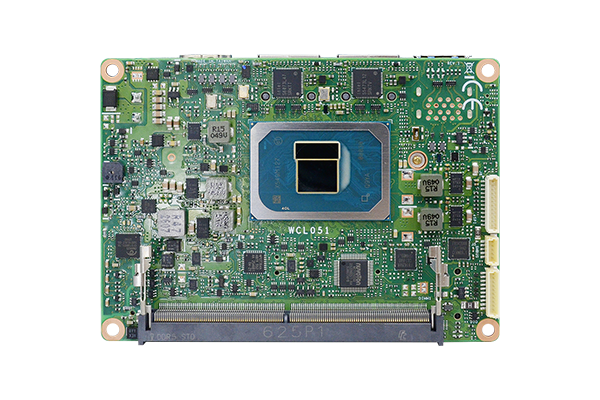

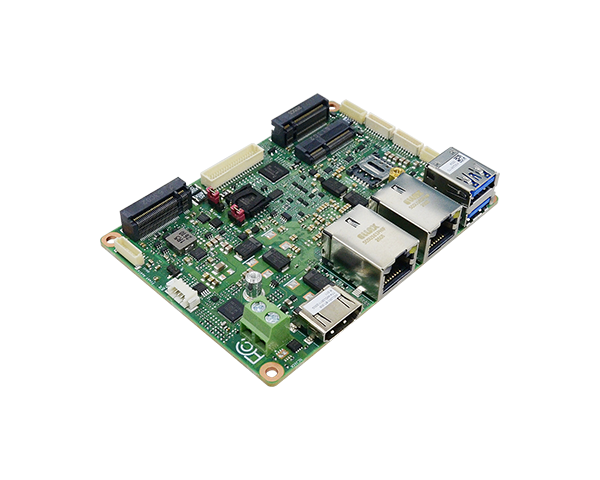

Home Industrial Motherboards 2.5" Pico-ITX WCL051
  • Intel® Core™ Series 3 Processors (Code Name: Wildcat Lake)
  • 1 DDR5 6400MHz SODIMM
  • Supports 4K/2K resolution
  • Dual Displays: HDMI + LVDS/eDP (Opt.)
  • Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
  • Rich I/O: 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Dual Display
DDR5
Rich I/O
Wide-temp: 0~60°C
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

WCL051 Related Tags

#DDR5#LVDS#Edge AI Computing#eDP#M.2#Intel® Wildcat Lake Processors#IoT#Windows 11#Intel#4K2K Display#Windows#Linux#HDMI#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#High-Performance#2.5G Ethernet#UKCA Certification
WCL051｜Intel®｜Industrial Motherboards｜DFI
WCL051｜Intel®｜Industrial Motherboards｜DFI
WCL051｜Intel®｜Industrial Motherboards｜DFI
WCL051｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Series 3 Processors (Code Name: Wildcat Lake)
Intel® Core™ 7 350, 6 Cores, 1.5~4.8GHz, 15W
Intel® Core™ 7 360, 6 Cores, 1.5~4.8GHz, 15W
Intel® Core™ 5 320, 6 Cores, 1.5~4.6GHz, 15W
Intel® Core™ 5 330, 6 Cores, 1.5~4.6GHz, 15W
Intel® Core™ 3 305, 6 Cores, 1.5~4.3GHz, 15W
Intel® Core™ 3 304, 5 Cores, 1.5~4.3GHz, 15W
Memory
One 262-pin SODIMM up to 64GB
Single Channel DDR5 6400MHz
BIOS
AMI SPI 512Mbit
Graphics
Controller
Intel® Xᵉ3 Graphics
Feature
OpenGL 4.6, DirectX 12 Ultimate, OpenCL 3.0, Vulkan 1.3
HW Decode: HEVC, VP9, AV1, AVC, VVC (H.266)
HW Encode: HEVC, VP9, AV1, AVC
Display
1 x HDMI
1 x LVDS/eDP (Opt.)
HDMI: resolution up to 4096×2160 @60Hz
LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @60Hz
eDP: resolution up to 2560x1440 @ 60Hz (2 Lane)
Dual Displays
HDMI + LVDS/eDP (Opt.)
Expansion
Interface
1 x M.2 2230 E Key (PCIe Gen4 x1/USB 2.0), for Wi-Fi/BT.
1 x M.2 3042 B Key (PCIe Gen4 x1/USB 3.2 Gen2 x1) with 1 x Nano SIM slot for 4G/5G.
1 x M.2 2242 M key (PCIe Gen4 x2), for storage.
Audio
Audio Codec
CMEDIA CM9825
Ethernet
Controller
2 x Intel® I226V/LM (10/100/1000/2500Mbps)

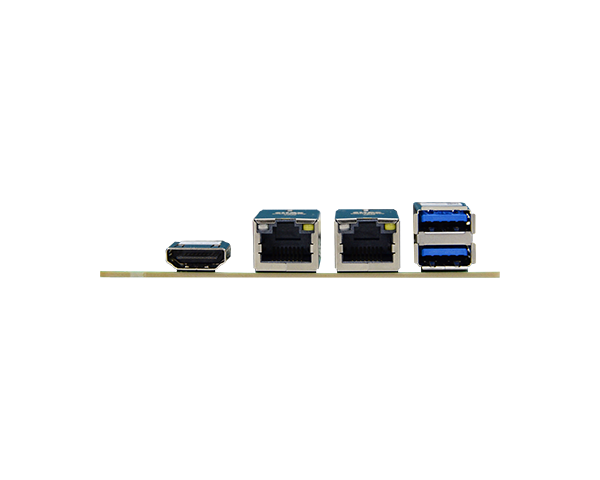

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
2 x USB 3.2 Gen2
Display
1 x HDMI
Internal I/O
Serial
2 x RS-232/422/485 (1.00mm pitch, 2 x 9-pin header)
USB
2 x USB 2.0 (1.00mm pitch, 1 x 8-pin header)
Display
1 x 40 pin LVDS/eDP (Default: LVDS)
Audio
1 x Line-out/Mic-in (1.00mm pitch, 1 x 8-pin header)
DIO
1 x 8-bit DIO (1.00 pitch, 1 x 10-pin header)
SMBus
1 x I2C/SMBus (Opt.)
Front Panel
1 x front panel (power button/reset button, power LED, HDD act LED)
Fan
Smart Fan 12V (4-wire)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0
Power
Type
Single 12V (+/- 5%) DC
Connector
2-pin Terminal Block
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 11 IoT Enterprise LTSC 24H2
Linux
Environment
Temperature
Operating: 0 to 60 °C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6 mm
Top Side: 16mm
Bottom Side: 9.4mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
• 1 WCL051 board
• 1 Cooler (Height: 26 mm) A71-108171-A00G
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WCL051-BT-350     Part Number :
     770-WCL0511-000G     Description :
    Intel® Core™ 7 350, 6C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12VDC, Cooler, 0~60°C
  • Model Name :
    WCL051-BT-320     Part Number :
     770-WCL0511-100G     Description :
    Intel® Core™ 5 320, 6C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12VDC, Cooler, 0~60°C
  • Model Name :
    WCL051-BT-305     Part Number :
     770-WCL0511-200G     Description :
    Intel® Core™ 3 305, 6C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12VDC, Cooler, 0~60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V
  • Item Name :
    2-pin power to DC jack cable     Part Number :
     A81-004013-000G     Description :
    Length: 115mm
  • Item Name :
    COM port cable     Part Number :
     A81-015130-018G     Description :
    Length: 250mm, 1x COM port
  • Item Name :
    USB 2.0 cable     Part Number :
     A81-001201-018G     Description :
    Length: 200mm, 2 USB ports
  • Item Name :
    Front panel cable     Part Number :
     A81-009899-018G     Description :
    Length: 250mm
  • Item Name :
    Audio cable     Part Number :
     A81-022043-054G     Description :
    Length: 200mm
  • Item Name :
    DIO cable     Part Number :
     A81-009715-018G     Description :
    Length: 200mm
  • Item Name :
    SMBus cable     Part Number :
     A81-009716-018G     Description :
    Length: 200mm
  • Item Name :
    Heat spreader     Part Number :
     TBD     Description :
    Height: 11 mm
