BT700｜Intel®｜System-On-Modules｜DFI

BT700
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home System-On-Modules Qseven BT700
  • Intel Atom® E3800 Series
  • Rich I/O: 1 Intel GbE, 1 USB 3.0, 6 USB 2.0
  • Multiple expansions: 3 PCIe x1
  • 1 DDI (DP/HDMI/DVI), 1 LVDS
  • 2GB/4GB DDR3L Single Channel Memory Down
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
Fanless Design
Compact Size
1G Ethernet
DDR3L
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

BT700 Related Tags

#Intel#Fanless Design#Compact Size#1G Ethernet#Windows#HDMI#DDR3L#RoHS Certification#CE Certification#FCC Certification

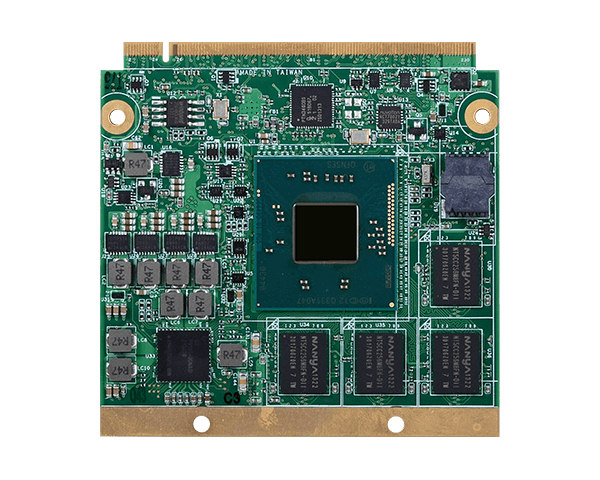

Qseven, BT700

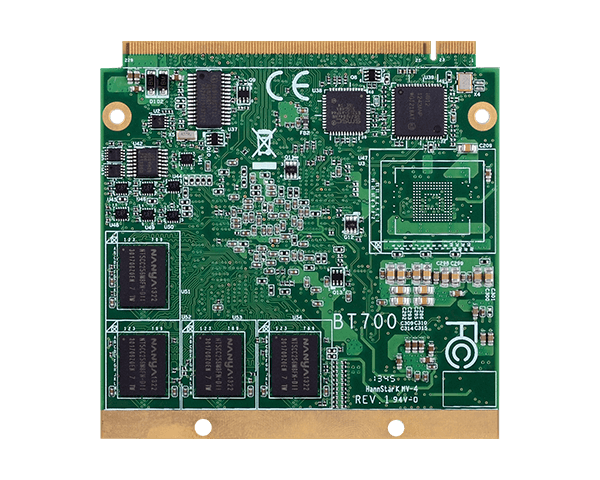

Qseven, BT700

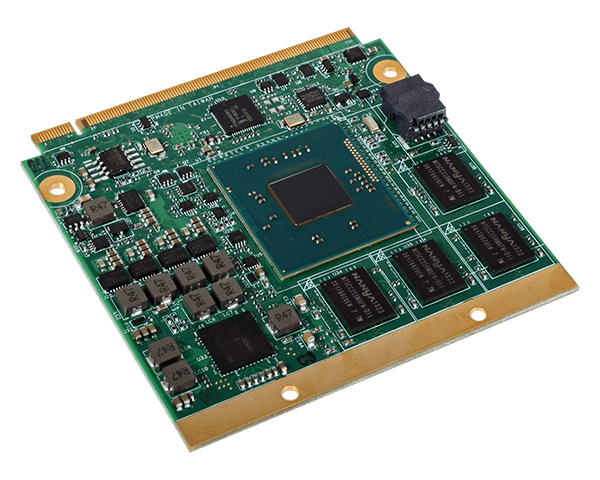

Qseven, BT700
Qseven, BT700

Related Products:

Select All - Clear
System
Processor
Intel Atom® Processor E3800 Series, BGA 1170
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W
Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W
Memory
2GB/4GB Single Channel DDR3L Onboard 1333MHz
BIOS
AMI 64Mbit BIOS
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 3.2, DirectX 11, OpenCL 1.2
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
Display
1 x DDI (HDMI/DVI/DP)
1 x LVDS
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI: resolution up to 1920x1080 @ 60Hz
DP: resolution up to 2560x1600 @ 60Hz
Expansion
Interface
3 x PCIe x1
1 x LPC
1 x I2C
1 x SMBus
1 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I210AT (10/100/1000Mbps) (0 to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)
I/O
USB
1 x USB 3.0
6 x USB 2.0
SATA
2 x SATA 2.0
eMMC
1 x 8GB/16GB/32GB eMMC (available upon request)
DIO
1 x 8-bit SDIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
5V, 5VSB, VCC_RTC
Consumption
BT700-T44-E45: 12.72W with E3845 at 1.91GHz and 4GB DDR3L memory down
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows 10 will be available upon request. Please contact DFI for more information.
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
1,076,859 hrs @ 25°C; 638,931 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Qseven form factor 70mm (2.76") x 70mm (2.76")
Compliance
Qseven specification revision 2.0
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 BT700 Board
1 Heat sink: A71-012004-000G
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT700-T40-E45     Part Number :
     770-BT7004-D00G     Description :
    Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, -40 to 85°C
  • Model Name :
    BT700-T44-E45     Part Number :
     770-BT7004-100G     Description :
    Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, 4GB eMMC, -40 to 85°C
  • Model Name :
    BT700-E40-E15     Part Number :
     770-BT7004-600G     Description :
    Fanless, Intel Atom E3815, 4GB DDR3L memory onboard, -20 to 70°C
  • Model Name :
    BT700-B40-E26     Part Number :
     770-BT7004-200G     Description :
    Fanless, Intel Atom E3826, 4GB DDR3L memory onboard, 0 to 60°C
  • Model Name :
    BT700-B40-E45     Part Number :
     770-BT7004-800G     Description :
    Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, 0 to 60°C
  • Model Name :
    BT700-T44-E45     Part Number :
     770-BT7004-100G     Description :
    Fanless, Intel Atom E3845, 4GB DDR3L memory onboard, 4GB eMMC, -40 to 85°C
  • Model Name :
    BT700-T20-E45     Part Number :
     770-BT7004-700G     Description :
    Fanless, Intel Atom E3845, 2GB DDR3L memory onboard, -40 to 85°C
  • Model Name :
    BT700-B20-N07     Part Number :
     770-BT7004-900G     Description :
    Fanless, Intel Atom N2807, 2GB DDR3L memory onboard, 0 to 60°C

* The following specifications will be available upon request. Please contact your sales representative for more information.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Bracket     Part Number :
     A31-028001-200G     Description :
  • Item Name :
    Heat spreader     Part Number :
     A71-012005-000G     Description :
  • Item Name :
    Q7X-151 carrier board kit     Part Number :
     770-Q7X151-000G     Description :
  • Item Name :
    Heat spreader with heat sink     Part Number :
     761-BT7000-000G     Description :
