Q7X-151(R.A)｜System-On-Modules｜DFI

Q7X-151(R.A)
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home System-On-Modules Carrier Board Q7X-151(R.A)
  • Qseven R2.0
  • Supports Qseven modules
  • Multiple displays: 1 DP, 1 LVDS
  • Rich I/O: 1 GbE, 1 USB 3.0, 6 USB 2.0, 2 COM
  • Mini-ITX form factor

Status : Launched QUOTE NOW

Compact Size
1G Ethernet
DP
Multiple Expansion
12V DC-in
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

Q7X-151(R.A) Related Tags

#Compact Size#1G Ethernet#Multiple Expansion#12V DC-in

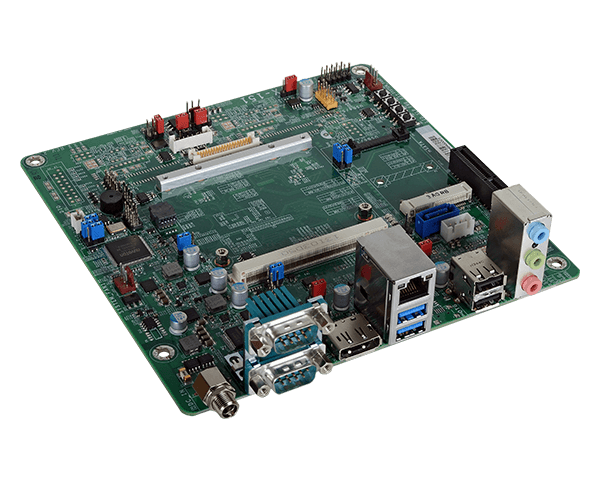

Qseven, Q7X-151(R.A)
Qseven, Q7X-151(R.A)
Qseven, Q7X-151(R.A)
Qseven, Q7X-151(R.A)

Related Products:

Select All - Clear
Graphics
Display
1 x DP
1 x LVDS
Expansion
Interface
1 x PCIe x4
1 x SDIO
Audio
Audio Codec
Realtek ALC886
Rear I/O
Ethernet
1 x GbE (RJ-45)
Serial
2 x RS232 Serial
USB
1 x USB 3.0
2 x USB 2.0
Display
1 x DP
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x Serial Interface Connector (TX/RX)
USB
4 x USB2.0
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x mSATA
LPC
1 x LPC
SMBus
1 x SMBus
UART
2 x UART (TX/RX)
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Supply
12V DC-in jack
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
739167 hrs @ 25°C; 449662 hrs @ 45°C; 290865 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7")
Packing List
Packing List
1 Q7X-151(R.A) board
1 Serial ATA signal cable: 332-553001-005G
1 I/O shield: A49-Q7X151-000G
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Certifications
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter (100W, 12V, Level 6)     Part Number :
     671-110002-100G     Description :
  • Item Name :
    USB port cable     Part Number :
     332-253010-026G     Description :
  • Item Name :
    I/O shield     Part Number :
     A49-Q7X151-000G     Description :
