BT100|Intel®|Industrial Motherboards|DFI

BT100
Home Industrial Motherboards Mini-ITX BT100
  • Intel® Atom™ E3800 Mini-ITX
  • 2 DDR3L SODIMM up to 8GB
  • 1 DVI-I(DVI-D signal), VGA, LVDS
  • Expansion: 1 PCIe x4 (x1 signal), 1 Mini PCIe
  • Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
DVI-D
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

BT100 Related Tags

#IoT#Intel#Mini PCIe#Windows#DVI-I#DVI-D#VGA#DDR3L#RoHS Certification#CE Certification#FCC Certification

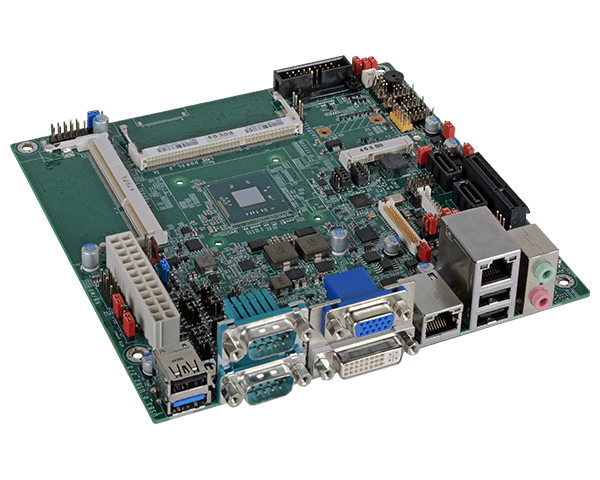

BT100 Mini-ITX

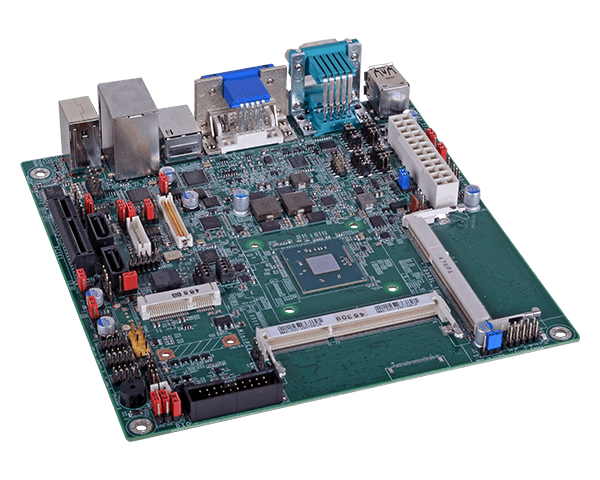

BT100 Mini-ITX
BT100 Mini-ITX
System
Processor
Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Atom™ Processor E3815, Single Core, 0.5M Cache, 1.46 GHz, 5W
Intel® Celeron® Processor J1900, Quad Core, 2M Cache, up to 2.41 GHz, 10W
Memory
Two 204-pin DDR3L SODIMM up to 8GB
Dual channel DDR3L 1333MHz
One 204-pin DDR3L SODIMM up to 4GB
Single channel DDR3L 1066MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
OpenGL 4.0, Direct X 11, OpenCL 1.2,
Display
1 x DVI-D
1 x VGA
1 x LVDS
DVI-D: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x4 (x1 signal)
1 x Mini PCIe
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS232/422/485 (RS232 and/or power) (DB-9)
1 x RS232 (DB-9)
USB
3 x USB 2.0
1 x USB 3.0
Display
1 x DVI-I (DVI-D signal)
1 x VGA
Audio
1 x Mic-in
1 x Line-out
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
3 x RS-232 (2.0mm pitch)
USB
3 x USB 2.0
Display
1 x LVDS
Audio
1 x Line-out
1 x Mic-in
1 x S/PDIF
SATA
2 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
24-pin ATX
Consumption
BT100-TC-E45: 12.18W with E3845 at 1.91GHz and 2x 4GB DDR3L SODIMM
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
Windows 10 IoT LTSB (64bit)
Environment
Temperature
Operating: 0°C to 60°C / -20°C to 70°C / -40°C to 85°C
Storage: -40°C to 85°C
Humidity
Operating: 5% to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
Mini-ITX form factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 5.06mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 BT100 motherboard
1 Serial ATA data cable: 332-553001-005G
1 I/O shield: A49-BT1000-000G
1 Heat sink: A71-010026-000G
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT100-TC-E45
    Part Number :
    Description :
    Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 6 COM, -40 to 85°C
  • Model Name :
    BT100-ED-E45
    Part Number :
    Description :
    Fanless, Intel® Atom™ E3845, 2 DDR3L SODIMM, 2 COM, -20 to 70°C
  • Model Name :
    BT100-BC-J00
    Part Number :
    Description :
    Fanless, Intel® Celeron® J1900, 2 DDR3L SODIMM, 6 COM, 0 to 60°C
  • Model Name :
    BT100-BC-E15
    Part Number :
    Description :
    Fanless, Intel® Atom™ E3815, 1 DDR3L SODIMM, 6 COM, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    2.0mm
  • Item Name :
    USB port cable
    Part Number :
    332-253010-026G
    Description :
    2.54mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :

* :
