SB331-D|Intel®|Industrial Motherboards|DFI

SB331-D
Home Industrial Motherboards microATX SB331-D
  • Rich I/O: 2 Intel GbE, 10 USB 2.0, 10 COM
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, 4 SATA 2.0
  • 1 VGA, 1 HDMI
  • Dual channel DDR3 1600MHz DIMM up to 16GB
  • 3rd/2nd Gen Intel® Core™, Intel® H61 Chipset
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
PCIe x16
HDMI
DVI-I
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

SB331-D Related Tags

#Intel#PCIe x16#Windows#HDMI#DVI-I#DDR3#RoHS Certification

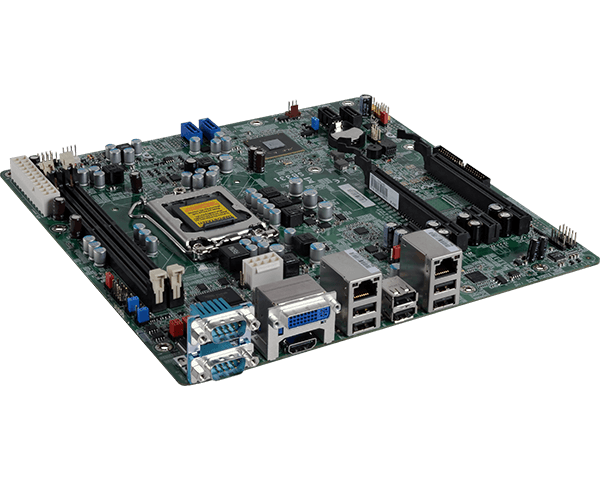

microATX, SB331-D

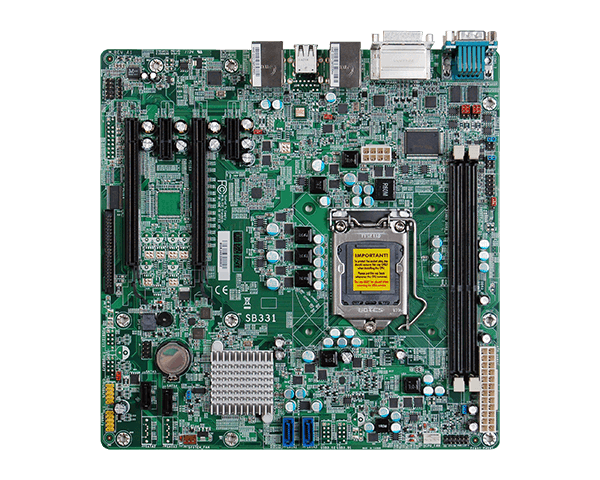

microATX, SB331-D

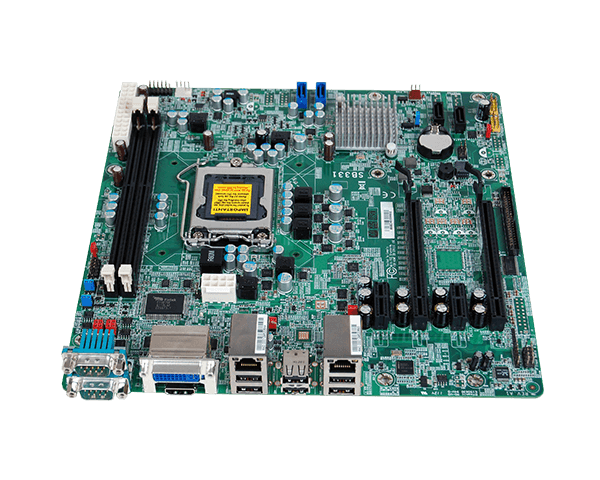

microATX, SB331-D
microATX, SB331-D
System
Processor
LGA 1155 socket for:
- 3rd generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W
Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W
Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W
Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W
- 2nd generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W
Intel® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W
Intel® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W
Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W
Chipset
Intel® H61 Chipset
Memory
Two 240-pin DIMM up to 16GB Dual Channel DDR3 1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 3.0, DirectX 11.1
Display
1 x HDMI
1 x DVI-I
HDMI/DVI-I: resolution up to 1920x1200 @ 60Hz
Expansion
Interface
2 x PCIe x16
2 x PCIe x1
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
1 x Intel® WG82579L (10/100/1000Mbps)
1 x Intel® W82574 PCIe (10/100/1000Mbps)

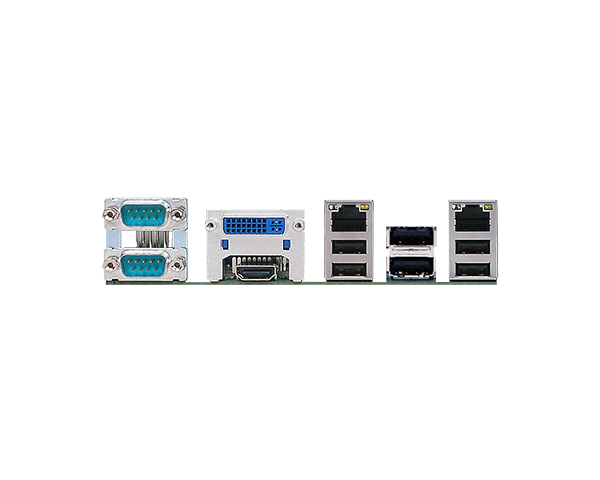

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
6 x USB 2.0
Display
1 x HDMI
1 x DVI-I
Internal I/O
USB
4 x USB 2.0
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
4 x SATA 2.0
DIO
1 x 36-bit DIO
Other I/O
1 x PS/2
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
121.91 W with i7-2600 at 3.40GHz and 2x 2GB DDR3 DIMM
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
microATX form factor 244mm (9.6") x 244mm (9.6")
Packing List
Packing List

1 SB331-D motherboard
2 USB port cables (with bracket)
2 Serial ATA data cables
1 I/O shield
Country of Origin
Country of Origin
Taiwan
Optional Items
  • Item Name Part Number Description
  • Item Name :
    PS/2 Keyboard/Mouse cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
