CL630-CRM|Intel®|Industrial Motherboards|DFI

CL630-CRM
Home Industrial Motherboards ATX CL630-CRM
  • 3rd/2nd Gen Intel® Xeon®/Core™, Intel® C216 Chipset
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 3 PCI, 1 Mini PCIe, 6 SATA
  • 1 HDMI, 1 DVI-I, 1 DVI-D
  • Dual channel DDR3 1600MHz DIMM up to 32GB
  • Rich I/O: 2 Intel GbE, 12 USB, 6 COM
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

PCIe x16
HDMI
DVI-I
Multiple Expansion
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

CL630-CRM Related Tags

#Intel#Mini PCIe#PCIe x16#Windows#HDMI#DVI-I#VGA#Multiple Expansion#DDR3#RoHS Certification

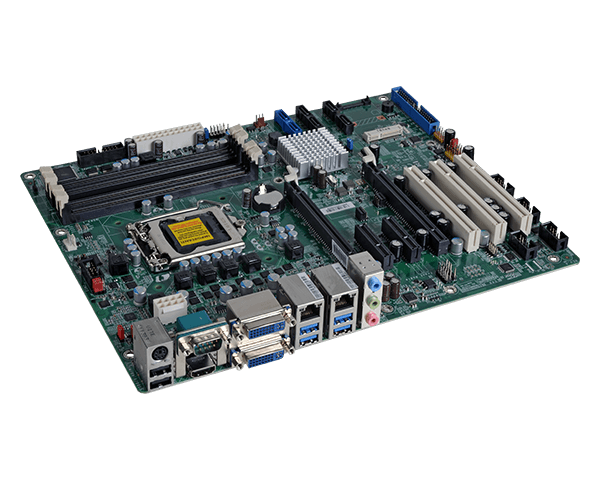

ATX, CL630-CRM
ATX, CL630-CRM
ATX, CL630-CRM
ATX, CL630-CRM
System
Processor
LGA 1155 socket for:
- 3rd Generation processors (22nm process technology)
Intel® Xeon® E3-1275v2 (8M Cache, up to 3.9GHz); 77W
Intel® Xeon® E3-1225v2 (8M Cache, up to 3.6GHz); 77W
Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W
Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W
Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W
Intel® Pentium® G2120 (3M Cache, 3.1GHz); 65W
- 2nd Generation processors (32nm process technology)
Intel® Xeon® E3-1275 (8M Cache, up to 3.8GHz); 95W
Intel® Xeon® E3-1225 (6M Cache, up to 3.4GHz); 95W
Intel® Core™ i7-2600 (8M Cache, up to 3.8GHz); 95W
Intel® Core™ i5-2400 (6M Cache, up to 3.4GHz); 95W
Intel® Core™ i3-2120 (3M Cache, 3.3GHz); 65W
Intel® Pentium® G850 (3M Cache, 2.9GHz); 65W
Chipset
Intel® C216 Chipset
Memory
Four 240-pin ECC DIMM up to 32GB Dual Channel DDR3 1600MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics 4000P
Feature
OpenGL 3.0, DirectX 11.1
Display
2 x DVI-I
1 x HDMI
DVI-I/HDMI: resolution up to 1920x1200 @ 60Hz
VGA: 32-bit resolution up to 2048x1536 @ 75Hz
Expansion
Interface
2 x PCIe x16
2 x PCIe x4
3 x PCI
1 x Mini PCIe
Audio
Audio Codec
Realtek ALC886
Ethernet
Controller
1 x Intel® WG82579LM with iAMT8.0 (10/100/1000Mbps)
1 x Intel® WG82574L PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2
Display
1 x HDMI
2 x DVI-I
Audio

1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
4 x RS-232
1 x RS-232/422/485
USB
6 x USB 2.0
Audio
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA
2 x SATA 3.0
4 x SATA 2.0
DIO
1 x 8-bit DIO
Other I/O
1 x IDE
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
86.49 W with E3-1275 at 3.40GHz and 4x 1GB DDR3 DIMM
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
421,414 hrs @ 25°C; 232,907 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
ATX form factor 305mm (12") x 244mm (9.6")
Packing List
Packing List
1 CL630-CRM motherboard
2 USB port cables (with bracket)
2 Serial ATA data cables
2 COM port cables (with bracket)
1 I/O shield
Country of Origin
Country of Origin
Taiwan
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    COM port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    IDE cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
  • Item Name :
    PS/2 Keyboard/Mouse cable
    Part Number :
    TBD
    Description :
