OT951-D|AMD®|Industrial Motherboards|DFI

OT951-D
Home Industrial Motherboards 3.5" SBC OT951-D
  • AMD® Embedded G-Series with AMD® A50M
  • 1 DDR3 SODIMM up to 8GB
  • 1 HDMI, 1 VGA, 1 LVDS
  • Expansion: 1 Mini PCIe, 1 I/O expansion
  • Rich I/O: 2 Intel GbE, 2 COM, 4 USB 2.0
  • 10-Year CPU Life Cycle Support Until Q1' 21 (Based on AMD Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
HDMI
VGA
Mini PCIe
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

OT951-D Related Tags

#AMD#Mini PCIe#Windows#HDMI#VGA#DDR3#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification

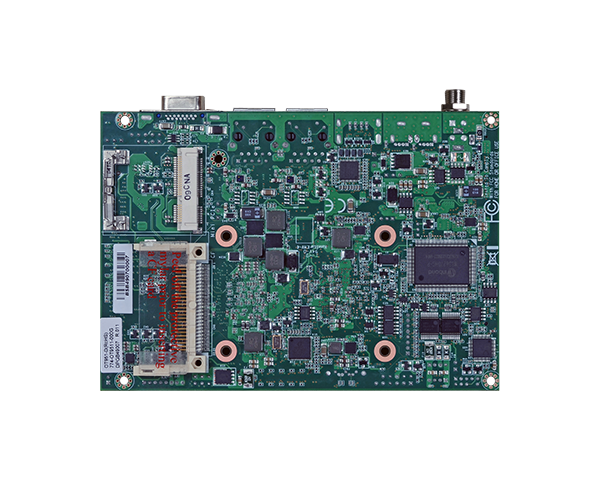

OT951-D series 3.5" SBC

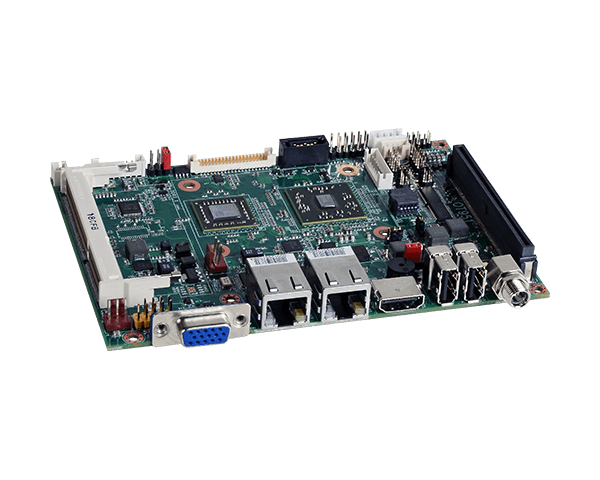

OT951-D series 3.5" SBC

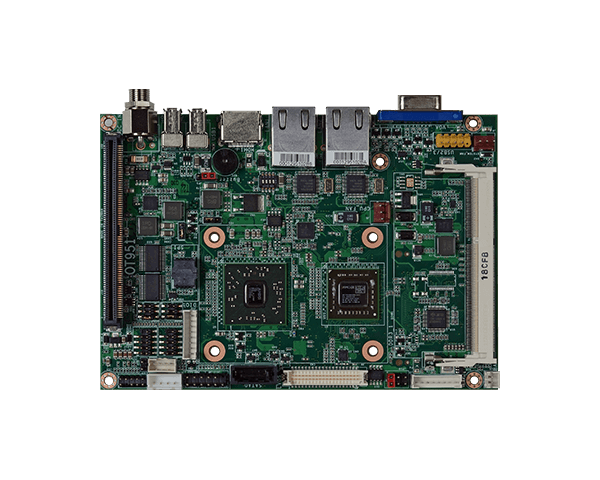

OT951-D series 3.5" SBC

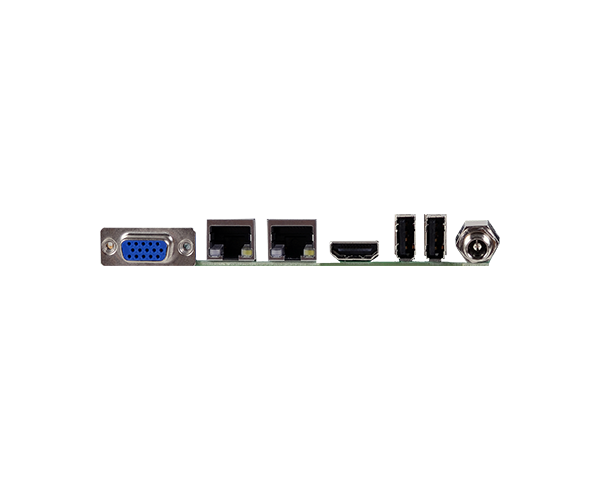

OT951-D series 3.5" SBC
System
Processor
OT951-DT56N:
- AMD® T56N, 1.65GHz, 2x 512KB L2, 18W TDP, dual-core
- Cooling: heatsink with cooling fan
OT951-DT40N:
- AMD® T40N, 1.0GHz, 2x 512KB L2, 9W TDP, dual-core
- Cooling: heatsink without cooling fan
Chipset
AMD® A50M
Memory
One 204-pin DDR3 SODIMM up to 8GB
Single Channel DDR3 1066/1333MHz (OT951-DT56N)
Single Channel DDR3 1066MHz (OT951-DT40N)
BIOS
AMI SPI 64Mbit
Graphics
Controller
AMD Radeon™ HD 6320 (OT951-DT56N)
AMD Radeon™ HD 6290 (OT951-DT40N)
Feature
MD Turbo Core 2.0 technology
DirectX 11, OpenGL 3.2 and OpenCL 1.1
Hardware H.264, MPEG4 Part 2, VC-1, and MPEG2 decode
Display
1 x HDMI
1 x LVDS
1 x VGA
LVDS: Chrontel CH7511B, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
VGA: resolution up to 2048x1536 @ 60Hz (OT951-DT56N); resolution up to 1920x1200 @ 60Hz (OT951-DT40N)
HDMI: resolution up to 1920x1080 @ 60Hz
Expansion
Interface
1 x Half-size Mini PCIe
1 x Connector for daughterboard expansion (2 PCIe x1, 4 USB 2.0, 1 LPC)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
2 x Realtek® RTL8111DL (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ45)
USB
2 x USB 2.0
Display
1 x HDMI
1 x VGA
Internal I/O
Serial
2 x RS232/422/485
USB
2 x USB 2.0
Display
1 x LVDS
Audio
1 x line-out
1 x mic-in
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V
Connector
DC-in jack (default)
4-pin power connector (available upon request)
Consumption
26.66 W with T56N at 1.65GHz and 1x 2GB DDR3 SODIMM
19.23 W with T40N at 1.00GHz and 1x 1GB DDR3 SODIMM
Environment
Temperature
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Operating: 0oC to 60oC Storage: -20oC to 85oC
Humidity
Operating: 10% to 90% RH
Storage: 10 to 90% RH
Mechanism
Dimensions
3.5" board
146mm (5.75") x 102mm (4.02")
Height
PCB: 1.6mm
Top Side: 14.31mm
Bottom Side: 8.7mm
Standards and Certifications
Certifications
CE, FCC Class B, UL, RoHS
Packing List
Packing List
1 OT951-D board
1 Serial ATA data cable
Country of Origin
Country of Origin
Taiwan
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable
    Part Number :
    Description :
  • Item Name :
    USB port cable
    Part Number :
    Description :
  • Item Name :
    COM port cable
    Part Number :
    Description :
  • Item Name :
    Power adapter
    Part Number :
    671-110002-100G
    Description :
    100W, 12V, Level 6
