PIC-H61｜Intel®｜Industrial Motherboards｜DFI

PIC-H61
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards PICMG 1.3 PIC-H61
  • Rich I/O: 2 Intel GbE, 4 COM, 10 USB 2.0
  • Expansion: 1 PCIe x16, 4 PCIe x1, 4 PCI
  • 1 DVI-D (optional), 1 VGA
  • 2 DDR3 DIMM up to 16GB
  • 3rd/2nd Gen Intel® Core™ with Intel® H61
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
PCIe x16
VGA
Mini PCIe
DDR3
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

PIC-H61 Related Tags

#Intel#PCIe x16#Windows#DVI-D#VGA#DDR3#RoHS Certification#CE Certification#FCC Certification

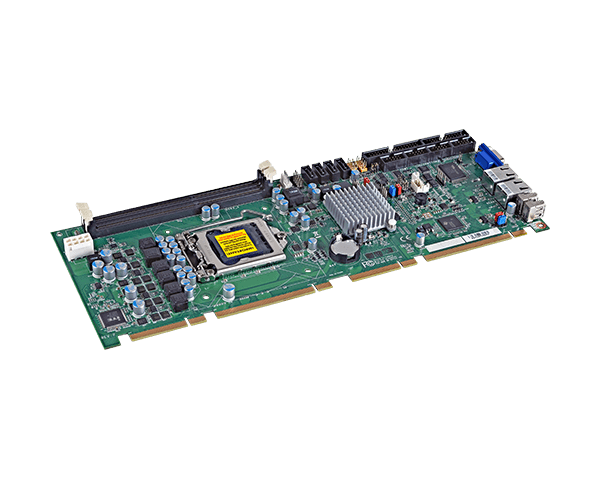

PIC-H61 Full Size PICMG 1.3
PIC-H61 Full Size PICMG 1.3
PIC-H61 Full Size PICMG 1.3

Related Products:

Select All - Clear
System
Processor
3rd generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W
Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W
Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W
Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W
2nd generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W
Intel® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W
Intel® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W
Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W
Chipset
Intel® H61
Memory
One 204-pin SODIMM up to 16GB
Dual channel DDR3 1333/1600MHz (3rd generation processors)
Dual channel DDR3 1066/1333MHz (2nd generation processors)
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
Supports 6 Graphics Execution Units (EUs)
Intel® Clear Video Technology
DirectX Video Acceleration (DXVA) support for accelerating video processing
Display
1 x VGA
1 x DVI-D(Optional)
VGA : supports up to 2048x1536 @ 75Hz resolution
DVI-D : supports up to 1920x1080 @ 60Hz resolution (Optional)
Expansion
Interface
1 x PCIe x16 (Gen 3.0) (Gen 2.0)
4 x PCIe x1
4 x PCI
4 x USB 2.0
Ethernet
Controller
2 x Intel® W82574L PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ45)
USB
2 x USB 2.0
Display
1 x VGA (DB-15)
Internal I/O
Serial
1 x RS232/422/485
3 x RS232
USB
4 x USB 2.0
SATA
4 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
ATX
Connector
8-pin 12V power
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Environment
Temperature
Operating: 0°C to 60°C
Storage: -20°C to 85°C
Humidity
Operating: 10% to 90% RH
Storage: 10 to 90% RH
Mechanism
Dimensions
338mm (13.3") x 122mm (4.8")
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 PIC-H61 board
2 USB port cables (with bracket)
2 COM port cables (with bracket)
2 Serial ATA data cables
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Technical Documents
Certifications
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable     Part Number :
     TBD     Description :
  • Item Name :
    COM port cable     Part Number :
     TBD     Description :
  • Item Name :
    Serial ATA data cable     Part Number :
     TBD     Description :
  • Item Name :
    Serial ATA power cable     Part Number :
     TBD     Description :

Related Materials

Related Products
