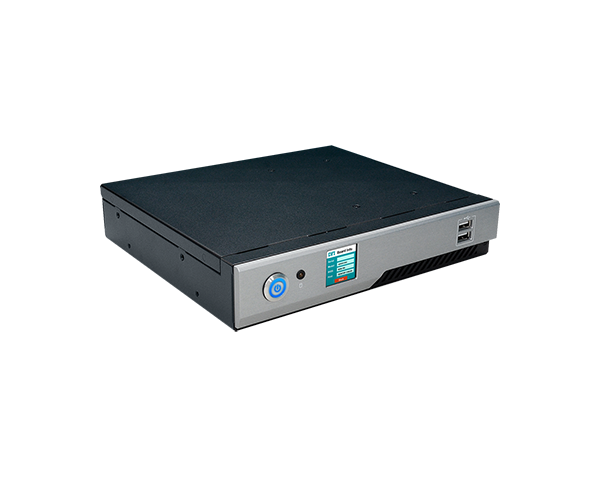

SF101-ADS｜Intel®｜工業級系統｜友通資訊 DFI

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

Intel® R680E/Q670E/H610E Chipset

Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 3200 MHz
R680E ECC Support

AMI SPI 128Mbit

Intel® UHD Graphics 700 series

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x DP++
1 x DP++/HDMI

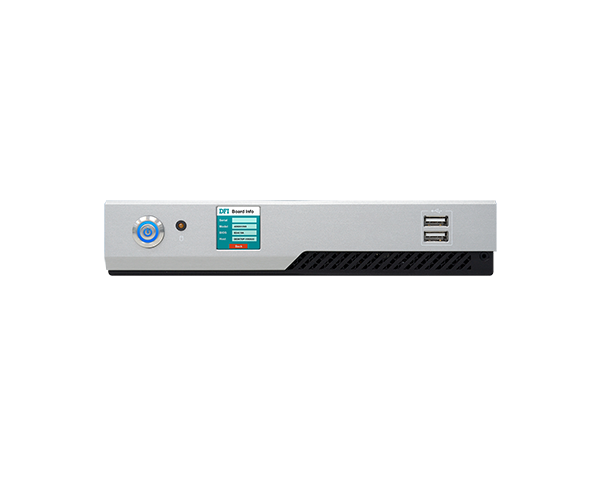

1 x 1.3" Front Capacitive Touch LCD (opt.)

1x 2.5" SATA bay
[R680E] 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
RAID 0/1

1 x PCIe x16 (Gen 5) (Max. 75W)
1 x M.2 2230 E Key (USB/PCIe x1)

[R680E] 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
[R680E] 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)

Realtek ALC888S-VD2-GR

1 x Intel® I226V PCIe(10/100/1000/2.5G speeds)
[R680E] 1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)
1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)

1 x Power LED
1 x HDD LED

2 x USB 2.0

1 x Power Button

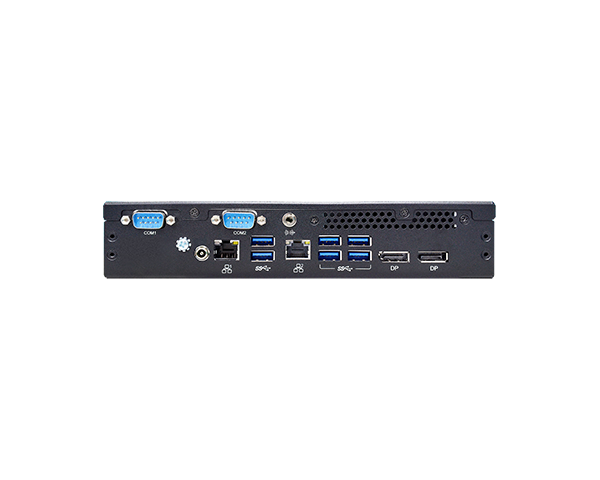

1 x 2.5GbE (RJ-45)
1 x GbE (RJ-45) (2x by Opt.)

2 x COM

[R680E] 4 x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)

1 x DP++
1 x DP++/HDMI

1 x line-out

1 x Grounding Post

System Reset, Programmable via Software from 1 to 255 Seconds

dTPM2.0

Single 12V +/-10% DC

Terminal Block

TBD

CR2032 Coin Cell

Windows 10 IoT

Linux

Operating: -5°C ~ 45°C
Storage: -40°C ~ 85°C

Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH

TBD

Metal chassis + Aluminum front bezel

Wall mount
Rackmount

220 x 43 x 197.2mm

2.55kg

Operating: 3G Non-operating: 5G

Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G

ISTA Project 1A

CE, FCC class A, RoHS, UKCA
