EXT-OOB｜工業級主機板｜友通資訊 DFI

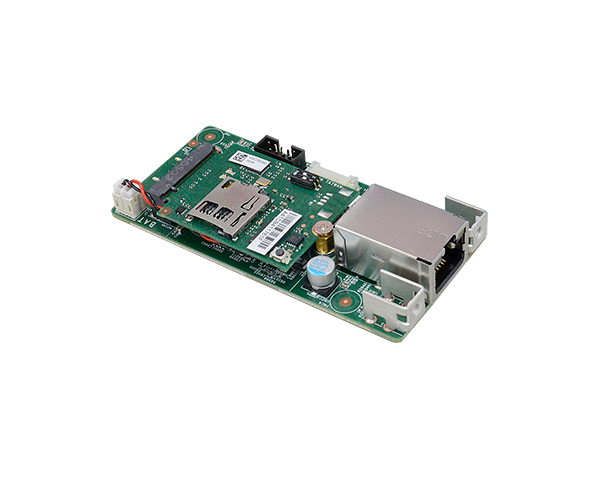

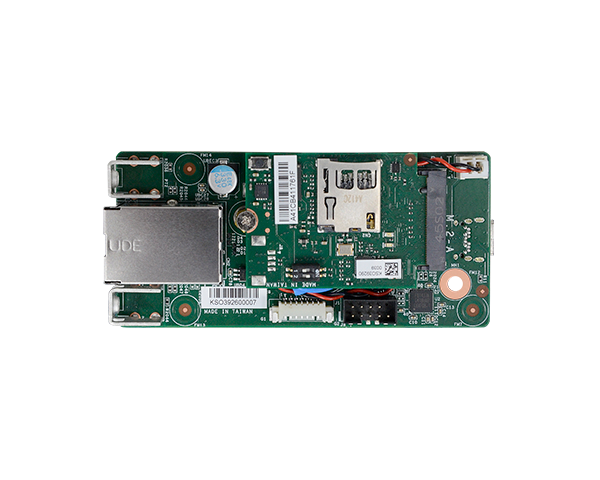

• 1 M2A-OOB module: 774-M2AOOB-100G

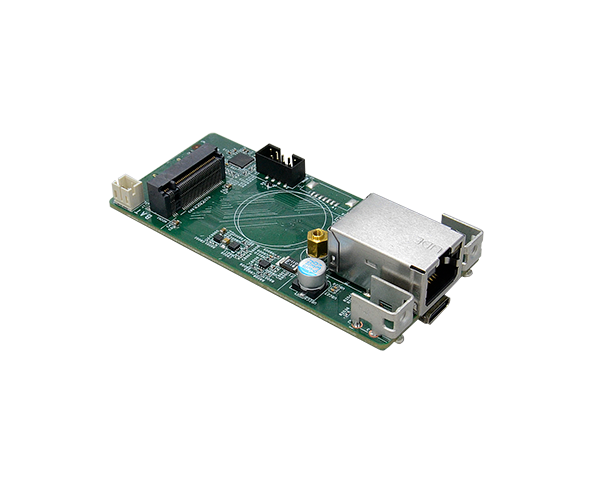

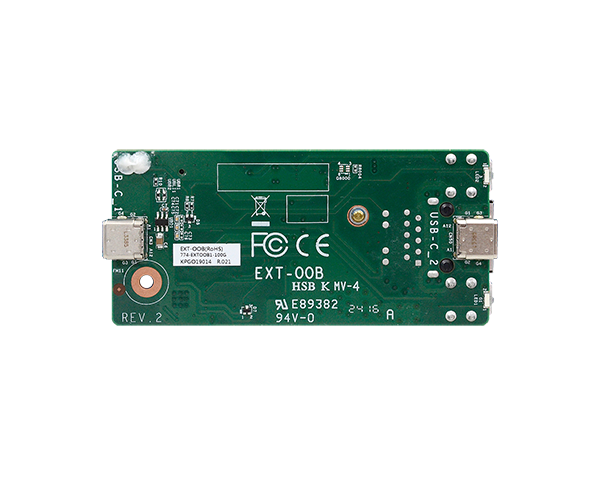

• 1 EXT-OOB carrier board: 774-EXTOOB1-100G
• 1 USB cable (Length: 100mm): A81-001197-018G
• 1 SPI cable (Length: 250mm): A81-009808-016G
• 1 OOB cable (Front Panel, COM. I2C, 5VSB): A81-009810-018G
• 1 COM transfer cable (Length: 50mm): A81-009809-016G
• 1 USB transfer cable (Length: 50mm): A81-009824-016G
• 1 Bracket: A31-028S33-000G

◆ Out-Of-Band Monitoring and Management Functions
　• Processor: Nuvoton NUC980DK71YC (LQFP-128, 128MB DDR2)
　• Power Cycling:
　　- Enforcement Shutdown
　　- Power Switch On / Off
　　- Reset

◆ Signal Interface
　• Connector: Proprietary M.2 Pin Definition by DFI
　• Factory Reset: Factory Reset Button (5 Seconds Pressed)
　• Configuration Lock: 2 DP switch (default: both disabled)
　• Storage: 128MB SPI NAND Flash
　　　　　　Micro SD Slot (Co-layout with optional eMMC)
　• LED Indicator Lights: MCU Activated

◆ Environment
　• Operating Temperature: -5 to 65ºC (On Industrial Motherboard)
　• Operation Humidity: 5 to 90% (Non-condensing)
　• Storage Temperature: -40 to 85°C
　• Certification: CE / FCC / RoHS & REACH Compliant

◆ DIMENSIONS: 89.80 x 45.60mm

Remote power on / off & reset control
Remote hardware monitor log (OpenSSH)
Remote BIOS setup & UEFI shell (Serial over LAN)
Remote BIOS update
Remote BIOS update (SOL & DFI USB-Storage)
Optional Remote Recovery OS Image (UEFI text mode)
