GM903

產品概要

首頁特定應用系統娛樂嵌入式系統 GM903

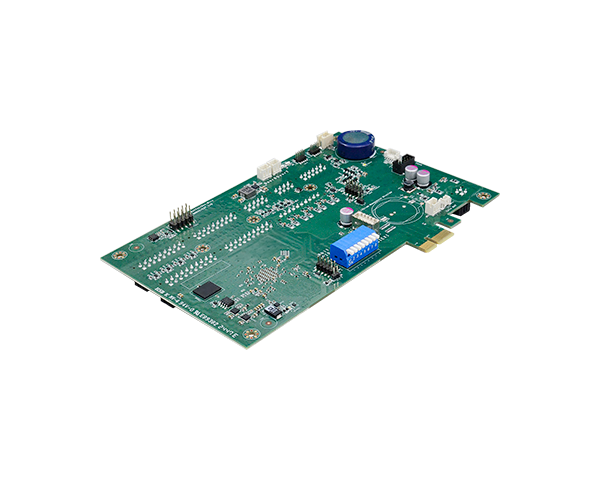

FPGA & MCU gaming I/O control board

Support PCIex1 slot and High/Low speed connectors

8 Intrusion detection and battery backed NVRAM

Reliable Data Security (Secure Boot, Secure Content)

狀態 : 初版前往詢價

+加入比較表 +加入詢價表

產品比較
目前共有樣產品 ,Up to 3 items.
前往比較

加入詢價表
目前共有 ,Up to 3 items.
前往詢價

GM903 相關標籤

#FGPA#PCIe#12V DC-in#娛樂

處理器

FPGA + MCU

FPGA & MUC implementation of the gaming features controller

內部輸入/輸出

USB

Pin header for USB 2.0 signal input

UART

Pin header for UART signal input

I2C

Pin header for I2C signal input

主機介面

High/low speed connector
1 x PCIe x1 slot (Gold finger)

博弈

入侵偵測

8 x intrusion detection
Logs Date/ Time of latest 64 events
Operates with and without system active (G3 power from BAT)
5 Years data retention during AC off

數位輸入/輸出

32-bit Digital Input
32-bit OC output (29-bit x 500mA, 3-bit x 3A, up to 24V), Low Active

iButton

Support iButton 1-wire protocol
Support ds1996 device (default)

Meter Power

8 ports can be set as meter output with disconnect detect

串口

2 x RS232/CCTalk (TX/RX)

音訊

Stereo 6W+6W Class D Audio AMP Output

安全性

(By request)
SHA-256 or AES-256
128B RBG

SRAM (NVRAM)

Support 2pcs SRAM (BGA type)
2 x SRAM supported with battery backup, Default 4MB/Single (up to 16MB/Dual)
Backup to Retain Data for 5 years during AC off

EEPROM

EEPROM 2KB

錢幣型電池

1 x CR2032 Lithium 3V/220mAh with socket type
1 header for cable type

硬體

尺寸

170mm x 113 mm

電源

類型

12V DC in

Country of Origin

台灣
