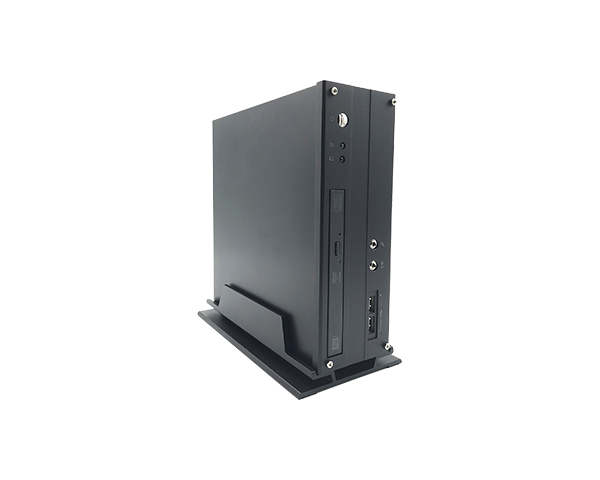

ST102-CS｜Intel®｜産業用コンピューター｜DFI

8th/9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)

8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 35W
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Celeron G4900T Processor (Core 2; Max speed 2.9 GHz; TDP 35W)

Intel® H310/Q370 Chipset

Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz

AMI SPI 128Mbit

Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610)

OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

1 x LVDS/eDP (eDP available upon request)
1 x HDMI
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz

2DP++ & 1HDMI

1x 2.5" SATA bay, anti-vibration

1 x Full-Size mini PCIe for mSATA
1 x m.2 2280 mKey (PCIe x 4/SATA) Support NVme and Intel Optane memory
1 x m.2 2230 Ekey (USB/PCIe)

Realtek ALC888S-VD2-GR

1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps)

1 x Power LED
1 x HDD LED

2 x USB 2.0 (X100-USB2)

1 x Line-out
1 x Mic-in (via cable to external interface from on board pin-header)

1 x Power Button

2 x GbE (RJ-45)

4 x USB 3.1

2 x DP++
1 x HDMI

2 x antenna opening

1 x System Fan
1 x CPU Fan

System Reset, Programmable via Software from 1 to 255 Seconds

12V

DC Jack

Windows 10 IoT Enterprise

-5 to 55°C
The configuration with i3 CPU throttles may occur

-20 to 70°C
The configuration with i3 CPU throttles may occur

Operating: 10 to 85% (non-condensing)
Storage: 10% to 90% (non-condensing)

Metal chassis + Aluminum front bezel
Kensington lock

Wall mount

219mm x 75.15mm x 229.7mm (without of stand holder)

2.55kg

Operating: 3G Non-operating: 5G

Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G

ISTA Project 1A

CE, FCC class B, RoHS, UKCA
