VC300-CS

工業級系統 車載/鐵路專用系統 VC300-CS
  • 8th/9th Generation Intel® Core™ Processors
  • 4 x 802.3af PoE ports
  • AI accelerated: up to 150W GPU MXM module supported
  • Multiple expansion slots for 5G cellular supported
  • Extended operating temperature: -25°C to 70°C
  • 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)

狀態 : 初版

寬溫: -20~70°C
Windows
Linux
多元擴充插槽
產品比較
目前共有 樣產品 ,Up to 3 items.
前往比較
加入詢價表
目前共有 ,Up to 3 items.
前往詢價
CE 認證
FCC 認證
E-Mark (E13) Certification
VC300-CS 嵌入式系統解決方案採用: DFI特規主機板
VC300-CS
VC300-CS
VC300-CS
系統
處理器
8th/9th Generation Intel® CoreTM Processors, LGA 1151
- Intel® Core™ i7-9700TE 8C/8T 1.8GHz 12MB cache, TDP 35W with Q370PCH
- Intel® Core™ i7-8700T 6C/12T 2.4GHz 12MB cache, TDP 35W with Q370PCH
- Intel® Core™ i7-9700E 8C/8T 2.6GHz 12MB cache, TDP 65W with Q370PCH
- Intel® Core™ i5-9500TE 6C/6T 2.2GHz 9MB cache, TDP 35W with Q370PCH
晶片組
Intel® Q370 Chipset
記憶體
Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
BIOS
AMI SPI 128Mbit
顯示
控制器
Intel® HD Graphics
顯示器
1 x VGA (display out by DB15 connector)
1 x HDMI (with screw lock)
1 x DP++ (standard display port connector DIP type with screw lock) support NIVIDIA Optimus
technology
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2304 @ 60Hz
圖形處理器
Support MXM 3.1 Type A/B/C: RTX3000, RTX2060, RTX2070, RTX2080 GPU modules
Maximum package power 120W, inrush current 150W
PCIe x16
儲存
外插
4 x Swappable 2.5” storage bays with lock.
Supports 7mm SSD devices
擴充
介面
1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
2 x Full-size Mini PCIe support PCIe x1 & USB 2.0 signal with SIM of each (All SIM Cards can be external accessible with cover against vibration)
1 x M.2 B key support PCIe x1, USB2.0, USB3.0 signal with SIM slot (SIM card can be external accessible with cover)
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)
音訊
音訊編解碼器
Realtek ALC262
乙太網路
控制器
5 x Intel® I210IT NIC (10/100/1000Mbps)
1 x Intel® I219LM PHY (10/100/1000Mbps)
LED
指示燈
1 x Power LED (green)
5 x Storage LED (red)
4 x PoE LED

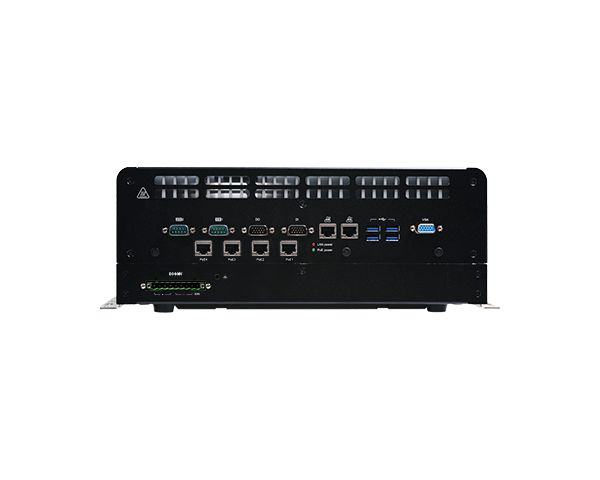

前板輸入/輸出
PoE
4 x RJ45 802.3af PoE by XCT7-4PoE
Support 802.11af, max 15.4W (PSE side)
NOT support wake on Lan
乙太網路
2 x GbE (RJ-45) support Wake on Lan
串口
2 x High speed full RS-232/422/485 (DB-9)
2 x RS-232/422/485 (pin headers)
USB
4 x USB 3.0 (type A)
顯示
1 x VGA display out by DB15 connector
DIO
1 x 8bit isolated DI port by DB-9 connector
1 x 8bit isolated DO port by DB-9 connector
2KV isolation
天線
7 x SMA type antenna hole for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
Power-in
1 x 6Pins 5.0mm terminal block

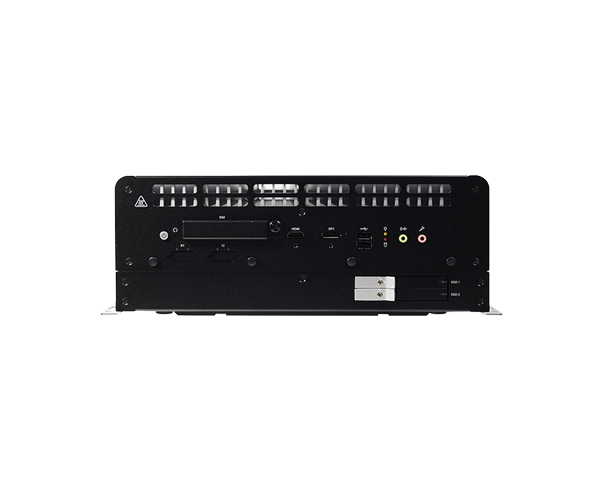

背板輸入/輸出
USB
2 x USB 2.0 (type A)
顯示
1 x HDMI
1 x DP++
音源
1 x Mic-in
1 x Line-out
by 3.5mm 3P Phone Jack
按鍵
1 x Power button
1 x Reset button
SIM
3 x SIM sockets (external accessible with cover)
監視計時器
輸出與時間間隔
System reset, programmable via software from 1 to 255 seconds
安全性
信賴平臺模組
TPM 2.0
電源
類型
+12VDC (9~36V), +24VDC(14.4~33.6)
+12V and +24V compliant to eMark with power ignition function
Reverse polarity protection
連接埠
6 pin 5.0mm terminal block
支援作業系統
支援作業系統
Windows 10 IoT Enterprise 64 Bit
Ubuntu 18.04
環境指標
運作溫度
-25°C to 70°C with when CPU+GPU<100W, up to +85°C for 10min
-25°C to 55°C with when CPU+GPU<160W, up to +70°C for 10min
CPU throttling at high temperature is acceptable
儲存溫度
-40 to 85°C
相對溼度
10% to 90% (non-condensing)
機械結構
結構
Metal + Aluminum
安裝方式
Wall mount
尺寸 (寬 x 高 x 深)
340.5(W) x 223(D) x 132(H) mm (3U height, excluding rubber foot)
重量
9.85 kg
安規認證
衝擊測試
EN61373: 2010, Category 1 Class A & Class B
抗振動測試
EN61373: 2010, Category 1 Class B
認證
CE, FCC Class B (tested with adapter)
E-Mark
Safety: EN50153, EN50124-1
Fire Proof: EN45545
IP Rating
IP40
Country of Origin
Country of Origin
台灣
