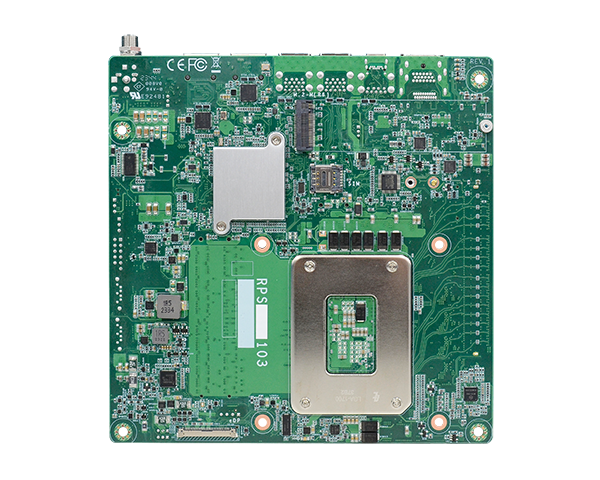

RPS101/RPS103

產品概要

首頁工業級主機板 Mini-ITX RPS101/RPS103

14/13/12th Generation Intel® Core™ Processors

2 DDR5 4800MHz SODIMM up to 64GB

Supports 4 independent displays: 1 DP++, 1 HDMI, 1 USB Type C, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)

Supports up to 4K resolution

Multiple expansion: 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key

Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen2, 4 USB 2.0, 2 SATA 3.0

Typically supports 10-Year CPU Life Cycle Until Q1’38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process

狀態 : 樣品提供前往詢價

+加入比較表 +加入詢價表

產品比較
目前共有樣產品 ,Up to 3 items.
前往比較

加入詢價表
目前共有 ,Up to 3 items.
前往詢價

RPS101/RPS103 相關標籤

#12th Gen Intel® Core™ 處理器#DDR5 記憶體#13th Gen Intel® Core™ 處理器#M.2#14th Gen Intel® Core™ 處理器#SIM卡插槽#12-28V DC-in#Intel#4K2K高解析#PCIe x16擴充插槽#Windows#Linux#12V DC-in#RoHS認證#CE認證#FCC認證#2.5Gb乙太網路

RPS101/RPS103｜Intel®｜Industrial Motherboards｜DFI

系統

處理器

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W
Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W
Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

晶片組

Intel® R680E/Q670E/H610E Chipset

記憶體

Two 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800 MHz
[R680E] ECC support

BIOS

AMI SPI 256Mbit

顯示

控制器

Intel® UHD Graphics 770

特性

3D graphics HW acceleration:DX12, Open GL 4.6, Vulkan 1.2

HW Video Decode:
8K60 12b 4:2:0 HEVC/VP9/SCC
8K30 10b 4:2:0 AV1
5K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC

HW Video Encode:
8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC
4K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC

顯示器

1 x HDMI 2.0
1 x DP++ 1.2
1 x USB Type-C(H610E not support)
1 x eDP/LVDS
1 x DFI display extension port (DP/HDMI/VGA available)

HDMI: resolution up to 4096x2160 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
USB Type C: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
LVDS: resolution up to 1920x1200 @ 60Hz

四重顯示

DP++ + HDMI + LVDS/eDP +USB Type C +DFI display extension port (DP/HDMI/VGA available)

擴充

介面

1 x PCIe x16 (Gen 5) (Max. 75W)
1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1)
[R680E] 1 x M.2 2242/3042/3052 B Key (PCIe 3.0 x1/SATA 3.0x1/USB 3.2 Gen2x1/USB 2.0x1)
[R680E] 1 x M.2 2280 M Key (PCIe 4.0x4 or SATA 3.0x1)

[Q670E] 1 x M.2 2242/3042/3052 B Key (PCIe 3.0 x1/SATA 3.0x1/USB 3.2 Gen2x1/USB 2.0x1)
[Q670E] 1 x M.2 2280 M Key (PCIe 4.0x4 or SATA 3.0x1)

[H610E] 1 x M.2 2242/3042/3052 B Key (PCIe 3.0x1/SATA3.0x1/USB 3.2 Gen1x1/USB 2.0x1)
[H610E] 1 x M.2 2280 M Key (PCIe 3.0x1/SATA3.0x1)

音訊

音訊編解碼器

Realtek ALC888

乙太網路

控制器

1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V
2 x Intel® I226-V (only H610E support)

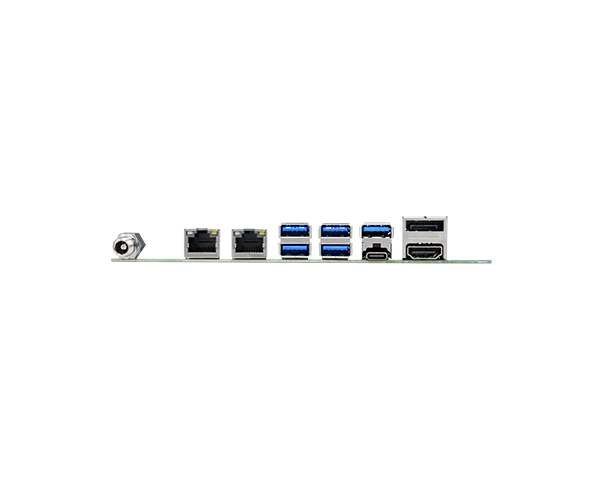

背板輸入/輸出

乙太網路

2 x 2.5GbE (RJ-45)

USB

[R680E] 5 x USB 3.2 Gen 2 Type A
[R680E] 1 x USB 3.2 Gen 2 USB Type C

[Q670E] 5 x USB 3.2 Gen 2 Type A
[Q670E] 1 x USB 3.2 Gen 2 USB Type C

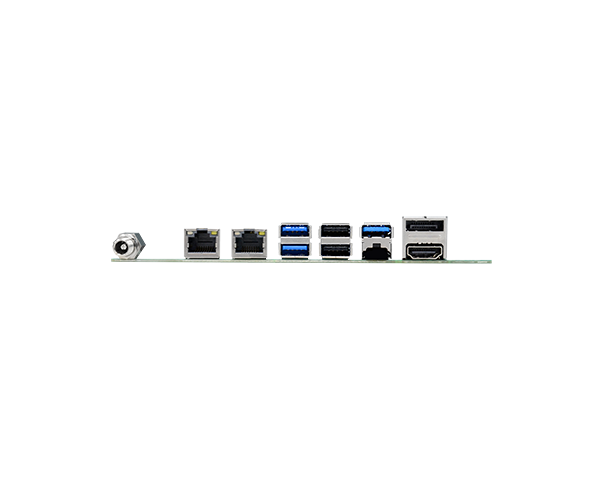

[H610E] 2 x USB 3.2 Gen 2
[H610E] 1 x USB 3.2 Gen 1
[H610E] 2 x USB 2.0

顯示

1 x HDMI 2.0
1 x DP++ 1.2
1 x USB Type-C(H610E not support)

內部輸入/輸出

串口

2 x RS-232/422/485 (w/o Power) Box header (2.0mm pitch)

USB

[R680E] 4 x USB 2.0 (2 2x5 2.0mm pitch header)

[Q670E] 4 x USB 2.0 (2 2x5 2.0mm pitch header)

[H610E] 2 x USB 2.0 (1 2x5 2.0mm pitch header)

顯示

1 x eDP/LVDS
1 x DFI display extension port (DP/HDMI/VGA available)

音源

1 x Front Audio Header (1 x Line-out, 1 x Mic-in)

SATA

2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

監視計時器

輸出與時間間隔

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信賴平臺模組

Nuvoton TPM 2.0

電源

類型

Single 12V +/-10% DC (RPS101)
Wide Range 12~28V (RPS103)

連接埠

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)

耗能

TBD

RTC 電池

CR2032 Coin Cell

支援作業系統

微軟

Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise

Linux

環境指標

溫度

Operating: -5 to 65°C
Storage: -40 to 85°C

濕度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

TBD

機械結構

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

Top Side:19mm
Bottom Side: 4.5mm

安規認證

認證

CE, FCC Class B, RoHS

裝箱單

• 1 RPS101/RPS103 motherboard
• 1 Serial ATA data & power cable w/lock (Length: 300mm), A81-002101-016G
• 1 COM port cable (Length: 250mm, 1 x COM port), A81-015011-001G
• 1 I/O shield w/ icon (2LAN/5USB), TBD

Country of Origin

台灣

產品資料

工業級主機板型錄 (PDF) 7.31MB 2024/04/24

RPS101/RPS103 規格書 (PDF) 1.3MB 2024/04/08

技術文件

RPS101/RPS103 簡易指南 (PDF) 436.36KB 2024/02/22

訂購資訊

型號料號描述
型號 :
RPS101-R680E 料號 :
770-RPS1011-000G 描述 :
2 SODIMM, 2 2.5GbE, 2 RS-232/422/485, 6 USB 3.2 Gen2, 4 USB 2.0, TPM 2.0, 12V DC, With Fan, -5 to 65°C
型號 :
RPS103-Q670E 料號 :
770-RPS1011-100G 描述 :
2 SODIMM, 2 2.5GbE, 2 RS-232/422/485, 6 USB 3.2 Gen2, 4 USB 2.0, TPM 2.0, 12-28V DC, With Fan, -5 to 65°C
型號 :
RPS103-H610E 料號 :
770-RPS1011-200G 描述 :
2 SODIMM, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 1 USB 3.2 Gen1, 4 USB 2.0, TPM 2.0, 12-28V DC, With Fan, -5 to 65°C
