PIC-Q170/H110

工业级主机板 PICMG 1.3 PIC-Q170/H110
  • 2 DDR4 DIMM up to 32GB
  • Rich I/O: 2 Intel GbE, 4 USB 3.0, 6 USB 2.0
  • 7/6th Gen Intel® Core™ with Intel® Q170/H110
  • Expansion: 1 PCIe x16 Gen. 3, 4 PCIe x1 Gen. 3, 4 PCI, 1 M.2 2280 M Key
  • 2 independent displays: VGA + DVI-D (available upon request)
  • DVI resolution up to 1920x1200 @ 60Hz
  • 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

状态 : 上市产品

支持±15kV静电空气放电保护
4K2K高清
PCIe x16扩充插槽
VGA
DDR4内存
产品比较
目前共有 样产品 ,Up to 3 items.
前往比较
加入询价表
目前共有 ,Up to 3 items.
前往询价
RoHS 认证
CE 认证
FCC 认证
PIC-Q170/H110
PIC-Q170/H110
系统
处理器
7th Generation Intel® Core™ Processors, LGA1151
Intel® Core™ i7-7700 Processor, Four Core, 8M, 3.6GHz (4.2GHz), 65W
Intel® Core™ i7-7700T Processor, Four Core, 8M, 2.9GHz (3.8GHz), 35W
Intel® Core™ i5-7500 Processor, Four Core, 6M, 3.4GHz (3.8GHz), 65W
Intel® Core™ i5-7500T Processor, Four Core, 6M, 2.7GHz (3.3GHz), 35W
Intel® Core™ i3-7101E Processor, Dual Core, 3M, 3.9GHz , 54W
Intel® Core™ i3-7101TE Processor, Dual Core, 3M, 3.4GHz , 35W
Intel® Core™ G3930E Processor, Dual Core, 2M, 2.9GHz, 54W
Intel® CoreTM G3930TE Processor, Dual Core, 2M, 2.7GHz, 35W
6th Generation Intel® CoreTM Processors, LGA1151
Intel® CoreTM i7-6700 Processor, Four Core,8M, 3.4GHz (4.0GHz), 65W
Intel® CoreTM i7-6700TE Processor, Four Core,8M, 2.4GHz (3.4GHz), 35W
Intel® CoreTM i5-6500 Processor, Four Core,6M, 3.2GHz (3.6GHz), 65W
Intel® CoreTM i5-6500TE Processor, Four Core,6M, 2.3GHz (3.3GHz), 35W
Intel® CoreTM i3-6100 Processor, Dual Core,4M, 65W
Intel® Core™ i3-6100TE Processor, Dual Core,4M, 2.7GHz, 35W
Intel® Pentium® G4400 Processor, Dual Core,3M, 3.3GHz, 65W
Intel® Pentium® G4400TE Processor, Dual Core,3M, 2.9GHz, 35W
Intel® Celeron® G3900 Processor, Dual Core,2M, 2.8GHz, 65W
Intel® Celeron® G3900TE Processor, Dual Core, 2M, 2.6GHz, 35W
芯片组
Intel® Q170/H110 Chipset
内存
Two 288-pin DIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
显示
显示器
1 x VGA
1 x DVI-D (available upon request) VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
双重显示
VGA + DVI-D (available upon request)
扩充
界面
1 x PCIe x16 Gen. 3
4 x PCIe x1 Gen. 3
4 x PCI
1 x M.2 M key 2280 (PCIe/SATA3.0) (Q170 only)
以太网路
控制器
Q170: 1 x Intel® I219LM PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT)
H110: 1 x Intel® I219V PHY, 1 x Intel® I211AT PCIe (10/100/1000Mbps)

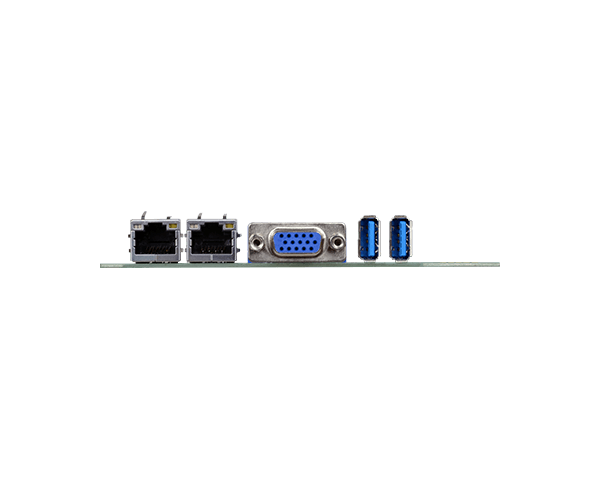

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
2 x USB 3.0
显示
1 x VGA
1 x DVI-D (available upon request)
内部输入/输出
串行端口
2 x RS232/422/485 (2.54mm pitch)
2 x RS232 (2.54mm pitch)
USB
2 x USB 3.0 (2.0mm pitch) (Q170 only)
6 x USB 2.0 (2.54mm pitch) (Q170), 4 x USB 2.0 (2.54mm pitch) (H110)
SATA
4 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
其他 输入/输出
ATX 12V Power Connector and Expansion Goldfinger
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0/dTPM 2.0(optional)
电源
耗能
Idle: i7-6700 65W: 12V @ 0.57A (6.84W), 5V @ 0.72A (3.6W), 3.3V @ 0.41A (1.353W)
Max: i7-6700 65W: 12V @ 7.19A (86.28W), 5V @ 0.94A (4.7W), 3.3V @ 0.41A (1.353W)
支持操作系统
微软
Windows 7 (32/64 bit)
Windows 8.1 (64 bit)
Windows 10 IoT Enterprise (64 bit)
Note: 7th Gen Intel Core processors only support Win 10.
Linux
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
MTBF
PIC-Q170/H110: 666,097 hrs @ 25°C; 404,733 hrs @ 45°C; 263,381 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Full Size PICMG 1.3 338mm (13.3") x 126.39mm (4.98")
高度
PCB: 1.6mm
Top Side: 20.95mm
Bottom Side: 4.4mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 PIC-Q170/H110 board
1 Dual USB2.0 port cable (with bracket) 332-253010-026G
2 COM port cable (with bracket) 332-700730-104G
2 Serial ATA data cable 332-553001-005G
