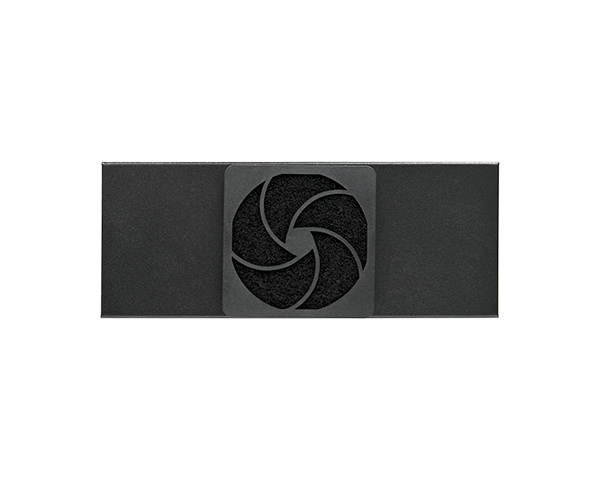

WM120-CMS171/CMS173｜Intel®｜工业级系统｜友通资讯 DFI

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)
Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)
Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)
Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)
Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)
Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)
Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)
Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)
Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)

Intel® Q470E Chipset

DDR4 32GB

AMI SPI 128Mbit

Intel® HD Gen 9 Graphics

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

2 x DP++
DP1.2: resolution up to 4096x2304@60Hz

2 x DP++

1 x 2.5" SATA 3.0 1TB SSD
1 x M.2 2280 M Key (PCIe x4/SATA) (support NVMe and Intel® Optane memory)

1 x PCIe x16 (Gen3 x8signal, Option)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) for WiFi6
1 x M.2 2280 M key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support) for SSD
1 x M.2 3042/3052 B key (PCIe/USB3.0) for 4G LTE/5G with SIM holder
Note,
65W CPU config. does not support expansion card.
35W CPU config. supports one expansion card via riser card

Realtek ALC888

1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
1 x Intel® I211AT PCIe (10/100/1000Mbps)

1 x Power LED
1 x HDD LED

2 x GbE (RJ-45)

8 x USB 3.2 Gen2
4 x USB 3.2

2 x DP++

1 x Power button
1 x Reset button

1 x 8cm System Fan, with replaceable air filter

System Reset, Programmable via Software from 1 to 255 Seconds

Infineon TPM1.2/2.0 (optional)

Lockable DC jack, co-lay with 4pin connector
WM120-CMS173 : 15V to 36VDC in
WM120-CMS171 : 12VDC in

DC-in Jack

Idle: i7-10700E 65W: 19V @ 0.98A (18.62W)
Max: i7-10700E 65W: 19V @ 9.8A (186.2W)

CR2032 Coin Cell

Windows 10 IoT Enterprise 2019

-5° to 45° C

-30 to 60°C with RTC Battery;
-40 to 85°C without RTC Battery

5 to 95% RH (non-condensing)

Sheet Metal

Wall mount

224 x 88 x 206mm

2.47kg

Black

Operating: 3G
Non-operating: 5G

Operating: 1G
Non-operating: 3G

ISTA Project 1A

CE, FCC Class A, UL, RoHS (To be applied), UKCA

1 WM120-CMS System Unit
1 CPU Cooler (65W)
1 SATA data with power cable (7 + 15P) (Length: 220mm)
4 HDD Screws
1 System Fan
