ADN253|Intel®|工业级主机板|友通资讯 DFI

ADN253
首页 工业级主机板 4" SBC ADN253
  • Intel® Processor N-series/Atom® Processor X Series
  • On Board OOB built-in (Opt.)
  • Rich I/O: 2 2.5GbE, 1 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 2 USB 2.0, 2 COM
  • High speed LPDDR5 4800 memory down
  • Up to Quad Display Support via HDMI/USB-C/eDP, Quad display support by Dev
  • On Board eMMC /SATA III/ M.2 Storage solution
  • Intel TCC within the system

状态 : 初版 前往询价

四个独立显示
eMMC
丰富 I/O
2.5Gb以太网络
LPDDR5内存
OOB
产品比较
目前共有 样产品 ,Up to 3 items.
前往比较
加入询价表
目前共有 ,Up to 3 items.
前往询价
CE 认证
FCC 认证

ADN253 相关标签

#9~36V DC-in#Intel® Atom® Alder Lake-N 处理器#eDP#LPDDR5内存#M.2#eMMC#带外管理 (OOB)#IoT#Intel#无风扇设计#1Gb以太网络#Windows#Linux#HDMI#多元扩充插槽#CE认证#FCC认证#2.5Gb乙太網路
ADN253|Intel®|Industrial Motherboards|DFI
ADN253|Intel®|Industrial Motherboards|DFI
ADN253|Intel®|Industrial Motherboards|DFI
ADN253|Intel®|Industrial Motherboards|DFI
系统
处理器
Intel Alder Lake-N Series
Intel PC Client Series
Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz
Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz
Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz
Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz
Intel® Embedded Series
Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz
Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz
Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz
内存
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
显示
控制器
Intel® UHD Graphics
特性
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows)
Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0
显示器
1 x eDP(Default)/LVDS
1 x HDMI 1.4
1 x USB-C Alt. Mode, one more USB-C(opt.)
储存
内插
1 x M.2 2242/2280 M key (SATA/PCIe)
1 x SATA III
eMMC
eMMC 32GB/64GB (Opt.)
扩充
界面
1 x M.2 2242/2280 M key: PCIex1/SATA
1 x M.2 2230 E Key: USB2.0/PCIe
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe
音讯
音讯编译码器
ALC888S
以太网路
控制器
2 x Intel Ethernet controller i226 2.5GbE (support TSN)
1 x Intel Ethernet controller i210 GbE
前板输入/输出
串口
3 x RS232/422/485 DB9 connector

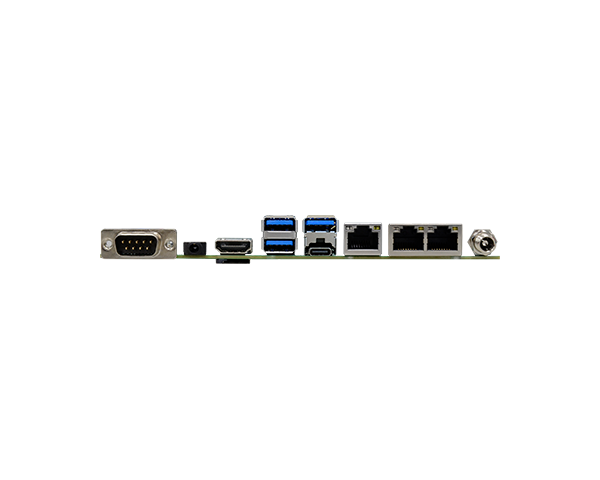

背板输入/输出
以太网络
2 x 2.5GbE RJ45
1 x GbE RJ45
串口
1 x COM/DIO port
USB
3 x USB 3.2 type A
1 x USB-C 3.2
显示
1 x HDMI
音源
1 x 3.5mm Line out/Mic In
储存
1 x MicroSD
内部输入/输出
串行端口
2 x RS232
显示
1 x 40 pin LVDS/eDP (Default eDP)
SATA
1 x SATA 3.0
1 x 5V SATA Power (support SATA HDD LED via front panel)
SMBus
1 x SMBus
前面板
1 x front panel
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM 2.0 (Available Upon Request)
电源
类型
Wide Range 9~36VDC
端口
DC Jack (or vertical type 4pin connector)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 11 IoT Enterprise
Linux
Ubuntu 22.04
环境指标
温度
Operating: 0 to 80°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
机械结构
尺寸
4" SBC Form Factor
165mm (6.5") x 115mm (4.53")
安规认证
认证
CE, FCC Class B (TBD in later stage)
装箱单
装箱单
• 1 ADN253 board
• 1 SATA data with 4pin power cable
• 1 Heat Spreader
订购资讯
  • 型号 料号 描述
  • 型号 :
    ADN253
    料号 :
    770-ADN2531-000G
    描述 :
    Intel® Atom® X7425E, 16GB Memory down, 0 to 80°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C, *One more display output via USB-C by Opt.), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
  • 型号 :
    ADN253
    料号 :
    770-ADN2531-100G
    描述 :
    Intel® Atom® X7211E, 8GB Memory down, 0 to 80°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C, *One more display output via USB-C by Opt.), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
  • 型号 :
    ADN253
    料号 :
    770-ADN2531-500G
    描述 :
    Intel® Processor N97, 8GB Memory down, 0 to 80°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C, *One more display output via USB-C by Opt.), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
  • 型号 :
    ADN253
    料号 :
    770-ADN2531-600G
    描述 :
    Intel® Core™ i3-N305, 16GB Memory down, 0 to 80°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C, *One more display output via USB-C by Opt.), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
