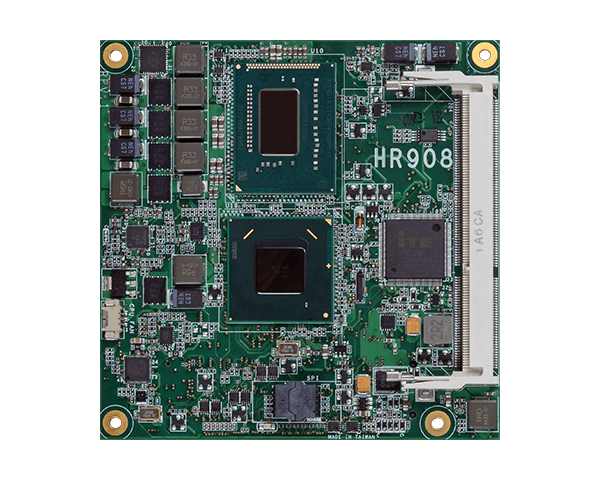

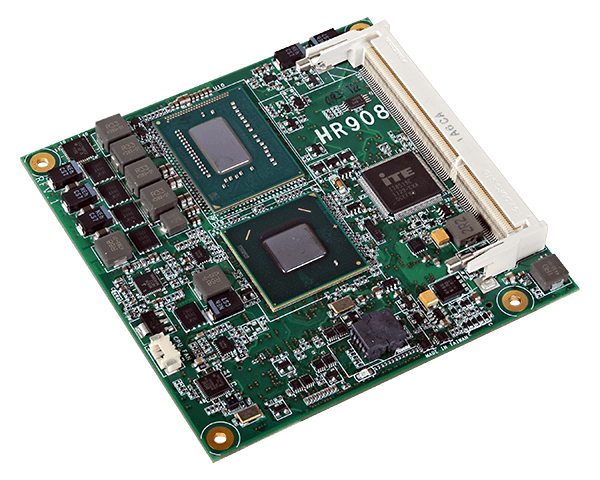

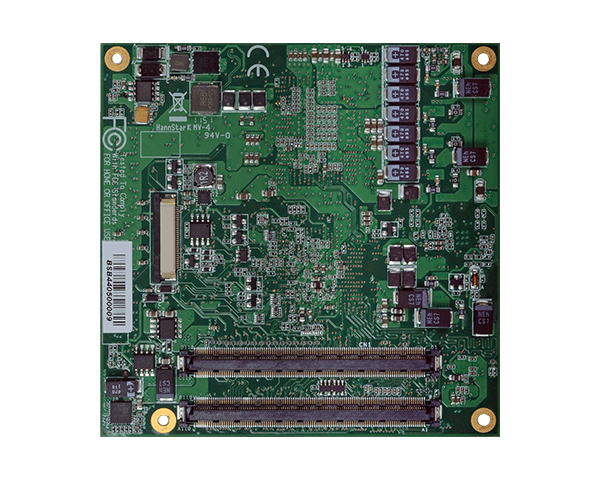

HR908-B｜Intel®｜嵌入式电脑模块｜友通资讯 DFI

BGA 1023 packaging technology
- 3rd Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3615QE (6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
- 2nd Generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W

Intel® QM67 Chipset

One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHz

UEFI SPI 64Mbit

Intel® HD Graphics 4000 (3rd generation processors)
Intel® HD Graphics 3000 (2nd generation processors)
Intel® HD Graphics (Intel® Celeron™ processors)

DirectX Video Acceleration (DXVA) for accelerating video processing
- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors)
Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors)

1 x VGA
1 x LVDS
3 x DDI (HDMI/DVI/DP)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI/DP: resolution up to 1920x1200 @ 60Hz

1 x PCIe x16 (Gen 3)
1 x PCIe x4 and 3 PCIe x1 or 7 PCIe x1
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)

HD Audio

1 x Intel® 82579LM (10/100/1000Mbps)

8 x USB 2.0

2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
2 x SATA 2.0 (up to 3Gb/s)

1 x 8-bit GPIO

System Reset, Programmable via Software from 1 to 255 Seconds

12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)

TBD

Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)

Operating: 0 to 60°C
Storage: -20 to 85°C

Operating: 10 to 90% RH
Storage: 10 to 90% RH

TBD

COM Express® Compact 95mm (3.74") x 95mm (3.74")

PICMG COM Express® R2.1, Type 6

CE, FCC Class B, RoHS

1 HR908 board
