TPC170-SD | 7th/6th Gen Intel Core | Skylake | Industrial Panel PC | DFI

TPC170-SD

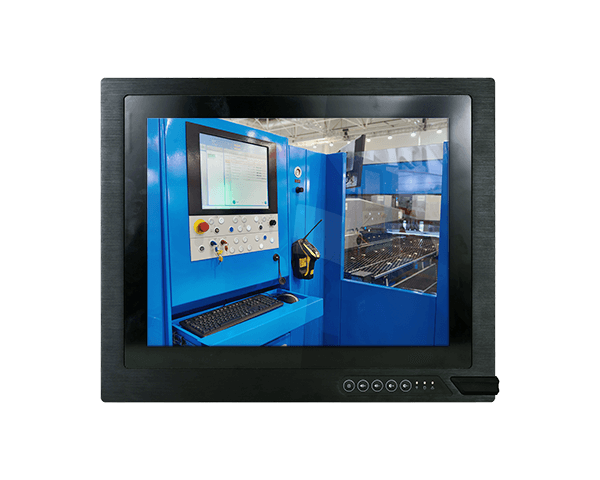

Industrial Panel PCs & Displays High-Performance Touch Panel PC TPC170-SD
  • VESA/Panel Mount
  • 1 USB 2.0 at the front panel for easy access
  • 2 x 2.5" SATA drive bays
  • 17" 1280x1024 TFT LCD Panel with Touch Screen
  • 5 function keys at the front panel
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Sample Available

IP65 Front Panel Protection
DVI-I
VGA
DP
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

TPC170-SD Related Tags

#TPC#Intel#Mini PCIe#IP65 Front Panel Protection#DVI-I#DVI-D#VGA#DDR4#CE Certification#FCC Certification#High-Performance
TPC170-SD | 7th/6th Gen Intel Core | Skylake | Industrial Panel PC | DFI
TPC170-SD | 7th/6th Gen Intel Core | Skylake | Industrial Panel PC | DFI
TPC170-SD | 7th/6th Gen Intel Core | Skylake | Industrial Panel PC | DFI
TPC170-SD | 7th/6th Gen Intel Core | Skylake | Industrial Panel PC | DFI
TPC170-SD | 7th/6th Gen Intel Core | Skylake | Industrial Panel PC | DFI
System
Processor
7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
Display and Touch Screen
Display
17" 1280x1024 TFT LCD Panel with Projected Capacitive Touch and Resistive Touch Screen
Brightness
350 cd/m²
View Angle
170 (H) / 160 (V)
Backlight Lifetime
30,000 MTBF LED Backlight
Expansion
Interface
1 x Full-size mSATA (PCIe/USB)
2 x PCIe x8 or 2 x PCI + 1 x Mini PCIe
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps)
Front I/O
USB
1 x USB 2.0

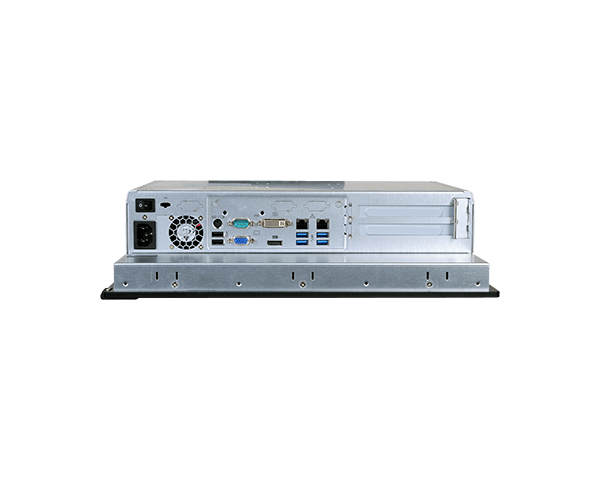

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9)
1 x RS-232 (DB-9) (available upon request)
1 x RS-232/422/485 (available upon request)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-out (available upon request)
Power
Type
100-240VAC
Connector
C14 Connector
Consumption
145W
Environment
Operating Temperature
0 to 50°C
Storage Temperature
-30 to 70°C
Relative Humidity
10% to 90% @ 40°C (non-condensing)
Mechanism
Dimensions
404 x 363.8 x 98.9 mm
Construction
Sheet Metal
IP Rating
IP65 front bezel
Mounting
Panel/VESA (75x75/100x100) Mount
Weight
9.6W
Standards and Certifications
Certifications
CE, FCC Class A
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    TPC170R-SDAC-2PCI
    Part Number :
    750-TPC171-000G
    Description :
    17" Panel PC ; SD100, Q170 chipset, AC input, 5-wire Resistive Touch, 2 x PCI, F/G SYSTEM, RoHs
  • Model Name :
    TPC170P-SDAC-2PCI
    Part Number :
    750-TPC171-100G
    Description :
    17" Panel PC ; SD100, Q170 chipset, AC input, capacitive touch, 2 x PCI, F/G SYSTEM, RoHs
  • Model Name :
    TPC170R-SDAC-2PCIE
    Part Number :
    750-TPC171-200G
    Description :
    17" Panel PC ; SD100, Q170 chipset, AC input, 5-wire Resistive Touch, 2 x PCIe x8, F/G SYSTEM, RoHs
  • Model Name :
    TPC170P-SDAC-2PCIE
    Part Number :
    750-TPC171-300G
    Description :
    17" Panel PC ; SD100, Q170 chipset, AC input, capacitive touch, 2 x PCIe x8, F/G SYSTEM, RoHs
Optional Items
  • Item Name Part Number Description
  • Item Name :
    HDD
    Part Number :
    785-H25500G
    785-H25320G
    Description :
    2.5” SATA HDD, 500GB, RoHS
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    VESA Mount
    Part Number :
    761-TPC000-000G
    Description :
    ACCESSORY VESA MOUNT KITS TPC Series/KS2xx RoHS
  • Item Name :
    Panel Mount
    Part Number :
    761-TPC171-000G
    Description :
    TPC170-SD Panel PC Panel Mount Kit RoHS
