EC180-CS｜Intel®｜Industrial Computers｜DFI

EC180-CS
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers AI Inference/Training System EC180-CS
  • 8th/9th Generation Intel® Core™ Processors
  • Multiple displays: 4 DP (from MXM), 1 DP/HDMI
  • AI Accelerated: Up to 60W GPU MXM module supported
  • Scalability: 3 M.2 expansion slots
  • Support M.2 B key 3052 5G cellular module
  • Rich I/O connectivity: 4 LAN, 4 USB 3.1, 2 COM

Status : Preliminary QUOTE NOW

Fanless Design
Compact Size
4K2K Display
5G
Rich I/O
Multiple Displays
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
EC180-CS Embedded Solution Powered by:
CS181-H310

CS181-H310

Mini-ITX Motherboard Front

Mini-ITX, 9th/8th Gen Intel® Core™, 2 DDR4 SODIMM, 1 MXM Type-A/B, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 eDP, 1 VGA, 1 DP++/HDMI, 4 DP(MXM), 2 SATA 3.0

 CS181-Q370

CS181-Q370

CS181-Q370 | 8th/9th Gen Intel Core | MXM Motherbaord | Mini-ITX | DFI

Mini-ITX, 9th/8th Gen Intel® Core™, 2 DDR4 SODIMM, 1 MXM Type-A/B, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 eDP, 1 DP++/HDMI, 4 DP(MXM), 2 SATA 3.0

EC180-CS Related Tags

#8th Gen Intel® Core™ Processor #NVIDIA AI#Windows 10#AI#9th Gen Intel® Core™ Processor#Compact PC#5G#Fanless Design#Compact Size#4K2K Display#Windows#Linux#HDMI#DP#Multiple Expansion#19V DC-in#DDR4#RoHS Certification#CE Certification#FCC Certification
EC180-CS
EC180-CS
EC180-CS
EC180-CS

Related Products:

Select All - Clear
System
Processor
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Pentium® G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W)
Intel® Celeron® G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W)
Chipset
Intel® H310/Q370 Chipset
Memory
DDR4 2400/2666MHz up to 64GB
BIOS
AMI SPI 128Mbit (supports UEFI/Legacy mode)
Graphics
Controller
Intel® UHD Graphics 630 (Pentium® G5400 and Celeron® G4900 support Intel® UHD
Graphics 610)
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP (from MXM)
1 x DP/HDMI (auto-detection)
DP: resolution up to 4096x2304@60Hz
HDMI: resolution up to 4096x2160@30Hz
AI Accelerator
Interface
1 x MXM 3.1 slot, Type-A/B up to 60W
Storage
Internal
1 x M.2 M key supports 2242/2280 slot (PCIe Gen3 x4/SATA)
1 x SATA III connector for 1 x 2.5” SSD
Expansion
M.2
[H310] M.2 M key 2242/2280 slot (PCIe Gen2 x1)
[H310] M.2 B key 3052 slot (SATA 3.0)
[H310] M.2 E key 2230 slot (USB 2.0, PCIe Gen2 x1)

[Q370] M.2 M key 2242/2280 slot (PCIe Gen3 x4, SATA3.0)
[Q370] M.2 B key 3052 slot (PCIe Gen3 x1, USB 3.2 Gen1)
[Q370] M.2 E key 2230 slot (USB 2.0, PCIe Gen3 x1)
Audio
Audio Codec
5.1 CH Audio Codec:Realtek ALC888S-VD2-GR
Ethernet
Controller
3 x Intel® I210AT
[H310] 1 x Intel® I219V
[Q370] 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x PWD LED
1 x HDD LED

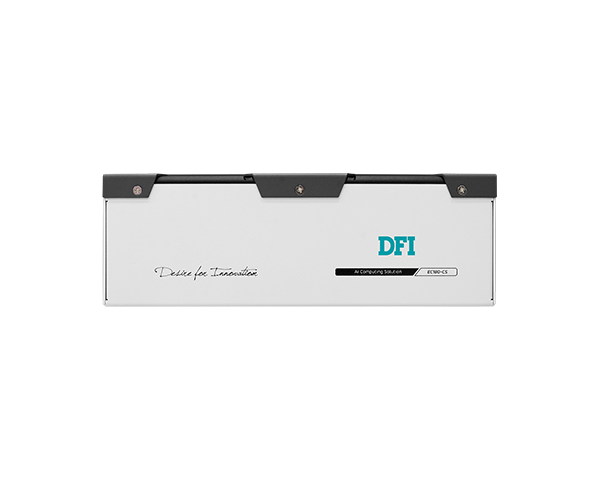

Front I/O
Serial
2 x RS232/RS422/RS485, Select by BIOS
Audio
1 x Line-out
1 x Mic-in
Buttons
1 x Power button

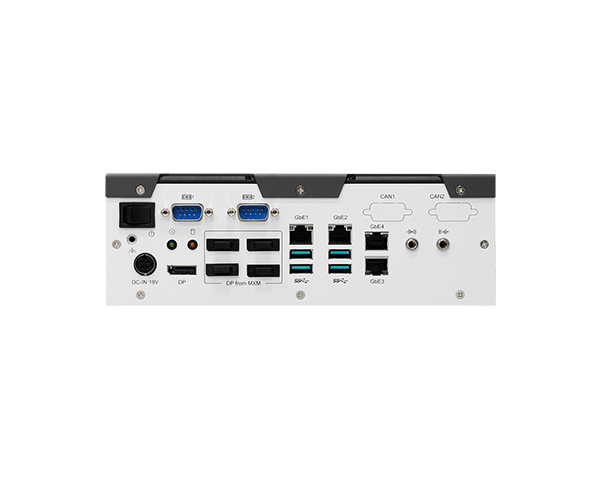

Rear I/O
Ethernet
4 x GbE
USB
4 x USB 3.1 Gen2
Display
4 x DP (from MXM)
1 x DP/HDMI (auto-detection)
Antenna
4 x SMA for 5G module
2 x SMA for WiFi module
Watchdog Timer
Output & Interval
Watchdog timeout programmable via software from 1 to 255 seconds
Security
TPM
dTPM2.0 (default)
Power
Connector
DC-in Jack
Voltage
19V DC-in
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Operating Temperature
0 to 45°C
Storage Temperature
-40 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)uminum extrusion + Metal
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall mount (mounting brackets and screws)
Dimensions (W x H x D)
250 x 180 x 76mm (not include wall mount bracket)
Weight
5 Kg
Standards and Certifications
Shock
IEC 60068-2-27
15 g, 11 ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
IEC 60068-2-64 Test Fh: Vibration board-band random test
Frequency: 5 Hz to 500 Hz
Acceleration: 2g rms
Test Axis: X, Y, Z axis
Test Time: 30 mins (Each axis), total 90 mins.
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
• 1 EC180-CS system unit
• 3 M.2 slot screws
• 2 MXM Module screws
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC180-CS     Part Number :
     750-EC18000-100G     Description :
    Fanless, CS181-H310, DC-in 19V, F/G SYSTEM RoHS
  • Model Name :
    EC180-CS-9700-16G-A500     Part Number :
     750-EC18000-200G     Description :
    Fanless, CS181-H310, i7-9700TE, DDR4 16GB x2, M.2 2280 512GB Genx4, MXM A500, RTL8822CE, CAN module, DC-in 19V, F/G SYSTEM RoHS
  • Model Name :
    EC180-CS-9700-16GB-A2000     Part Number :
     750-EC18000-000G     Description :
    Fanless, CS181-H310, i7-9700TE, DDR4 16GB x2, M.2 2280 512GB Gen4x4, MXM A2000, RTL8822CE, CAN module, DC-in 19V, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wifi Module     Part Number :
     612-RTL882-000G     Description :
    Wi-Fi+BT(V5.0+LE and BR/EDR) M.2 2230 Combo Module Card RTL8822CE
  • Item Name :
    A2000 MXM     Part Number :
     612-M3A200-000G     Description :
    60W, 2560 CUDA cores, 8.25 TFLOPS, 8GB GDDR6 with 4x DP outputs
  • Item Name :
    A500 MXM     Part Number :
     612-SKYMXM-000G     Description :
    35W, 2048 CUDA cores, 6.54 TFLOPS,4GB GDDR6 (computing only)
