ECX700-ADP｜Intel®｜Industrial Computers｜DFI

ECX700-ADP
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ruggedized Embedded System ECX700-ADP
  • Intel® Alder Lake-P Processor i5-1245UE/ i7-1265UE
  • Intel® Iris® Xe Graphic Performance
  • Extreme Ruggedized design to IEC 60068-2-64 & -20 ~ 70°C wide temperature
  • Rich I/O help integrators meet the demand for various applications
  • To fulfill wireless transmission, an external SIM slot reduces the difficulties to change SIMs, and the high gain antenna ensures the quality of the signal
  • Various applications: Industrial automation, Outdoor application
  • Waterproof & Dustproof design conforming to IP67

Status : Preliminary QUOTE NOW

Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Fanless Design
HDMI
Rugged Design
IP67
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
ECX700-ADP Embedded Solution Powered by:
ADP253

ADP253

ADP253

4" SBC, 12th Gen Intel® Core™ Processors, On-board memory, 1 DDR4 SO-DIMM, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode, 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0

ECX700-ADP Related Tags

#12th Gen Intel® Core™ Processor#9~36V DC-in#IP69K#M.2#IP67#IoT#Intel#CAN-Bus#Fanless Design#Windows#Linux#HDMI#RoHS Certification#CE Certification#FCC Certification
ECX700-ADP｜Intel®｜Industrial Computers｜DFI
ECX700-ADP｜Intel®｜Industrial Computers｜DFI
ECX700-ADP｜Intel®｜Industrial Computers｜DFI
ECX700-ADP｜Intel®｜Industrial Computers｜DFI
ECX700-ADP｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
12th Gen Intel® Core™ Processors, BGA 1744 (Alder Lake-P, 15W)
Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz)
Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz)
Memory
On board memory supports 8GB.(default)
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Iris® Xe Graphics eligible
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
Display
1 x HDMI
HDMI: resolution up to 3840x2160@30Hz
Storage
eMMC
128GB Available(256GB/512GB by project support)
Expansion
Interface
1 x M.2 2280 M key (PCIe x4 & SATA)
1 x M.2 3042/3052 B key (PCIe x1 & USB3.0/2.0)
1 x M.2 2230 E Key (PCIe x1 & USB2.0)
Ethernet
Controller
2 x Intel® i225IT (10/100/1000Mbps)
LED
Indicators
1 x Power Status LED

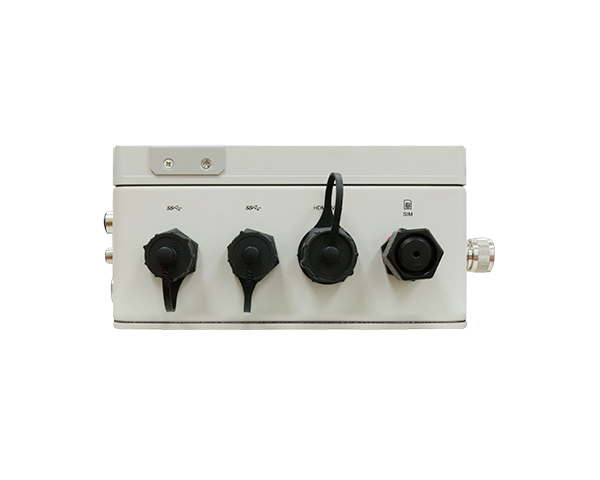

Flank I/O
Display
1 x HDMI
SIM
1 x SIM card slot
USB
2 x USB 3.2

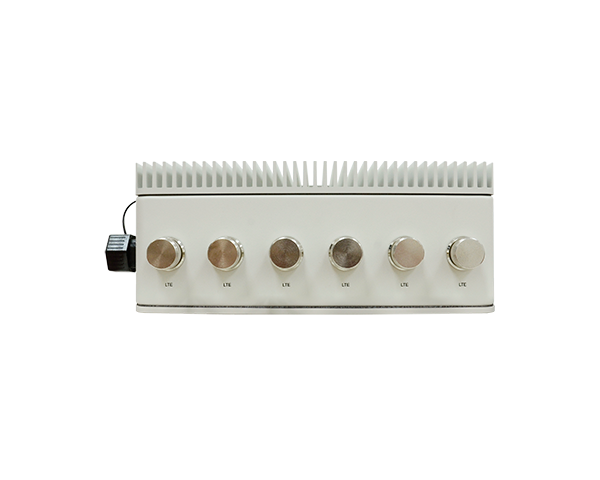

Top I/O
Antenna Hole
6 x Antenna (2 x WiFi, 4 x LTE)

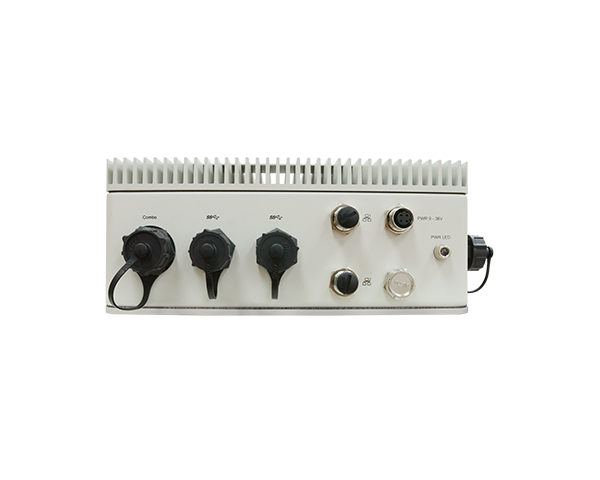

Bottom I/O
Ethernet
2 x GbE
USB
2 x USB 3.2
Combo Port
2 x RS232 and 2 x Can bus protocol
Power
1 x 9~36V DC-IN
Vent
1 x Vent
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
DC-in 9~36V
Connector
M12 D-code
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Operating Temperature
-20 to 70°C
Storage Temperature
-40 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Mounting
Wall mount
Dimensions (W x H x D)
239.24 x 194 x 101 mm
Weight
TBD
Standards and Certifications
Shock
Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
Vibration
Operation Vibration test: MIL-STD-810G 514.6C-2, Figure 514.6C-2
Certifications
CE, FCC class A, ROHS
Construction
IP67/ IP69K enclosure
Packing List
Packing List
· 1 ECX700-ADP system unit
· 1 COMBO cable (for COM & CANBUS)
· 2 LAN cable
· 2 Wi-Fi antenna
· 2 LTE antenna
· 6 Dust cover (for antenna connector)
· 1 DC input cable
Country of Origin
Country of Origin
Taiwan
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ECX700- ADP2040A-i5     Part Number :
     750-ECX7001- 000G     Description :
    i5-1245UE, 8GB Memory down, 128GB SSD, 4 USB 3.2, 2 LAN, 1 HDMI, 2 COM + 2 CAN bus, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, IP67 M12 4pin DC cable L=100mm, IP67 COM+ CAN cable L=300mm, M12 Lan cable L=300mm
  • Model Name :
    ECX700- ADP2040A-i7     Part Number :
     750-ECX7001- 100G     Description :
    i7-1265UE, 8GB Memory down, 128GB SSD, 4 USB 3.2, 2 LAN, 1 HDMI, 2 COM + 2 CAN bus, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, IP67 M12 4pin DC cable L=100mm, IP67 COM+ CAN cable L=300mm, M12 Lan cable L=300mm
Optional Items
  • Item Name Part Number Description
  • Item Name :
    External USB cable     Part Number :
     A81-001129-068G     Description :
    IP67 USB Plug to USB Plug, 300mm
  • Item Name :
    External HDMI cable     Part Number :
     A81-026004-068G     Description :
    IP67 HDMI Plug to USB Plug, 300mm
