X6-MTH-ORN|Intel®|Industrial Computers|DFI

X6-MTH-ORN
Home Industrial Computers AI Inference/Training System X6-MTH-ORN
  • Reinforce Nvidia ORIN NX computing power by Intel® Core™ Ultra Processor
  • AI engine NVIDIA Jetson Orin NX, up to 100 TOPS
  • Support Remote management and OTA by DFI OOB module
  • 4 M.2 B, E, M key expansion slots
  • Optional MXM supported with 3 DP and 1 HDMI ports
  • 4 USB 3.2, 4 RJ45 GbE, micro USB, Serial, CAN bus

Status : Preliminary QUOTE NOW

Fanless Design
Multiple Expansion
Quad Independent Display
Rich I/O
AI
OOB
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UL-US Certification

X6-MTH-ORN Related Tags

#DDR5#9~36V DC-in#OOB#M.2#Nvidia Orin NX#Nvidia Orin Nano#MXM#NVIDIA AI#Intel® Core™ Ultra processors #AI#Intel#CAN-Bus#Fanless Design#1G Ethernet#Windows#Linux#HDMI#DP#Multiple Expansion#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification#OOB or RemoGuard
X6-MTH-ORN|Intel®|Industrial Computers|DFI
X6-MTH-ORN|Intel®|Industrial Computers|DFI
X6-MTH-ORN|Intel®|Industrial Computers|DFI
X6-MTH-ORN|Intel®|Industrial Computers|DFI
X6-MTH-ORN|Intel®|Industrial Computers|DFI
System
Processor
Intel® Core™ Ultra 7 165U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 5 155U (2 P-Cores x 1.6 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
Intel® Core™ Ultra 5 135U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W)
Memory
Two 260-Pin SO-DIMM up to 64GB
Dual Channel DDR5 5600MHz
BIOS
AMI SPI
Graphics
Controller
Intel® Iris® Xe Graphics
Feature
DX12, Open GL 4.6, Vulkan 1.2
HW Decode: HEVC/VP9/AV1/AVC/H.265/MJPEG
HW Encode: HEVC/VP9/AV1/AVC/H.265/MJPEG
Display
Stacked type VGA and HDMI from COMe eDP
HDMI from Jetson module
ITE IT6564FN DP HDMI/VGA converter from eDP
AI Accelerator
Interface
Nvidia Orin NX, up to 100 TOPS
Nvidia Orin Nano, up to 40 TOPS (optional Type A MXM supported)
Storage
External
1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request on MTH968)
Optional 2x 2.5” SATA tray kit, RAID 0/1 supported
Internal
M.2 2242/2280 M key on Jetson module (PCIe x4)
Expansion
Interface
1 x M.2 3042/3052 B key (PCIex2) and 1 x micro (or nano) SIM slot
1 x M.2 2230 E key (PCIe x1, USB 2.0)
2 x M.2 2242/2280 M key (SATA 3and PCIe gen3 x1 for NVMe)
1 x M.2 A key for DFI OOB
Ethernet
Controller
1 RJ45 GbE from COMe
1 RJ45 GbE from Intel i210
2x2 stacked RJ45 GbE ports from 4x Intel i210
Optional 2x 15W PoE via X103-PE30-48
LED
Indicators
1 x Power Status
1 x HDD activity
Front I/O
Ethernet
2 x GbE
2x2 stacked RJ45 GbE
USB
2 x USB 3.2 from Type 6 or 2 x USB 2.0 from Type 10
2 x USB 3.2
2 x USB 2.0 from Jetson module
Display
1 x VGA
1 x HDMI port with screw hole
DC in
1 x 3-pin power terminal block

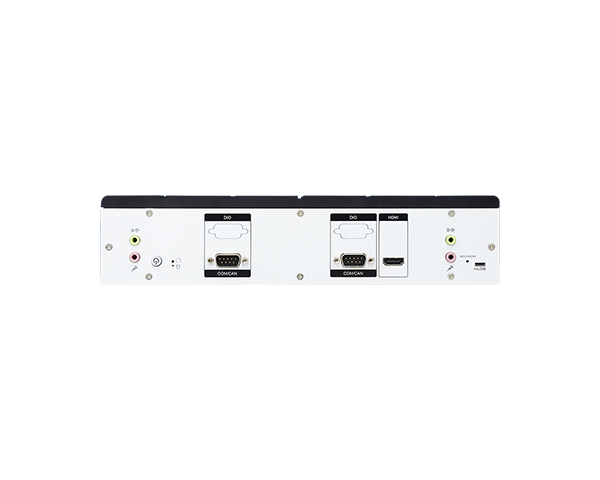

Rear I/O
Serial
1 x DB-9 RS232/422/485 port
1 combo DB-9 RS232/422/485/ CAN bus/ GPIO port
USB
1 x micro USB from Jetson module
Display
3 x DP++ ports
2 x HDMI port
Flank I/O
Antenna Hole
6 x antenna holes
Internal I/O
OOB
Support DFI OOB module
Security
TPM
TPM 2.0 on COMe
Power
Type
9-36V DC
Connector
1x 3-pin terminal block
RTC Battery
Rechargeable battery
OS Support
Microsoft
Windows 10, 11
Linux
Ubuntu 22.04
Environment
Operating Temperature
-20°C to 60°C (sku dependent)
Storage Temperature
-40°C to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall mount (mounting brackets and screws)
DIN mount by optional
Dimensions (W x H x D)
250 x 65 x 150 mm
Weight
< 3.5 kg
Standards and Certifications
Shock
· Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

· Non- Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
· Operation
IEC 60068-2-64 Test Fh: Vibration board-band random test
Random,2Grms @ 5~500 Hz, 30min.

· Non- Operation
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
Certifications
CE, FCC Class A, RoHS, UL 62368-1
IP Rating
IP20
Country of Origin
Country of Origin
Taiwan
