DT122-CR
Home Industrial Computers Performance Compact PC DT122-CR
  • 3rd/2nd Gen Intel® Core™ Desktop Box PC with Intel® QM77
  • Supports DDR3/DDR3L SODIMM up to 16GB
  • Up to 2x 2.5" or 1x 3.5" SATA drive bay
  • 1 HDMI, 2 DVI-I, 4 USB 3.0, 2 USB 2.0, 2 LAN, 1 COM
  • 3 independent displays
  • 7-Year CPU Life Cycle Support Until Q4' 17 (Based on Intel IOTG Roadmap)

Status : EOL

PCIe x16
HDMI
DVI-D
Mini PCIe
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

DT122-CR Related Tags

#Intel#Mini PCIe#PCIe x16#Windows#Linux#HDMI#DVI-I#DVI-D#VGA#DDR3L#RoHS Certification#CE Certification#FCC Certification

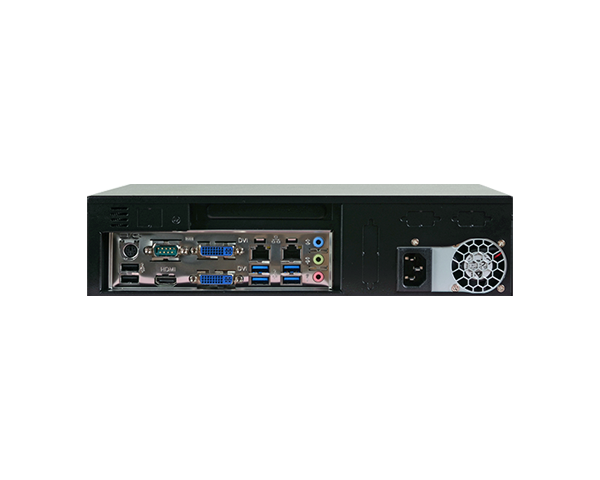

DT122-CR  Desktop Box PC
DT122-CR Desktop Box PC
System
Processor
3rd Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
2nd Generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W
Chipset
Intel® QM77 Express Chipset
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3/DDR3L 1066/1333/1600MHz SODIMM
Graphics
Controller
Intel® HD Graphics 4000
Display
1 x HDMI
2 x DVI-I (1 supports DVI-D signal)
HDMI and DVI display resolution up to 1920x1200
VGA display resolution up to 2048x1536 pixels with 32-bit color at 75Hz
Storage
External/Internal
Up to 2 x 2.5" or 1 x 3.5" SATA 3.0/2.0 Drive Bay
Expansion
Interface
1 x PCIe x16 or 1 PCI
1 x Full-size Mini PCIe (PCIe/USB)
Audio
Audio Codec
Realtek ALC886 5.1-channel
Ethernet
Controller
1 x Intel® WG82579LM PCIe with iAMT8.0 (10/100/1000Mbps)
1 x Intel® WG82574L PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mouse/keyboard)
Display
1 x HDMI
2 x DVI-I (1 supports DVI-D signal only)
Audio
1 x Line-out
1 x Line-in
1 x Mic-in
Buttons
1 x Power Button
1 x Reset Button
Cooling
Fan
1 x CPU Cooler
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Flex ATX
AC 100-240V, 3.5A, 150W
OS Support
OS Support
Windows 7, Windows 7 Embedded, Windows XP, Windows XP
Embedded, Linux Kernel 2.6
Environment
Operating Temperature
0 to 45°C
Storage Temperature
-20 to 60°C
Relative Humidity
90% RH at 45°C, 1 week
Mechanism
Construction
Front Panel: Aluminum
Rear Chassis: Sheet Metal
Mounting
Wall Mount: Type A, Type B
Dimensions (W x H x D)
300mm x 75mm x 217mm (W x H x D)
Weight
3.71 kg
Standards and Certifications
Shock
Operating: 3G peak acceleration (11 msec. duration)
Non-operating: 10G peak acceleration (11 msec. duration)
IEC 68-2-27 compliant
Vibration
Operating: 1G, 5~500Hz
Non-operating: 1.5G, 5~25Hz
IEC 68-2-64 compliant
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 DT122 system unit
1 CPU cooler
1 HDD drive bay kit
1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    DT122-CR
    Part Number :
    750-DT1220-200G
    Description :
    DT122-CR: CR100 RoHS
  • Model Name :
    DT122-CR
    Part Number :
    750-DT1220-210G
    Description :
    DT122-CR: CR100, RoHS, with 1 PCIe x16 expansion
  • Model Name :
    DT122-CR
    Part Number :
    750-DT1220-220G
    Description :
    DT122-CR: CR100, RoHS, with 1 PCI expansion
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU
    Part Number :
    785-CP988BML
    Description :
    CPU, Socket 988B, Long-term support, RoHS
  • Item Name :
    8GB DDR3L
    Part Number :
    785-RSOD38G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS
  • Item Name :
    4GB DDR3L
    Part Number :
    785-RSOD34G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS
  • Item Name :
    2GB DDR3L
    Part Number :
    785-RSOD32G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 2GB, RoHS
  • Item Name :
    1GB DDR3
    Part Number :
    785-RSOD31G
    Description :
    SODIMM, DDR3 Module, 1GB, RoHS
  • Item Name :
    3.5" 500GB HDD
    Part Number :
    785-H353T0B
    Description :
    3.5” SATA HDD, 500GB, RoHS
  • Item Name :
    2.5" 500GB HDD
    Part Number :
    785-H25500G
    Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    2.5" 320GB HDD
    Part Number :
    785-H25320G
    Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    2.5" 1TB SSD
    Part Number :
    785-S251TBG
    Description :
    2.5" SATA SSD, 1TB MLC, RoHS
  • Item Name :
    2.5" 512GB SSD
    Part Number :
    785-S25512G
    Description :
    2.5" SATA SSD, 512GB MLC, RoHS
  • Item Name :
    2.5" 256GB SSD
    Part Number :
    785-S25256G
    Description :
    2.5" SATA SSD, 256GB MLC, RoHS
  • Item Name :
    2.5" 128GB SSD
    Part Number :
    785-S25128G
    Description :
    2.5" SATA SSD, 128GB MLC, RoHS
  • Item Name :
    2.5" 64GB SSD
    Part Number :
    785-S25064G
    Description :
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-DT1220-100G
    761-DT1220-000G
    Description :
    DT122 Type A Wall Mount Kit for Top Cover, RoHS
    DT122 Type B Wall Mount Kit for Front Cover, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
