EC70A-SU

Industrial Computers Fanless Embedded System EC70A-SU
  • 6th Generation Intel® Core™ Fanless Embedded System
  • 4GB/8GB DDR4 memory onboard
  • 1x 2.5" SATA 3.0 drive bay
  • Supports 2 Mini PCIe for wireless application
  • Rich I/O ports: 2 Intel GbE, 4 COM, 4 USB 3.0
  • 15-Year CPU Life Cycle Support

Status : Launched

Wide-temp: -20~60°C
Wide Voltage: 15~36V DC-in
Fanless Design
4K2K Display
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

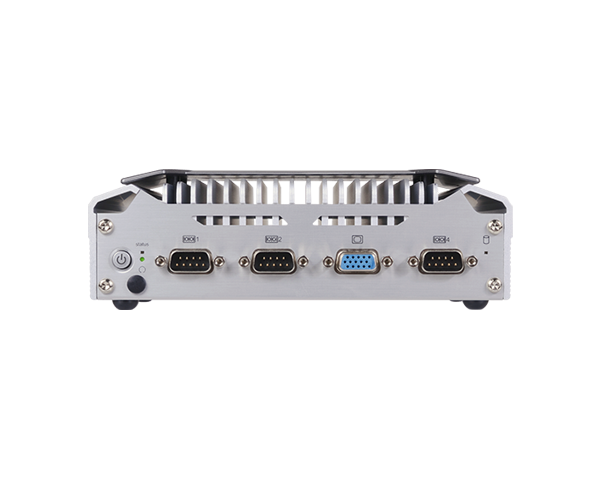

EC70A-SU Fanless Embedded System
EC70A-SU Fanless Embedded System
EC70A-SU Fanless Embedded System
System
Processor
6th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Memory
4GB/8GB Memory Onboard
Dual Channel DDR4 2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x HDMI
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
Dual Displays
VGA + HDMI
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x Full-size Mini PCIe (PCIe+USB)
1 x Half-size Mini PCIe (USB+PCIe or USB+SATA, PCIe/SATA is selected by jumper setting, USB+SATA by default)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Serial
2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS-232 (DB-9, COM 4, support 8-bit DIO by jumper setting)
Display
1 x VGA
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
1 x Wi-Fi Module Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9, COM 3)
USB
4 x USB 3.0 (type A)
Display
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 15~36V
Connector
DC Jack
OS Support
OS Support
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10
WES 7
WE8S
Environment
Operating Temperature
-20 to 60°C (wide-temp SSD or mSATA-mini)
0 to 50°C (general SSD or mSATA-mini)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA/DIN Rail Mount
Dimensions (W x H x D)
181.6mm x 57mm x 118.4mm
Weight
1.1 Kg
Standards and Certifications
Shock
Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 EC70A-SU system unit
Mounting screws for SATA drive
Mounting screws for Mini PCIe module
1 Quick Installation Guide
1 CD disk includes: Drivers / Manual
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC70A-SU4041-668
    Part Number :
    750-EC70A0-500G
    Description :
    Fanless, Intel Core i7-6600U, 1 HDMI, 1 VGA, 2 LAN, 4 COM, 4 USB, 8GB DDR4 onboard
  • Model Name :
    EC70A-SU4041-664
    Part Number :
    750-EC70A0-400G
    Description :
    Fanless, Intel Core i7-6600U, 1 HDMI, 1 VGA, 2 LAN, 4 COM, 4 USB, 4GB DDR4 onboard
  • Model Name :
    EC70A-SU4041-638
    Part Number :
    750-EC70A0-300G
    Description :
    Fanless, Intel Core i5-6300U, 1 HDMI, 1 VGA, 2 LAN, 4 COM, 4 USB, 8GB DDR4 onboard
  • Model Name :
    EC70A-SU4041-634
    Part Number :
    750-EC70A0-200G
    Description :
    Fanless, Intel Core i5-6300U, 1 HDMI, 1 VGA, 2 LAN, 4 COM, 4 USB, 4GB DDR4 onboard
  • Model Name :
    EC70A-SU4041-618
    Part Number :
    750-EC70A0-100G
    Description :
    Fanless, Intel Core i3-6100U, 1 HDMI, 1 VGA, 2 LAN, 4 COM, 4 USB, 8GB DDR4 onboard
  • Model Name :
    EC70A-SU4041-614
    Part Number :
    750-EC70A0-000G
    Description :
    Fanless, Intel Core i3-6100U, 1 HDMI, 1 VGA, 2 LAN, 4 COM, 4 USB, 4GB DDR4 onboard
Optional Items
  • Item Name Part Number Description
  • Item Name :
    1TB SSD
    Part Number :
    785-S251TBG
    Description :
    2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
  • Item Name :
    512GB SSD
    Part Number :
    785-S25512G
    Description :
    2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
  • Item Name :
    256GB SSD
    Part Number :
    785-S25256G
    Description :
    2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
  • Item Name :
    128GB SSD
    Part Number :
    785-S25128G
    Description :
    2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS
  • Item Name :
    64GB SSD
    Part Number :
    785-S25064G
    Description :
    2.5" SATA SSD, 64GB MLC, -40 to 85°C, RoHS
  • Item Name :
    32GB SSD
    Part Number :
    785-S25032G
    Description :
    2.5" SATA SSD, 32GB MLC, -40 to 85°C, RoHS
  • Item Name :
    128GB mSATA
    Part Number :
    785-MW128GMH
    Description :
    mSATA Card, 128GB MLC, -40 to 85°C, RoHS
  • Item Name :
    64GB mSATA
    Part Number :
    785-MW64GMH
    Description :
    mSATA Card, 64GB MLC, -40 to 85°C, RoHS
  • Item Name :
    32GB mSATA
    Part Number :
    785-MW32GMH
    Description :
    mSATA Card, 32GB MLC, -40 to 85°C, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    785-WIFIKT
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    120W Power Adapter
    Part Number :
    671-110003-100G
    Description :
    120W, 19V/6.31A, Level 6, RoHS
  • Item Name :
    60W Power Adapter
    Part Number :
    671-106011-000G
    Description :
    60W, 19V/3.15A, Level 6, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Wall Mount
    Part Number :
    761-EC8000-000G
    Description :
    EC700/EC800/EC70A Wall Mount Kit, RoHS
  • Item Name :
    VESA Mount
    Part Number :
    761-EC7000-100G
    Description :
    EC700/EC70A VESA Mount Kit, RoHS
  • Item Name :
    DIN Rail Mount
    Part Number :
    761-EC70A0-000G
    Description :
    EC70A DIN Rail Mount Kit, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

Small and Lightweight, but Powerful! Why Not? Based on 6th Gen Intel® Core™ i7/i5/i3 Processor

As a flawless combination of impressive stylish design and excellent computing capability,the EC70A/EC70B-SU Series brings a whole new concept to the IPC market. Based on the high-end 6th Gen Intel® Core™ i7/i5/i3 processors, it delivers outstanding processing capability in a fanless and compact enclosure. And it is designed for space-limited and compute- intensive solutions like smart factory, digital healthcare, and surveillance.

Small Size but Powerful

For satisfying the demands in space-limited applications, the size of the EC70A-SU shrinks almost 70% compared to traditional industrial computers, while it increases more than 50% computing performance.

4K2K High-Resolution

The compact EC70A/EC70B-SU series supports dual independent displays (VGA + HDMI). The HDMI comes in 4K2K high resolution, so users can take advantage of the enhanced and vibrant multimedia capabilities.

Industrial I/O Interfaces

With rich I/O interfaces covering 2 PoE GLAN and 6 high-speed USB 3.0 to connect to IP cameras, 8-bit Digital I/O connector, and 6 COM ports for legacy devices, the EC70B-SU enables a variety of industrial control applications

Wide Operating Temperature Support

With ruggedized construction, EC70A/EC70B-SU can survives a wide -20°C to 60°C operating temperature range to satisfy the demands of industries in extreme and harsh environments.

Covers a Wide Industrial Applications

Built with industrial-grade components inside and out, the 15~36V DC extended power input, and fanless design in a compact size make this scalable and cutting-edge solution suitable for demanding factory automation, transportation, and utilities & energy applications.
